HCM500B 3D Orientation Sensor Using For GPS Integrated Navigation /Laser Range Finder /Oceanography Measurement Instruments

Sponge & Cartons

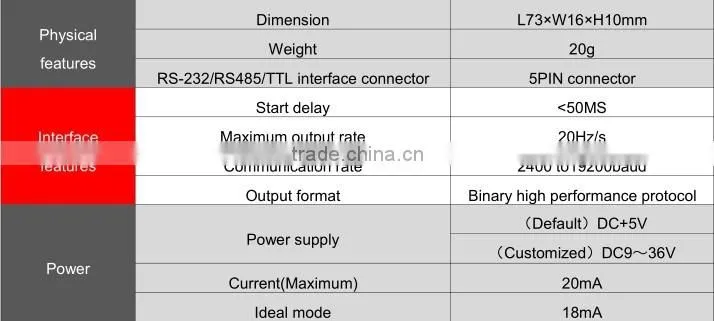

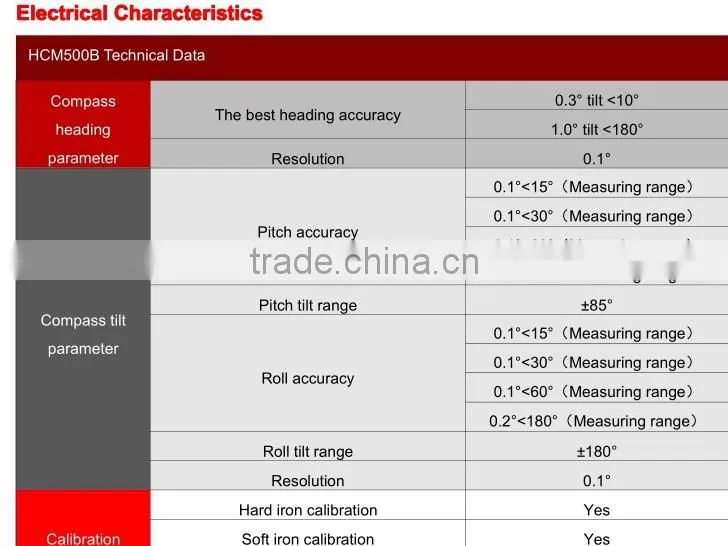

Specifications

HCM500 3d compass sensor seeking north
1:Heading accuracy:0.3 degree
2:tilt accuracy:0.1

 HCM500B  3D Orientation Sensor  Using For GPS Integrated Navigation /Laser Range Finder /Oceanography Measurement Instruments 0-360deg





General Description :

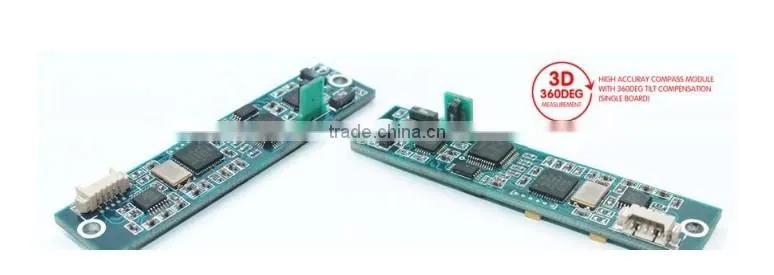

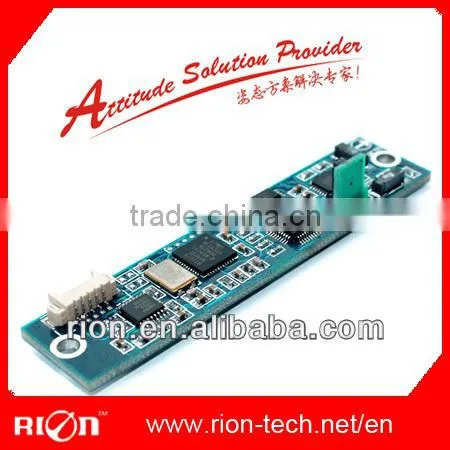

HCM500 is a high accuracy 3-Axis digital compass single board with 360°Dip angle compensation. Which uses advanced algorithms, with hard iron and soft iron corrections, to provide highly accurate heading information over its extra wide tilt range at latitudes up to 360°. The small size and low power requirements of the HCM500 allow it to fit into today’s size sensitive systems. These advantages make RION Corporation's HCM500 the choice for applications that require highest accuracy and performance anywhere in the world.

Features include an extra wide tilt range, high accuracy compass heading, low powerconsumption, large signal noise immunity under all conditions, and a large magnetic field measurement range in a small package.

The HCM500 combines USA patented Magneto-Inductive (MI) sensors and measurement circuit technology with a three-axis MEMS accelerometer for unparalleled cost effectiveness and performance. The magnetic sensors and accelerometers are calibrated to operate from -40 to 85°C; hence the measurement is very stable over temperature and inherently free from offset drift..



HCM500 adopts high-tech levels such as MCU, Water-proof, dust prevention and anti-corrosion PCB, import cable,wide temperature metal-clad ,and so on, to improve the stability and reliability.





Features:





1.Accuracy: 0.3 °~0.5°

2.Maximum Dip Angle: 360°

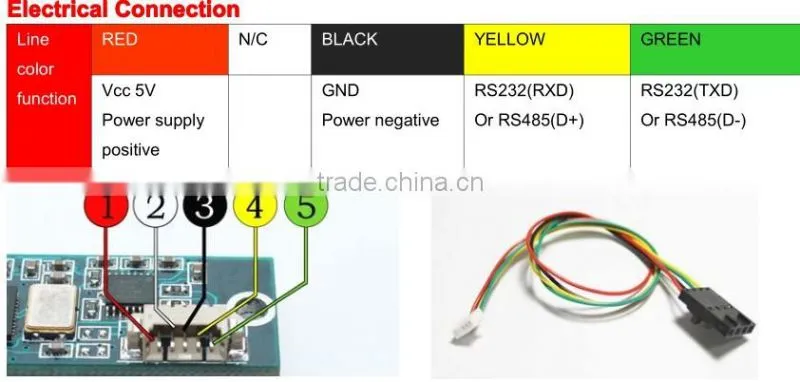

3.RS232/RS485 Optional

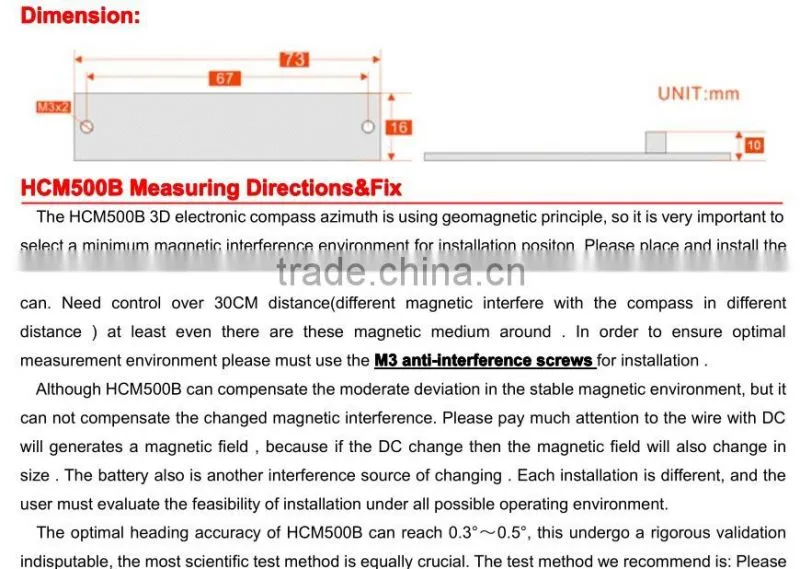

4.Small size: L72*16*12mm

5.Binary RS232 interface

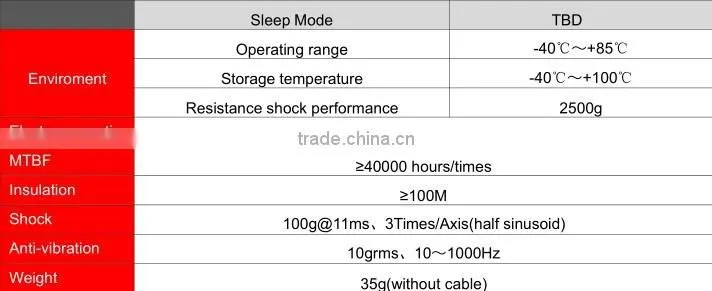

6.Widely working temperature: -40°C~+85°C

7.Small form factorLow power consumption

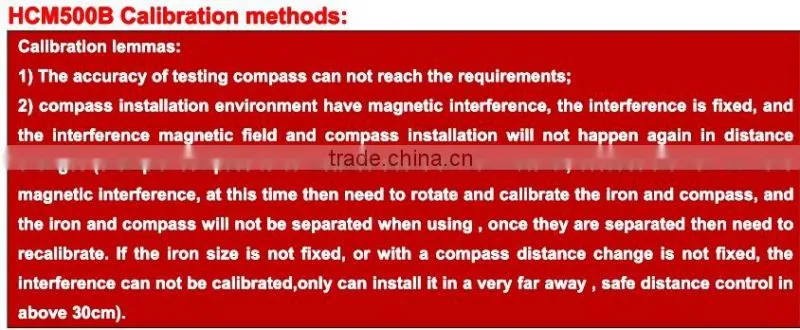

8.Hard and soft iron correction with quality of calibration score



Applications:





1.High performance ROV navigation

2.GPS system integration

3.Vehicle tracking

4.Remote terrestrial antenna direction indicators

5.Sonar targeting systems

6. 3-axis magnetic field sensing

7.Survey equipment

8.utopilot

9.Satellite positioning Search

10.Robotic systems
