HCM505B High Performance ROV Navigation 3D 3-axis Electronic Compass Sensor Module High Accuracy 0.3~0.5deg

in Cartons

Specifications

with 360 degrees tilt compensation electronic compass sensor, north finder
1:Heading accuracy:0.3 degree
2:tilt accuracy:0.1



  HCM505B High Performance ROV Navigation  3D 3-axis Electronic Compass Sensor Module High Accuracy 0.3~0.5deg



HCM505 is a  360deg all-attitude tilt compensation seeking north. Which uses advanced algorithms, with hard iron and soft iron corrections, to provide highly accurate heading information over its extra wide tilt range at latitudes up to 360 degrees. The small size and low power requirements of the HCM505 allow it to fit into today's size sensitive systems. These advantages make RION Corporation's HCM505 the choice for applications that require highest accuracy and performance anywhere in the world.



Features include an extra wide tilt range, high accuracy compass heading, low powerconsumption, large signal noise immunity under all conditions, and a large magnetic field measurement range in a small package.



The HCM505 combines USA patented Magneto-Inductive (MI) sensors and measurement circuit technology with a three-axis MEMS accelerometer for unparalleled cost effectiveness and performance. The magnetic sensors and accelerometers are calibrated to operate from -40 to 85 degrees celcuis; hence the measurement is very stable over temperature and inherently free from offset drift.
HCM505 adopts high-tech levels such as MCU, Water-proof, dust prevention and anti-corrosion PCB, import cable,wide temperature metal-clad ,and so on, to improve the stability and reliability.



Features:



1:Heading Accuracy: 0.3 degrees

2:Heading resolution:0.1 degrees

3:pitch accuracy:0.08 degrees

4:Pitch resolution:0.01 degrees

5:Roll accuracy:0.08 degrees

6:Roll resolution: 0.01 degrees

7:Power supply:5V

8:Current draw:29mA(Sleep mode:1mA)
9:Maximum Dip Angle: ±80 degrees

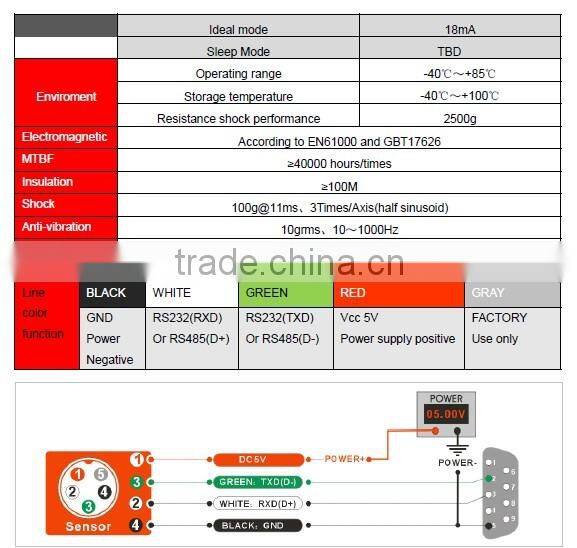

10:RS232/RS485 Optional

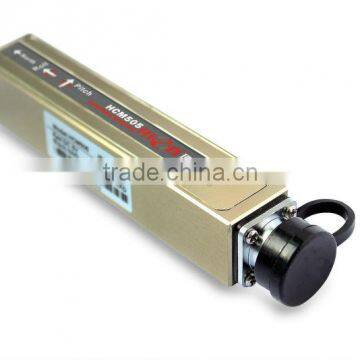

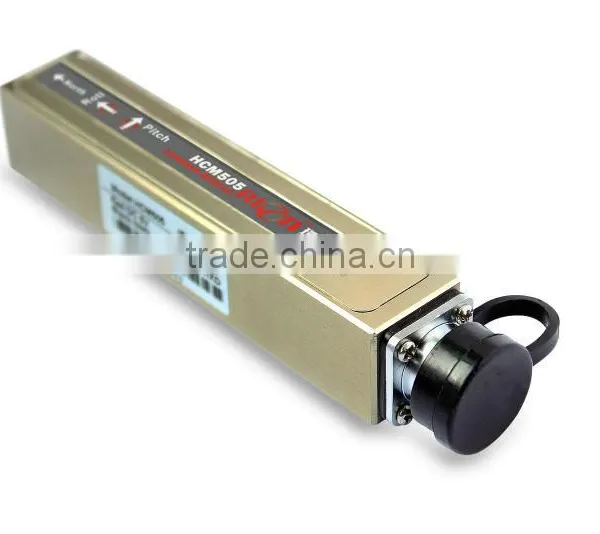

11:Small size: 113*18*18mm
12:Small form factor Low power consumption

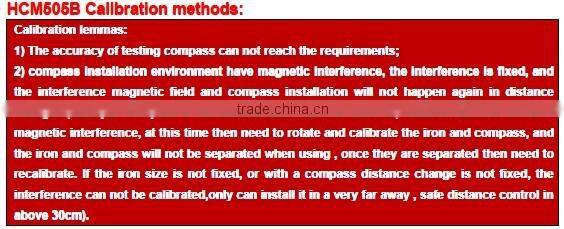

13:Hard and soft iron correction with quality of calibration score

14:Limited Tilt User Calibration

15:Widely working temperature: -40-+85 degrees celsius
16:Storage temp:-45-+125 degrees celsius

17:Lowest price



Applications:

1:High performance ROV navigation
2:GPS system integration
3:Vehicle tracking
4:Remote terrestrial antenna direction indicators
5:Sonar targeting systems
6:3-axis magnetic field sensing
7:Survey equipment
8:Autopilot
9:Satellite positioning Search
10:Robotic systems
11:Navigation system
