HCM505B Triaxial Magnetic Compass Sensor Module With Tilt Compensation Heading Accuracy 0.3~0.5deg

1pcs in a box with sponge inside , 50pcs/ctn

Specifications

Triaxial Magnetic Compass Sensor Module
1. Heading accuracy:0.3-0. 5deg
2. Roll angle : +/-180deg
3. Pitch angle : +/-90deg

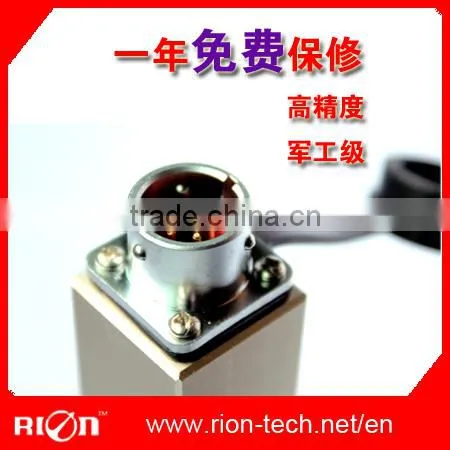

HCM505B Triaxial Magnetic Compass Sensor Module With Tilt Compensation Heading Accuracy 0.3~0.5deg



SPECIFICATIONS

Item No.:HCM505B

Description:High Accuracy 3D Digital Compass

Version:Ver.07











 HCM505B is a high accuracy 3D compass single board, elongated volume,the width is only 1.6CM, sealed in aluminum enclosure with IP67 water-proof grade, more suitable for drilling measurement. it uses advanced hard iron and soft iron calibration algorithm,it can still provide the high precision heading information in the roll angle 360 ° to any toolssurface .it has the characteristics of small and low power consumption, and more suited to today's miniaturization sensitive measurement system.

  HCM500B integrated patented three -axis fluxgate technology, real-time solver heading data through CPU , and use a three-axis accelerometer to proceed with heading compensation for a wide range tilt angle, belongs to the high-performance, high stabilitymilitary grade products , HCM500B with small size, low power consumption, widely used in the antenna securely, vehicle and system integration etc. many fields .



Features:



• Heading accuracy: 0.3°~0.5°
• Roll angle measuring range :±180°
• Tilt angle resolution: 0.1°
• Tilt angle accuracy: 0.2°
• With hard magnetic ,soft magnetic and angle compensation
• Size: L113×W20×H20mm
• Standard RS232/RS485/TTL output interface
• Wide temperature : -40°C~+85°C



Applications:

• Satellite antenna search satellite
•  Marine navigation surveying and mapping
• GPS integrated navigation
• Antenna servo control
• Gun emission system
• Infrared imager
• Laser range finder
• Map for plotter
• ROV underwater robot navigation
• Oceanography measurement instruments
• Special occasion robot
• Unmanned aircraft



























Related & Similiar Products :





Model : DCM302B 3D Electornic Compass Sensor

Roll / Pitch Tilt  Angle : +/-90deg

Heading Measuring Range : 360deg

Heading Accuray : 0.5~0.8deg

Power supply : DC5V /9-36V (Optional)

Size: L113*W20*H20mm





 Model : DCM301B 3D Electornic Compass Sensor Module (PCB board)

Roll / Pitch Tilt  Angle : +/-90deg

Heading Measuring Range : 360deg

Heading Accuray : 0.5~0.8deg

Power supply : DC5V

Size: L33*W27*H8mm









 Model : DCM260B 3D Electornic Compass Sensor

Roll / Pitch Tilt Angle  : +/-90deg

Heading Measuring Range : 0-360deg

Heading Accuray : 0.8deg

Power supply : DC5V /9-36V (Optional)

Size:L33*27*H8mm





 Model : DCM250B 3D Compass Sensor PCB Board

Roll / Pitch Tilt Angle : +/-90deg

Heading Measuring Range : 0-360deg

Heading Accuray : 0.8deg

Power supply : DC5V

Size: L33*W27*H8mm









Model : Low Cost DCM230B 2D Compass Sensor

Heading Measuring Range : 360deg

Heading Accuray : 0.1deg

Power supply : DC5V

Size:L50*W42*H15mm
