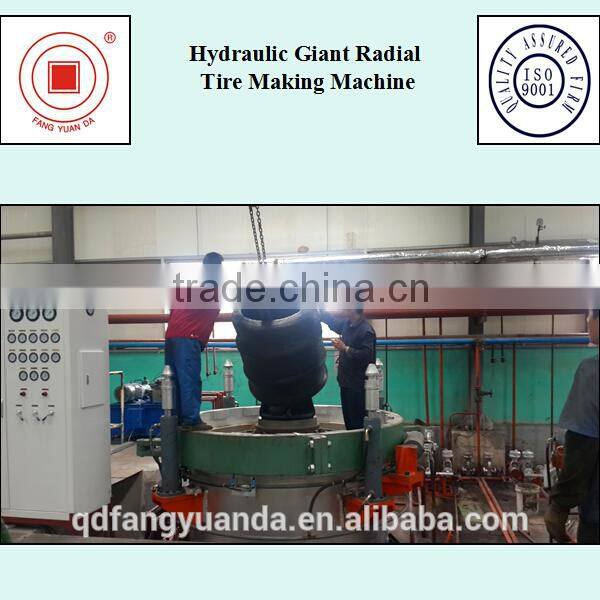

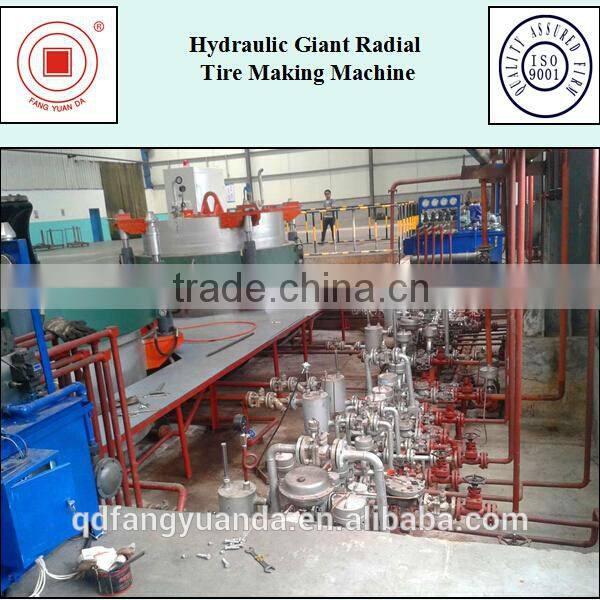

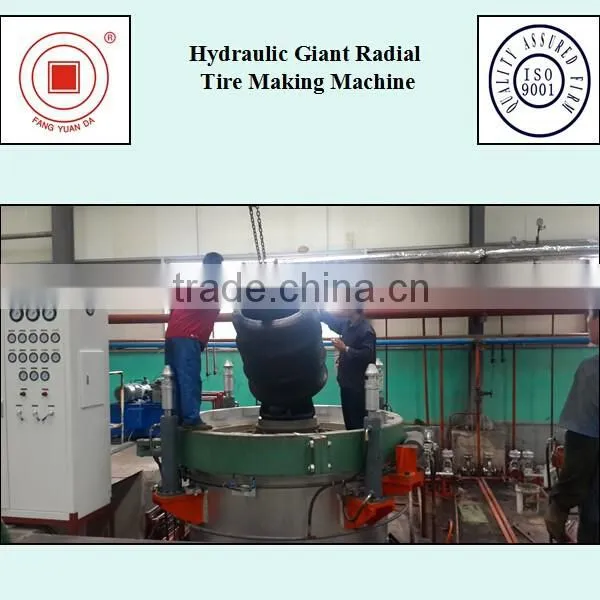

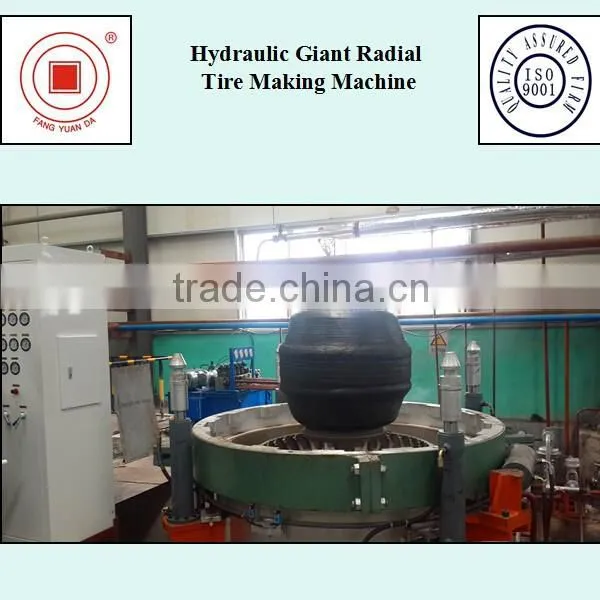

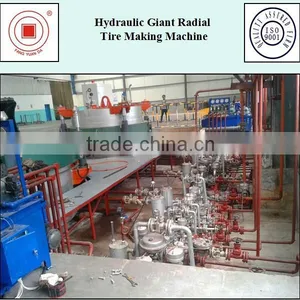

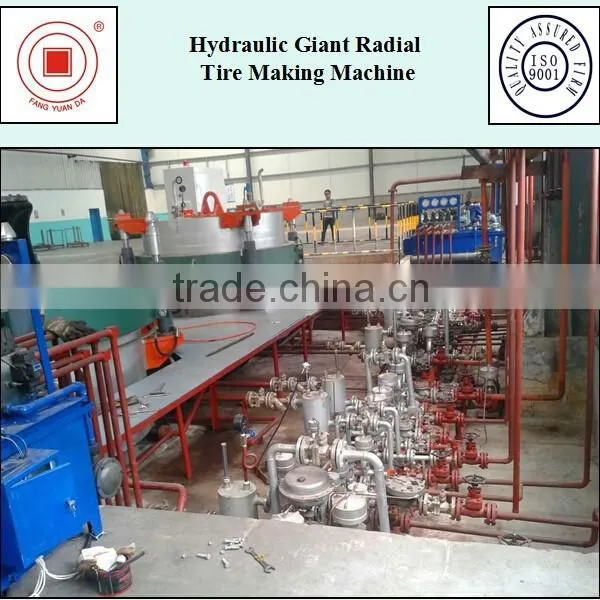

Hydraulic Giant Radial Tyre Making Machine
This Hydraulic Tyre Making Machine is used for curing all-steel giant radial tire, OTR, TBR, etc.
We have got PATENT for this tyre making machine in China.
Tyre Making Machine - Mechanism Features
- This tyre making machine for curing tyre adopts gantry moving mechanism, single mould and lock ring.
- The tyre making machine adopts vertical lift and translation mode for top mould and beam. The bladder control mechanism is B type.
- This tyre making machine is configured with segmented mould driving device.
- This tyre making machine adopts programmable controller and data processor as man-machine interface with OSD (on screen display), which make it visual, highly reliable, convenient change process, etc.
Tyre Making Machine - Characteristics
- This tyre making machine adopts imported sliding element for upper beam movement. The mould is aligned repeatedly and can be achieved high precision.
- Mould clamping and shaping is driven hydraulically. The clamping force and shaping force is adjustable.
- Heating type: Steamer Type. This can improve the quality of vulcanization and reduce the energy consumption.
- The control system adopts imported electrical components, high degree of automation control.
Tyre Making Machine - Applications
This tyre making machine for curing tyre is applicable to vulcanize giant rubber radial tyre. Using this tyre making machine, you can achieve the whole process of rubber tyre production from unvulcanized rubber raw embryo to a tyre, including installing embryos, forming and vulcanizing and unloading. The whole process can be achieved to single automatic cycle.
Tyre Making Machine - Specifications of Some Product
Item |
Unit |
Specification |
|||||||
|
In |
78 |
105 |
117 |
122 |
145 |
170 |
185 |
212 |
Steam Cabinet Number |
|
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Internal Diameter of Steam Cabinet |
mm |
2000 |
2670 |
2970 |
3100 |
3700 |
4300 |
4700 |
5400 |
Center Mechanism |
|
BOM |
BOM |
BOM |
BOM |
BOM |
BOM |
BOM |
BOM |
Diameter of Applicable Bead Ring |
In |
22-25 |
28-30 |
33-35 |
38-45 |
49 |
51 |
57 |
63 |
Maximum Mold Clamping Force |
KN |
8600 |
13800 |
18000 |
20000 |
23000 |
29000 |
35000 |
46000 |
Segment Mold Model Height |
mm |
900 |
950 |
1000 |
1200 |
1000 |
1200 |
1400 |
1600 |
Maximum External Diameter of Vulcanized Tyre |
mm |
Φ1520 |
Φ1860 |
Φ2020 |
Φ2380 |
Φ2680 |
Φ3200 |
Φ3580 |
Φ4000 |
FANGYUANDA is a manufacturing company specialized in producing tyre making machine, tyre vulcanizing machine, tyre mould and building drum, etc. We also provide the supporting service, including installation, maintenance, training, etc. We have the ability to develop powerful design and we can design according to customer’s request.
Our products of all-steel giant tyre vulcanizing machine (105-212 inch tyre vulcanizing machine) and all-steel giant segmented tyre mould (27R49-59/80R63) have got Chinese Patent and have a high market share.
- After more than 20 years of continuous efforts and development, with our strengths in China’ s rubber machinery industry, our business of complete sets machines have covered tyre making machine and tyre vulcanizing equipment and tyre mould industry.
- According to your drawings, we can manufacture quality equipment.
- We have the capability of establish the whole plant, technology transfer, technical advisory services and transformation.
- In order to ensure and improve the quality of our export products, we take various effective methods to track and supervise each procedure from raw materials procurement, manufacturing, commissioning and inspection during each steps.
- We own GB/T19001-2008/ISO 9001: 2008 quality management system certification and get Chinese Patent of all-steel giant tyre vulcanizing machine and segment mold by cooperating with Qingdao Science and Technology University and Nanjing Industry University.
1. Are you a trade company or manufacturer?
We are a manufacturer located in Qingdao City, Shandong Province, China. We have accumulated more than 20 years' manufacturing experience in tyre mould, tyre vulcanizing machine, tyre building drum, tyre making machine, etc.
2. Do you have own export license?
Yes, we have our own export license and we started exporting in 2008. We have exported our equipments to
Belgium, America, Brazil, India, Korea, Sri Lanka, Iran, Ethiopia, and many other countries.
3. Does your company accept OEM/ODM?
Yes, we have more than 20 years' OEM and ODM experience. You can send us your drawings, we can design and produce as your request.
We welcome your visiting to our factory for further discussion.
