Home > Packaging & Printing > Machinery for Packaging Supplies > Blister Packaging Machine > Honey Jam Chocolate Automatic Blister Packing Machine

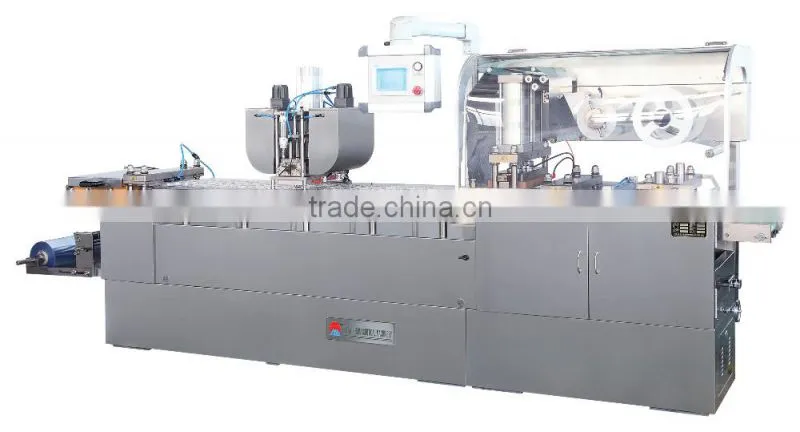

Honey Jam Chocolate Automatic Blister Packing Machine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DPB-350 Chocolate Blister Packaging MachineNegotiableMOQ: 1 Unit -
Perfume Blister Packing Machine for CarNegotiableMOQ: 1 Unit
-
Automatic Fragrance Packing MachineNegotiableMOQ: 1 Unit
-
DPB-250 Chocolate Flat Plate Blister Packaging Machine (Chocolate Packing Machine)NegotiableMOQ: 1 Set
-
Flat Plate Blister Packaging MachineNegotiableMOQ: 1 Unit
Condition
New
Application
Beverage, Chemical, Commodity, Food, Medical
Automatic Grade
Automatic
Driven Type
Mechanical
Voltage
380v/50hz
Power
6.2KW
Place of Origin
Zhejiang, China
Brand Name
ANTAI
Model Number
DPB-250
Dimension(L*W*H)
2900*720*1550
Weight
1600KG
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
This Honey Jam Chocolate Automatic Blister Packing Machine is suitable for packaging chocolates, biscuits, perfume, essence, facemasks etc with AL/PL, Al/Al, PL/PL materials. It is equipped with a touch screen control system and frequency converter, with characterized by higher automation and easy operation. It is popular equipment for the foodstuff and cosmetics, particularly for those who are to make their own career.
1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life.
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble,easy maintenance. (The body can be manufactured separately in order to easily transport the machine into workshop)

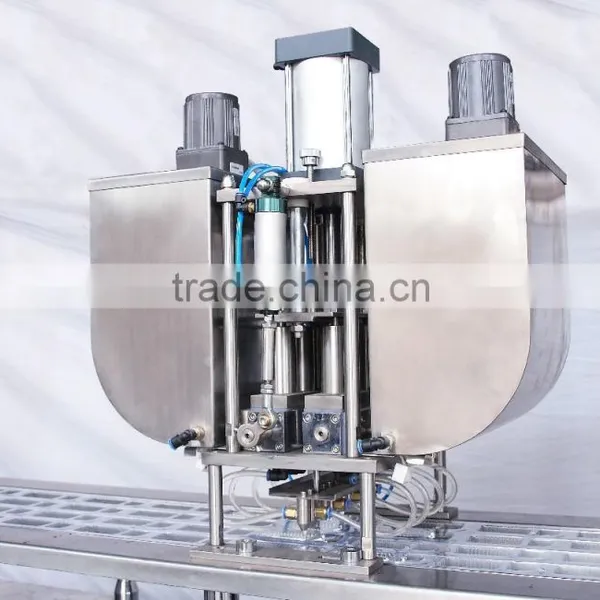

6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.
Notes: 1. It can be added register sealing device with cursor trace.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life.
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble,easy maintenance. (The body can be manufactured separately in order to easily transport the machine into workshop)
6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.
Notes: 1. It can be added register sealing device with cursor trace.
| Cutting Frequency (Times/min) | 6-30 |
| Capacity (10 thousand pcs/h) | 3.5-23 |
| Max. Forming Area and Depth(mm) | 240×150×26 |
| Stroke (mm) | 40-160 (customized) |
| Standard Plate(mm) | 80×57 (customized) |
| Air Pressure (Mpa) | 0.4-0.6 |
| Air supply | ≥0.3 m³/min |
| Total Power | 380V/220V 50Hz 6.2kw |
| Main Motor Power (kw) | 1.5 |
| PVC Hard Pieces(mm) | 0.150.5×250 |
| PTP Aluminum Foil(mm) | 0.02-0.035×250 |
| Dialysis Paper(mm) | 50-100g×250 |
| Mould Cooling | tap water or recycling water |
| Overall Dimensions(mm) | 2900×720×1550(L×W×H) |
| Weight (kg) | 1600 |
