ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery

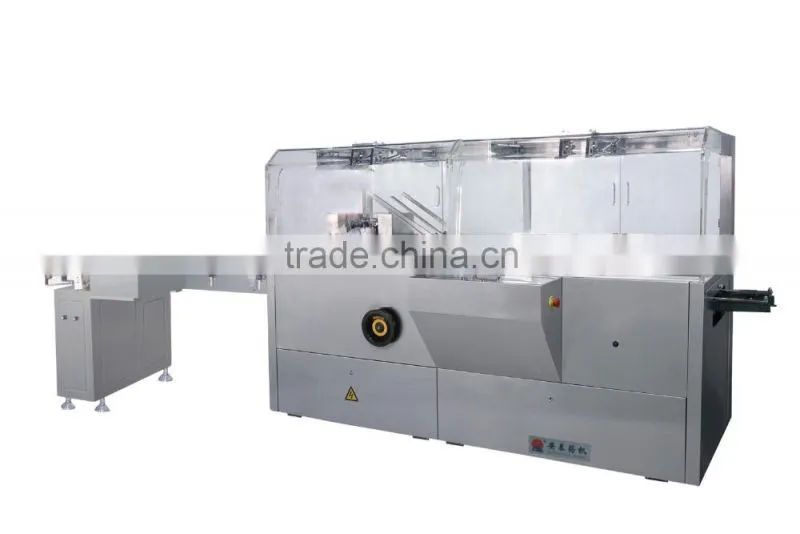

ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical
Automatic Grade Automatic
Driven Type Electric
Place of Origin Zhejiang, China
Brand Name ANTAI
Model Number ANTZ-100
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Packaging Material Other, wooden case

ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery



This Automatic Cartoning Machine is suitable for cardboard case packaging of blister package for blister package and similar package. It consists of direction folding (1-4 folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.

ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing MachineryANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery

1. International famous brand of electric components such for PLC touch screen, frequency inverters etc.

2. Adopt human-machine operation system.

3. Automatically displaying device for trouble, speed and finished products counting.

4. Automatic detection and rejection device for lacking of blisters/goods or leaflets.

5. Stability performance with lubricate setting and controlling.

Product Description





ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery

Item



Parameters

Encasing speed



30-100box/min

box

Quality requirement

250-350g/m2

Dimension range (L x W x H)

(55-180)mm x (30-85)mm x (15-50)mm

Leaflet

Quality requirement

50-65g/m2

Unfolded leaflet specification

(80-300)mm x ( 70-210)mm

Folded leaflet specification(1-4)

(70-210)mm x (20-40)mm

Compressed air

Working pressure

0.5-0.7mpa

Air consumption

120-160L/min

Power supply

220v 50hz

motor power

0.75kw

Machine dimension

2100 x 880 x 1800(mm)

Machine weight

1200kg

ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery

 ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery
Packaging & Shipping

ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery

ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery
Certifications



 ANTZ-100 Automatic Cartoning Machine /Boxing Machine/Encasing Machinery
