High Speed Automatic Terrazzo Tile Making Machine For Sale
US$ 1 - 40,000
/ Set
1 Set(Min. Order)
- Qingdao Port
- T/T
You May Like
-
Good Quality Cement Terrazzo Color Tile Making Machine
-
Terrazzo Tile Machine / Terrazzo Tile Making Machine
-
Widely Used Terrazzo Floor Tile Making Machine
-
Concrete Terrazzo Floor Tile Making Machine Price
-
Terrazzo Floor Tiles Making Machine On Sale
-
New Design Terrazzo Floor Tile Making Machine For Sale
Product Details
| Condition | New | Type | Other, Tile Forming Machine | |
| Brick Raw Material | Concrete | Processing | Other, Terrazzo Tile Making Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 4-6 pcs / min | Place of Origin | Henan, China | |
| Brand Name | TongLi | Model Number | 3040, 4050 , 5060 | |
| Voltage | 220V/380V | Power | 9.25kw/9.5kw | |
| Dimension(L*W*H) | 2700*1600*2480mm | Certification | CE ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Speed Automatic Terrazzo Tile Making Machine For Sale

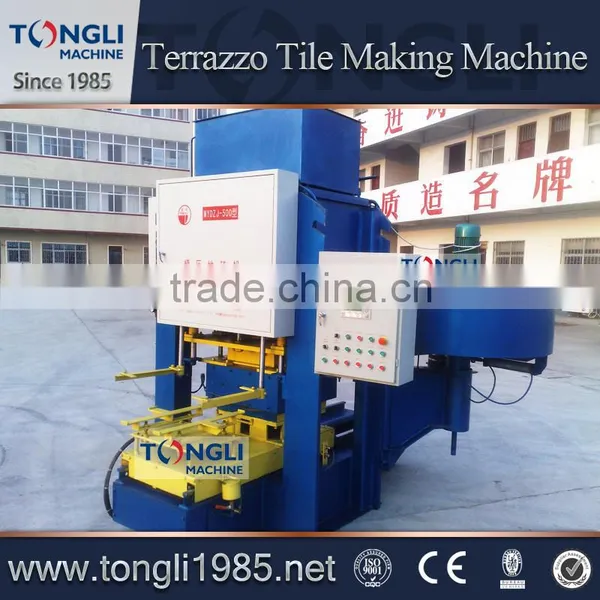

| Introduction of terrazzo floor tiles machine |
| The terrazzo floor tiles machine is researched and produced by Tongli Machinery independently,it has used the high speed filter-pressing principle of the raw materials,wear-resisting and accurate mold. After the mixer machine,the terrazzo tile can be be produced by the high pressure. It is featured by high production efficiency, high automaticity,programme controlling, and the products have many advantages,such as high density,high intensity,low permeability,accurate appearance size, and so on. Morever, terrazzo tile machine uses the PLC control program,which is very advanced in the world, for these reasons, it is considered as the advanced equipment which integrates machinery,hydraulic pressure,pneumatic and computer control system. |
| Capability Feature of terrazzo floor tiles machine | |
| √ | Initiated in the domestic industry, lead the trend of the times, and contribute to society. |
| √ | High automaticity, easy and simple to handle,high production efficiency. |
| √ | Low cost, low labor intensity,low consumption,no pollution, no dust. |
| √ | It just need 2-3 persons to operate the complete equipment, and the production is 3000 pcs/class. |
| √ | Products: 300×300 mm,400×400mm,500×500mm,600×600mm. The thickness can be adjusted easily as you want. |
| √ | Accurate appearance size,high intensity,high density,and low percentage of damage. |
| √ | Good flexural strength, high abrasive resistance,good anti-skid performance, long-lasting,and elegant taste. |
| √ | .The terrazzo tile is featured by diversiform pictures, vivid flower pattern, various colors,high density,high intensity,good anti-skid performance,etc.It can also replace the granite tile and marble tile, and mainly be used to lay the sidewalk of the city, plaza ground,and indoor ground, can considered as the optimal ground surface materials. |
| √ | The raw materials are cement,stone dust,and gravel, which is very cheap and easy to find. |

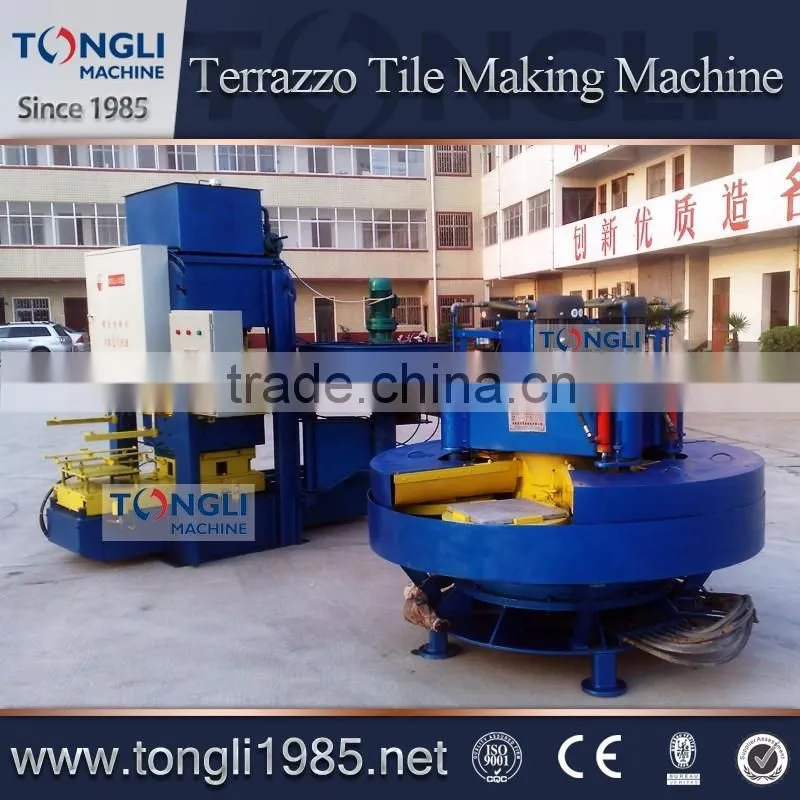

| Consist of terrazzo floor tiles machine | |
| √ | Terrazzo floor tiles machine |
| √ | Bucket elevator |
| √ | Grinding mixer |
| √ | Constant feeder |
| √ | Tile molds |
| √ | Steel pallets |

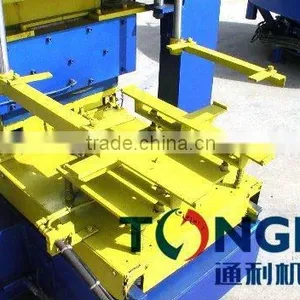

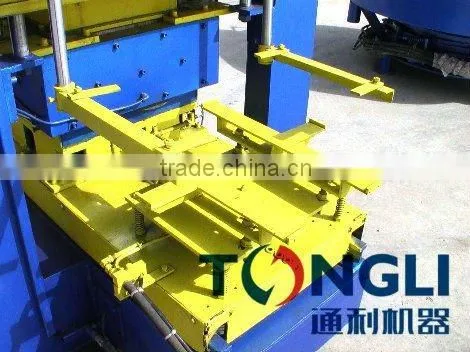

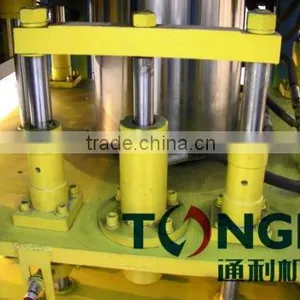

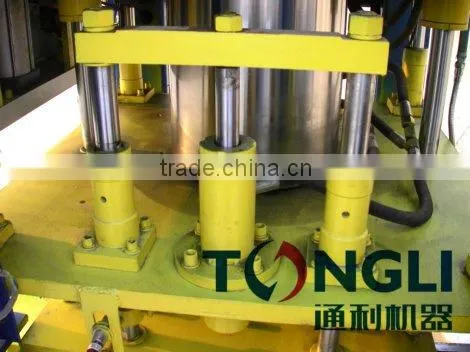

| Detailed production of terrazzo floor tiles machine |
| |
| |
| |
| |

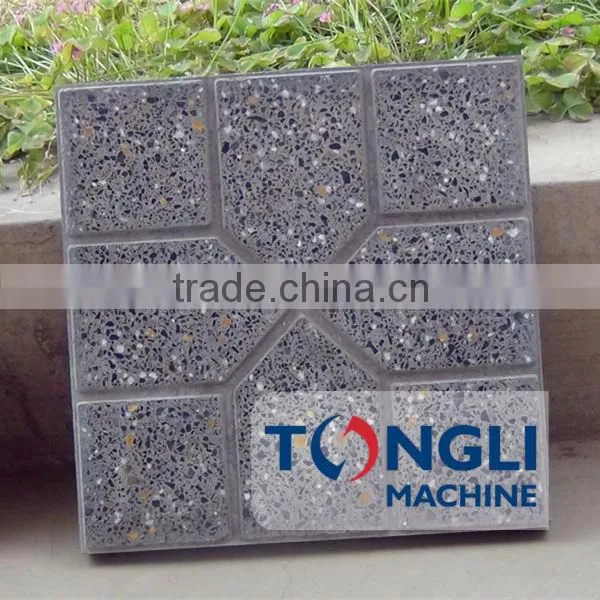

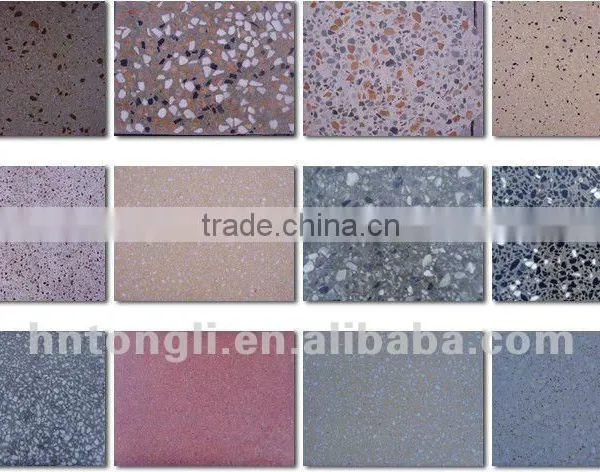

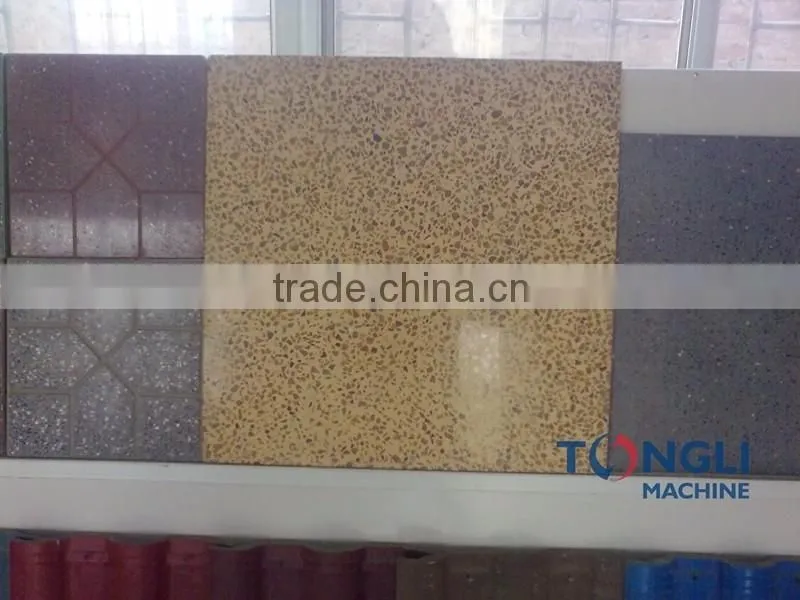

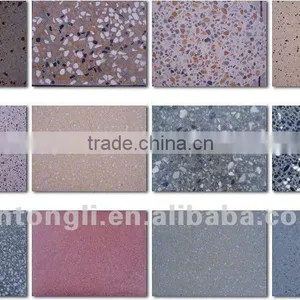

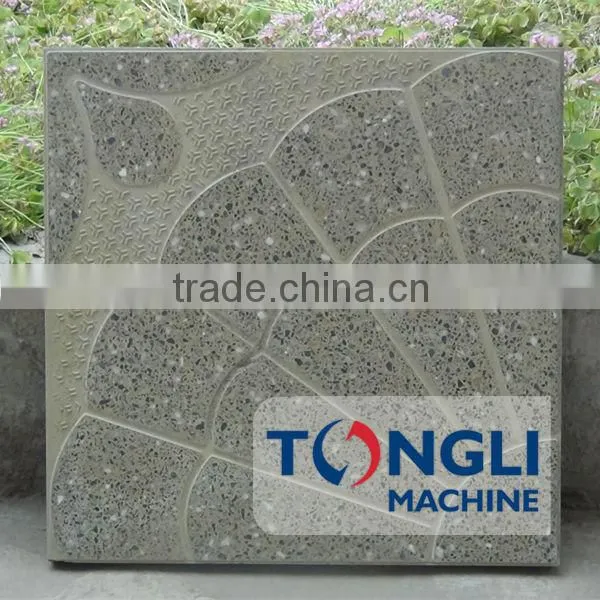

| Final terrazzo tiles after polished |
|
|
|
| Technical parameters of terrazzo tile making machine | ||||
| No. | Specification | TL3040 | TL4050 | TL5060 |
| 1 | Molding pressure | 150T | 250T | 350T |
| 2 | Production capacity | 4-6 pcs/min | 3-5 pcs/min | 3-5 pcs/min |
| 3 | Total Power of terrazzo tile machine | 15.5kw | 17.5kw | 19.5kw |
| 4 | Weight | 6.2T | 6.9T | 7.8T |
| 5 | Tile size | 300X300mm,400X400mm | 400X400mm,500X500mm | 500X500mm,600X600mm |

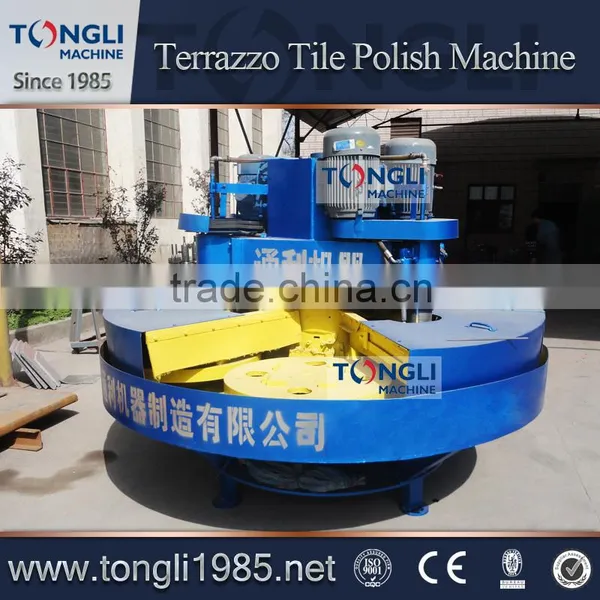

| Technical parameters of terrazzo tile polishing machine | ||||
| No. | Specification | TL3040 | TL4050 | TL5060 |
| 1 | Quantity of polishing head | 5 | 5 | 5 |
| 2 | Polishing production capacity | 4 pcs/min | 4 pcs/min | 4 pcs/min |
| 3 | Total Power of tile polishing machine | 20kw | 27.5kw | 27.5kw |
| 4 | Weight | 2.6T | 3.8T | 4.9T |
| 5 | Tile size | 300*300,400*400mm | 400*400,500*500mm | 500*500,600*600mm |
| Company profile |
Henan TongLi Machinery Manufacturing Machinery Co., Ltd is founded in 1985,which is located in Zhengzhou mechanical processing industry park and covers an area of 27000 square meters,the building area is 15000 square meters. Our company integrates advanced technology, research, development, production and sales. This is a adhere to the modern enterprise scientific management method, adhere to seiko manufacturing, continuous innovation, has developed to a shinning pearl of our country's machinery manufacturing industry. Our company is a environmental protection enterprises in the production of Tile and brick machinery, crushing equipment .The machines are widely used in mining, chemical industry, metallurgy, building materials industries. Our products are very popular at home and abroad, exported to more than 20 countries and regions. |
|
|
|
| Certificate and honors |
| As a professional manufacturer , we have got CE,BV,ISO certificates, and we have got some patents. We focus on products' design,production,quality,service, our customers' requirements always come first ! |
|
