Through BV,CE,ISO certification price concrete block machine new technology,brick block forming machine for sale
- 10 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | About 69120 block /class | Place of Origin: | Henan, China | Brand Name: | TONGLI |
Model Number: | QTJ4-35,QTJ4-40.QTJ6-20,QYT6-15B,QYT8-15B | Voltage: | 380v | Power: | 4.4~34.5kw |
Dimension(L*W*H): | 3950*1900*2850mm(Different models, different sizes) | Certification: | BV,CE,ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Through BV,CE,ISO certification price concrete block machine new technology,brick block forming machine for sale
Main Introduction and Characters of light weight concrete block machine:
1.Super-strong steel structure, made of extensive imported original parts, ensuring more stability and reliability for the main machine body.
2.The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, ensure the best operation effect.
3.High-efficient and super-strong vibration system, computer-control follow pressure of the hydraulic system, realize vertically thus greatly increase product compactness and mold-box service life.
4.Multi use, strong performance, the many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block.
5.Magazine and feed unit: closed belt type conveyor strict control the material quantity of sub magazine, feed adapts to the using. The above design prevent the concrete liquefy early under infection of remaining vibration, than the intensify of product is ensured.
6.Force material feed unit: The whipping fork works rapidly during the feed box moves to up of the mold box, finally the equalization of material fees and the consistency of the product’s intensify are insured.
7.Enlarge the available area of the work table: The appliance of the advanced vibration technology causes the larger scale of the work table, it makes that the productivity is increased greatly, the output of honeycomb type block will be increased 20% than the similar domestic-made machine.
8.Particular vibration type: The computer controls the pressure and following rate of hydraulic system; vertival synchro-vibration; frequency conversion; brake. Transforming the over quantity of hydraulic oil to a vibrating activated force, thereby basically eliminating the energy waste.
Production of light concrete block machine:
This production line can be fully and semi-automatic,which is suitable for big and medium sized plant investment.Semi-automatic block making machine line with cuber and curing system, which is in high technology,simple deploy,and smoothly work procedures.It insures the automatic production from material feeding to the block stacking. Fully automatic block making machine line includes finger car and steam curing system.It is in highly automatic and the fully automatic of the procedures,The material feeding mixer,conveying,curing and stacking can be realized.
The advantage of brick
Lightweight: Porosity achieve 70% to 85%, volume density is generally 500 ~ 900kg/m3, as 1/5 of general concrete the 1/4of clay, the 1/3 of hollow brick, and similar with wood can float in water. It can reduce building weight, reduction in the cost of integrated building.
Fireproof: Most of the major raw materials is inorganic materials, so it has good fire resistance, and do not emit harmful gases when meet fire. Fire 650 degrees, as a refractory material, the thick up of 90mm walls can reach to 245 minutes fire resistance, 300mm thick up wall can reach to 520 minutes fire resistance.
Sound insulation: Due to a unique porous structure, so it has a sound absorption capacity. The sound absorption capacity can reach of 10mm thick wall up to 41 db.
Insulation: As the material inside has a large numbers of the pores and porous, which has a good thermal insulation properties. The Thermal conductivity is 0.11-0.16W/MK, as 1/4-1/5 of brick. Typically, the insulation effect of 20cm thick aerated concrete wall is equivalent to 49cm thick solid brick walls ordinary.
Permeability: Result of material by the composition of many independent small pores, the moisture absorption is slow, in the volume of absorbent is 5 times of clay saturation do. When used in the bathroom, the wall can be treated to interface directly paste tiles.
Anti-seismic: The same building structure, improve the two seismic than the brick level.
Green: Manufacturing, transportation, all use the process of pollution, to protect arable land, saving energy, is one kind of a green building material.
Durability: material strength is stability, in the specimens tested after one year of atmospheric exposure; the intensity increased by 25%, and remained stable after ten years.
Shortcut: it has good machinability, can be sawed, planed, drilled, nailed, and available appropriate as bonding of adhesive material, so create favorable conditions for building construction.
Economies: An integrated lower cost than using more than 5% of solid clay bricks, and can increase the usable area, greatly enhance the utilization of floor space.
Equipped Power | 9.6kw | ||||||
Weight | 1.5 t | ||||||
Moulding Cycle | 40 s | ||||||
Brace Dimension | 850×450×40mm | ||||||
Overall Dimension | 1580×1100×2100mm | ||||||
Operation Standard | GB/T8533-1998 | ||||||
Type | Size (mm) | Feed Size (mm) | Hollow Rate % | Brick/mould | Shift Production (8hour) | ||
190 | 390×190×190 | 15 | 48 | 4 | 3280 | ||
240 | 390×240×190 | 15 | 52 | 3 | 2466 | ||
140 | 390×140×190 | 13 | 43 | 5 | 4110 | ||
120 | 390×120×190 | 11 | 40 | 6 | 4932 | ||
90 | 390×90×190 | 10 | 40 | 8 | 6576 | ||
Standard Brick | 240×115×53 | 20 | hollow | 21 | 17262 | ||
hollow | 240×115×90 | 10 | 46 | 9 | 7398 | ||
Carrier Size:850×450×25mm Host Machine Motor:4.4Kw |

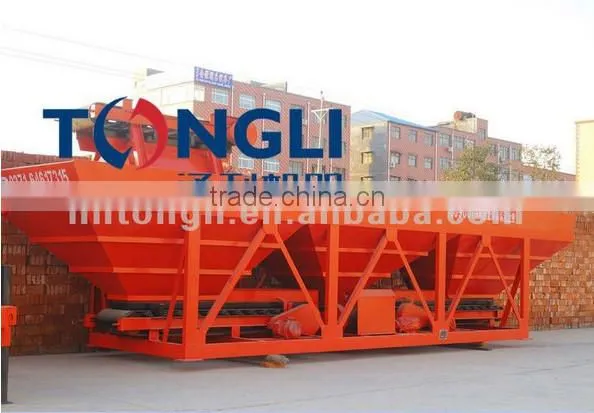

Dosing machine

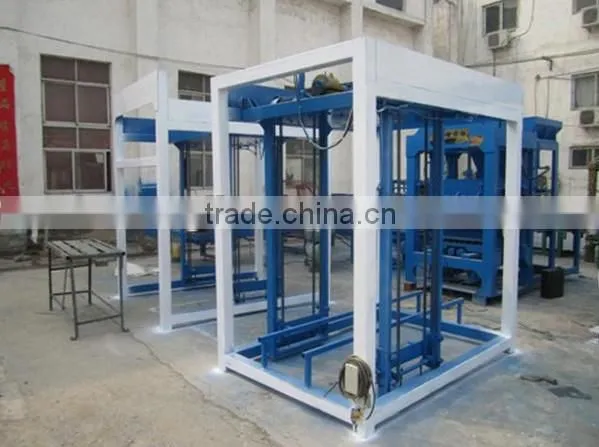

Auto stacker machine
Operation cabinet
The work flow of brick:
(1) Material → (2)Activation → (3)Batching
↓
(6) Moulding ← (5) Conveyance ← (4) Mixing
↓
(7) Palletization → (8) Curing → (9) Delivery |
The raw material of brick
The sample of the brick
Our concrete block making machine has ISO,BV,CE,national patents certificates
Henan Tong Li Machinery Manufacturing Machinery Co., Ltd is founded in 1 9 8 5,which is located in Zhengzhou mechanical processing industry park and covers an area of 27000 square meters,the building area is 15000 square meters.Our company integrates advanced technology,research,development,production and sales,which is adhering to the modern enterprise scientific management methods, seiko manufacturing, continuous innovation, and develops to a powerful company in Chinese machinery manufacturing industry filed.The company is a machinery corporation which specialized in producing series of scrap metal crusher,brick machine,tile machine and other relevant equipments.It is widely used for mining industry,chemical industry,metallurgy industry and building materials industry.Our products are very popular at home and abroad,which have been sold to many cities at home and have exported to abroad countries,such as Kazakhstan,India,United Arab Emirates,Malaysia,Zimbabwe and South Africa.With unique arts technology, we can make special machines, which are received by customers very well.In the future,we will continue to develop the broader overseas market.Our company regards products’ quality as enterprise's life.Main parts and wearing parts of our products all use wear-resistant materials and advanced processing technology, which make the durability of equipments longer, so the reputation at home and abroad are raising.
1.We offer different types of brick machines, small, semi-automatic and fully automatic. and make all kinds of size of moulds, according to customer requirements
2. We have 20 years experience
3.Exported to more than 30 countries in the world
4.Professional factory: we are manufacturer, specializing in manufacturing block machines, mixers for 20 years.
5.Competitive price with good quality
6.Our workers will test the machine for making blocks before we send it out, So we can guarantee the quality.
If you are interested in products, please send me an enquiry, or chat with me directy,as soon as I saw immediately I will reply to you.
1.We offer different types of brick machines, small, semi-automatic and fully automatic. and make all kinds of size of moulds, according to customer requirements
2. We have 20 years experience
3.Exported to more than 30 countries in the world
4.Professional factory: we are manufacturer, specializing in manufacturing block machines, mixers for 20 years.
5.Competitive price with good quality
6.Our workers will test the machine for making blocks before we send it out, So we can guarantee the quality.
1.Q: Can this machine make my block?
A: We will design suitable molds according to customers' drawing/picture of blocks.
2.Q: What is your payment term?
A: T/T,L/C, Escrow or others.
3.Q: what is your delivery time?
A: Normally with delivery time within 15 days after deposit.
4.Q: What is your minimum order quantity?
A: one set
5.Q: How about your packing and shipping?
A: Suitable for shipping, usually 20/40 feet container
