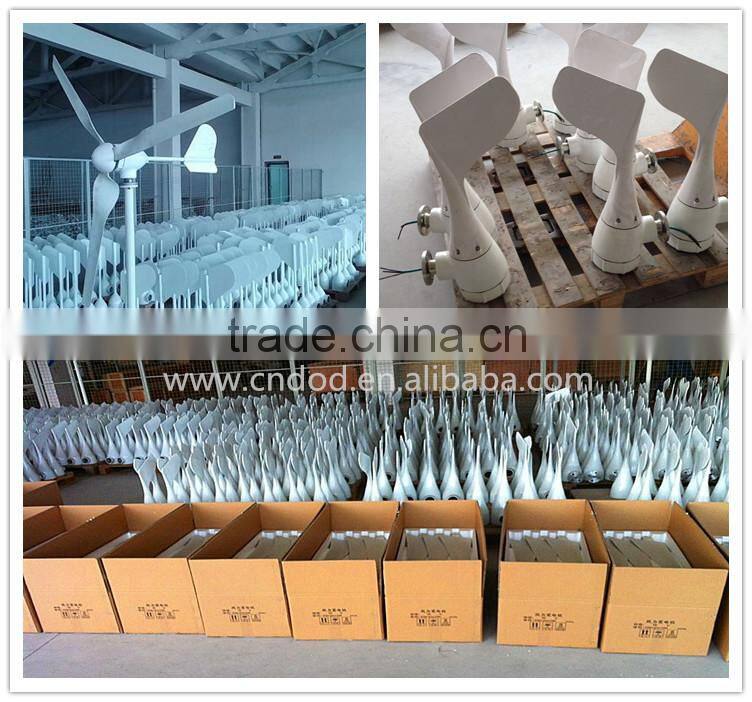

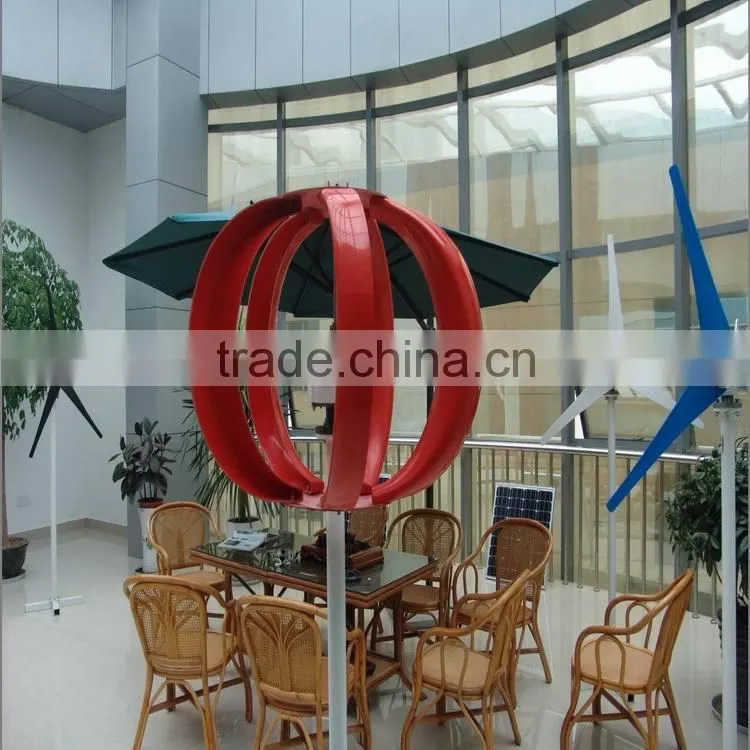

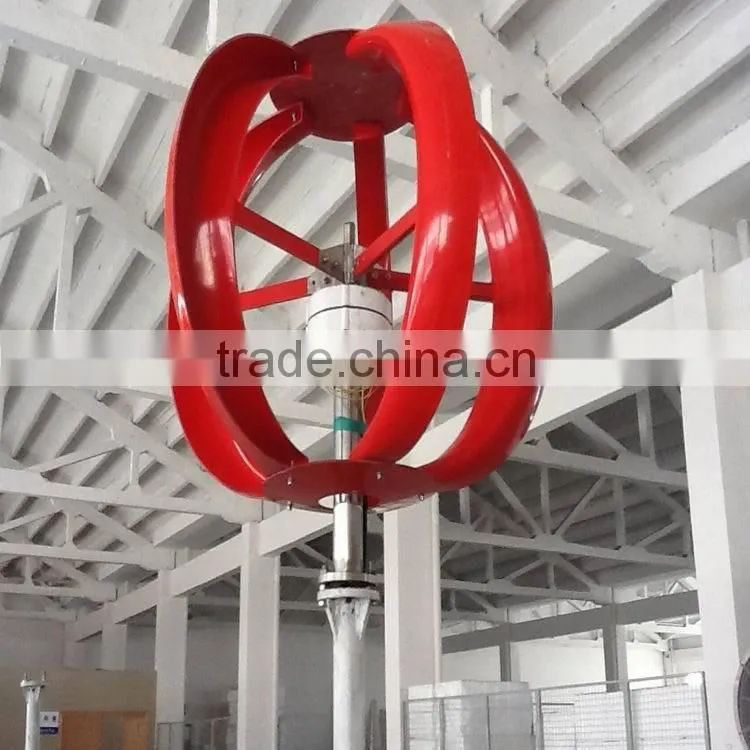

100W 3 Blades Vertical Axis Wind Turbine Generator

US$ 270 - 350 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

DOD

Model Number:

DNE-V100

Yueqing Dod Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/shanghai/shenzhen etc

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name DOD

Model Number DNE-V100

Type Wind Power Generator

Specifications

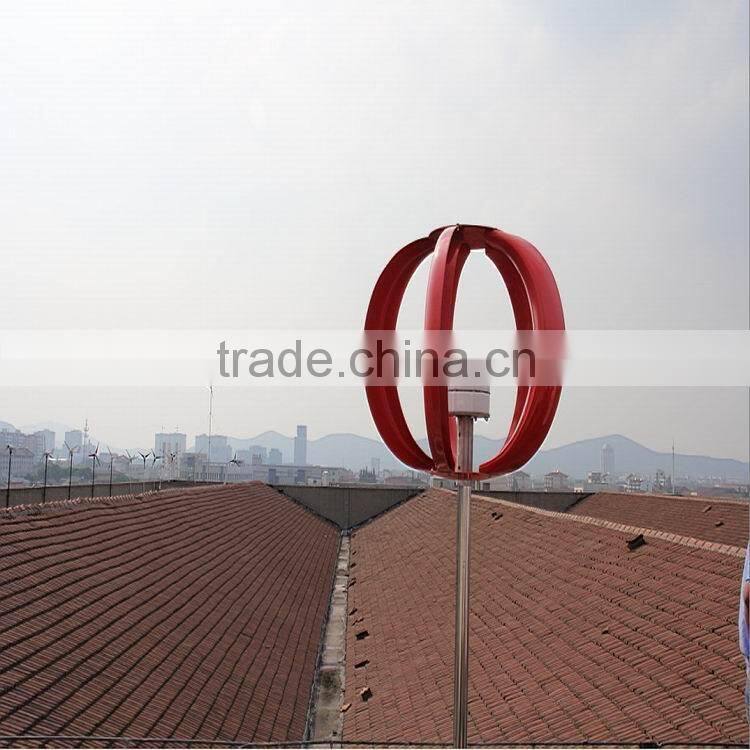

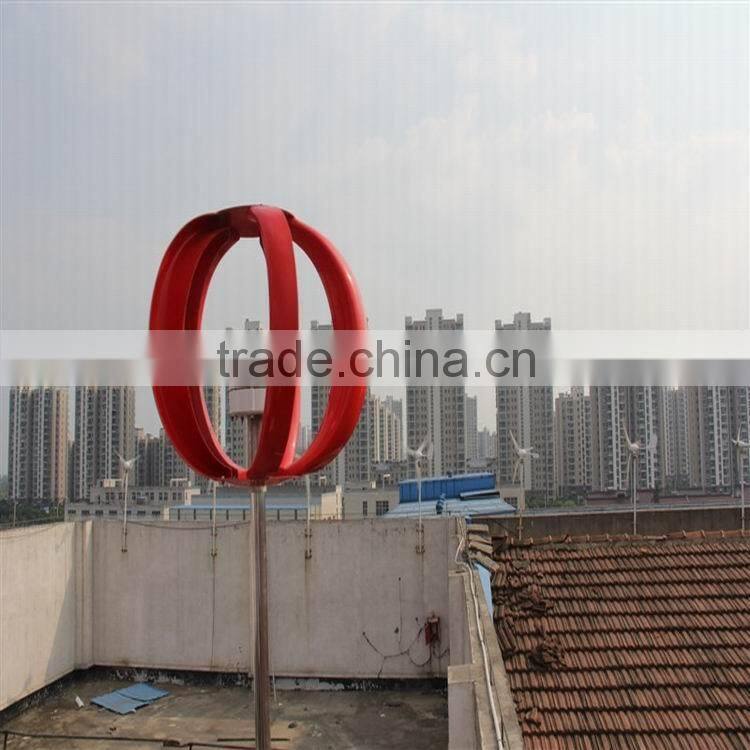

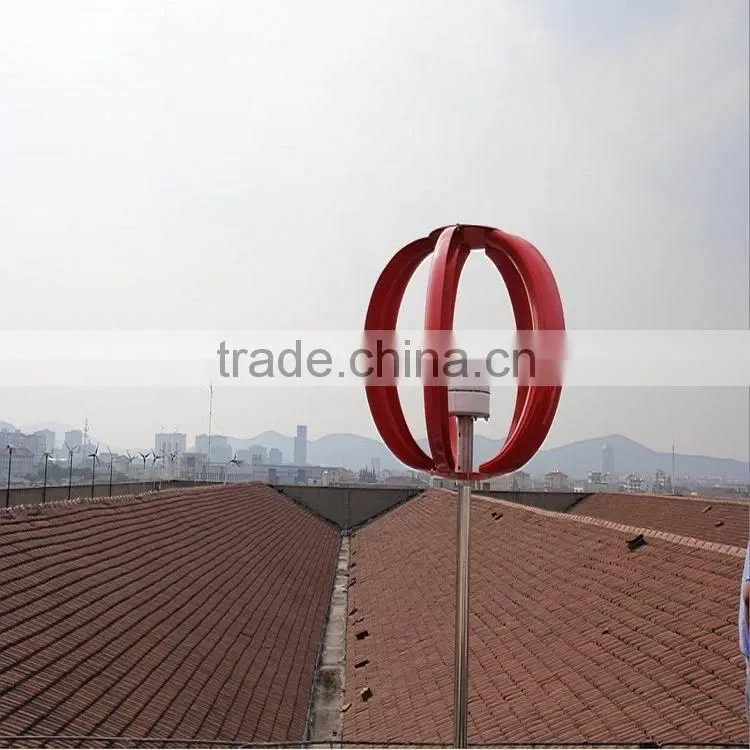

Vertical Axis wind turbines
1. CE certification .
2. low start wind speed
3. low noise

100W 3 Blades Vertical Axis Wind Turbine Generator

Product Description

Ourstanding Advantages : Vertical Axis wind turbines

CE certified for "Small Wind Turbine with High Reliability".
ISO certified for "Design, Development and Manufacture of Small Wind Turbines".
low mechnical noise, high wind resistance, high efficiency permenent magnet generator .
Low start-up speed,high wind power utilization, light,cute, low vibration.
Human-friendly design,easy to install and maintain.
Blades using reinforced glass fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.
Using patented permanent magnet generator and special stator, it effectively reduces torque resistance and guarantees the stability .

Specification : Vertical Axis wind turbines

Model	DNE-V100		DNE-V200		DNE-V300
Rated power	100W		200W		300W
Max power	130W		220W		310W
Rated voltage	12/24V		12/24V		12/24V
Start-up speed	1.3m/s		1.3m/s		1.3m/s
Rated wind speed	10m/s		11.5m/s		13m/s
Survival wind speed	45m/s		45m/s		45m/s
Top NW	16kg		17kg		18kg
Wheel diameter	0.6m		0.8m		0.8m
Number of blades	5
Blades material	Reinforced glass fiber
generator	Three phase ac permanent magnet generator
Control system	Electronic magnet
lubrication	Lubrication grease
Working temperature	-40℃-80℃
FOB shanghai	USD$350	USD$420		USD$525
