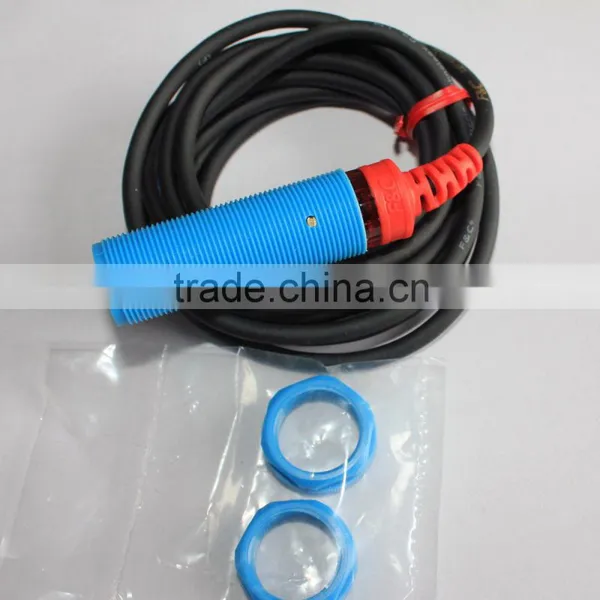

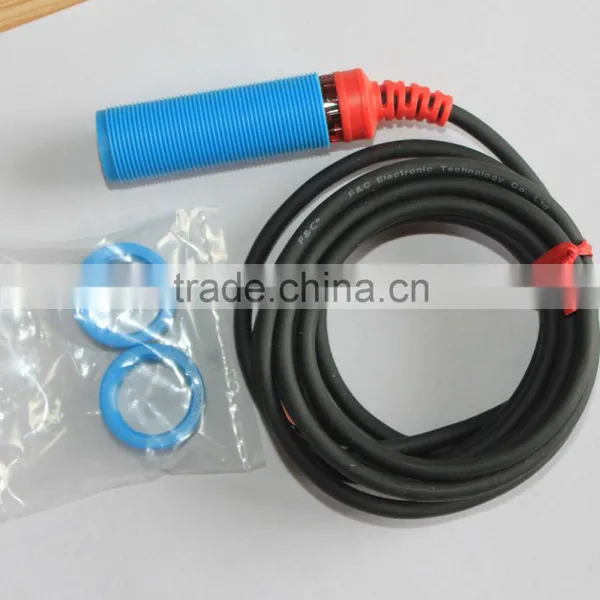

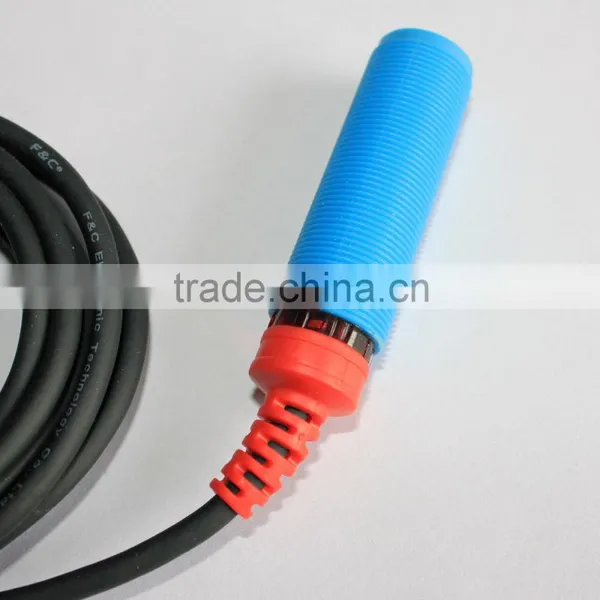

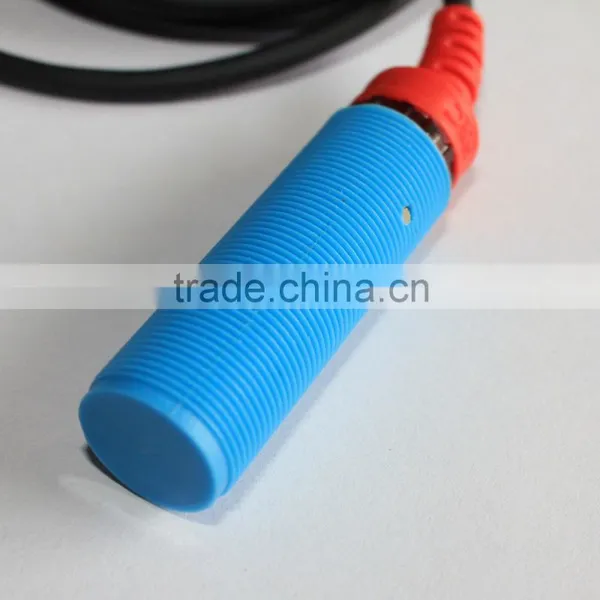

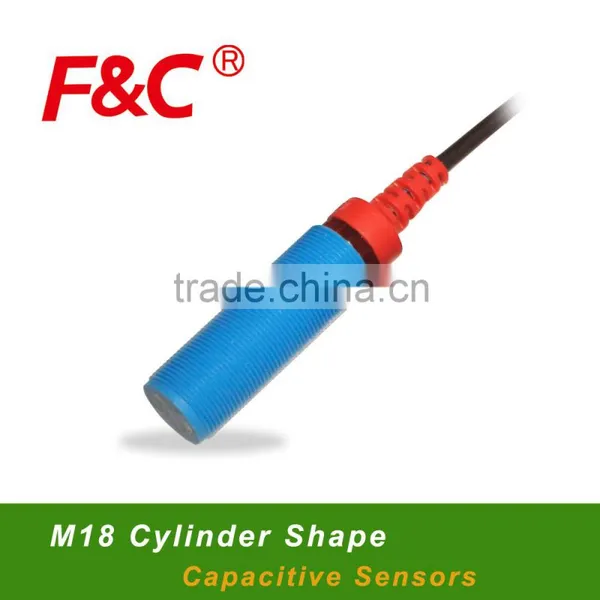

FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range.

FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. thumbnail-1
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. thumbnail-2
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. thumbnail-3
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. thumbnail-4
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. thumbnail-5
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. thumbnail-6
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. photo-1
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. photo-2
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. photo-3
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. photo-4
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. photo-5
FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range. photo-6
US$ 20 - 30 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FKC1810
Contact Supplier Request Quote Chat Now
F&C Sensing Technology (Hunan) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number FKC1810
Usage Position Sensor
Theory Inductance Sensor
Output Switching Transducer

 Part Number:



FKC1810-N      NPN.NO

FKC1810-N2    NPN.NC

FKC1810-P      PNP.NO

FKC1810-P2    PNP.NC



Can be offered 150mm cable with a male connector type



  • Three Visual direction, convenience checks;
  • Detection of liquid level and non-metallic objects;



Models FKC1810 series
Standard sensing object
 metal/non-metal
Response friquency
 DC:600Hz
Hysteresis
 within 1O% sensing distance
Operating voltage
 DC:10~30VDC±10%
Current consumption
 DC:≤8mA No—Load
Load currents
 DC:30V 200mA Max
Leakage currents
 DC:≤1.1mA no-Load
Residual votage
 DC:≤1.5VDC No-load
Operating temperature
 -20°C~+70°C
Material
 ABS
Wiring method
 φ3×2M/3-wires
Protection degree
 IP66

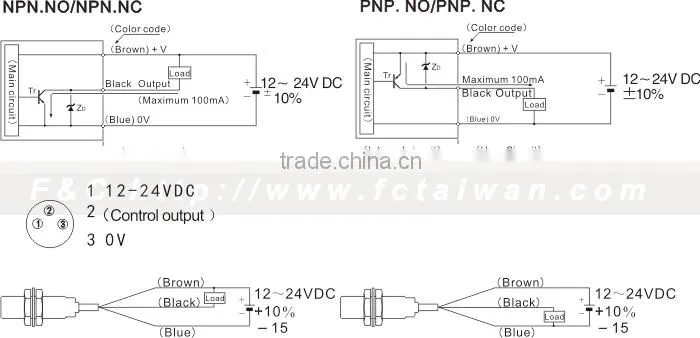

Diagram



 FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range.





FKC1810 Series M18 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, 10mm Sensing Range.
