Inductive Proximity Sensor F3C-12EN04 Series, M12, Short Housing Type, 12~24v DC, 5v DC Proximity Sensor Can be Offered.
US$ 5 - 10
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3C-12EN04-N/P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC OfferedUS$ 5 - 10MOQ: 20 Pieces -
F&C F3C-08ES01 Series M8, 12~24v DC Switching Transducer, Short Housing Type, Flush Proximity TransducerUS$ 5 - 10MOQ: 20 Pieces
-
M8 F&C F3C-08KS01Series Proximity Position Sensor, 2 Years Warranty, 360 Degree LED View, Flush Sensor.US$ 5 - 10MOQ: 20 Pieces
-
Inductive Proximity Sensor F3C-18KS05 Series, M18 Cylindrical Inductive Sensor, DC12~24v, 3-wire, 2m Soft Cable.US$ 5 - 10MOQ: 20 Pieces
-
Inductive Sensor F3C-18KN08 Series, M18 Cylindrical Inductive Sensor, Can Be Customized 5v DC or 2-wire Type.US$ 5 - 10MOQ: 20 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
F3C-12EN04-N/P
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer
Product Description

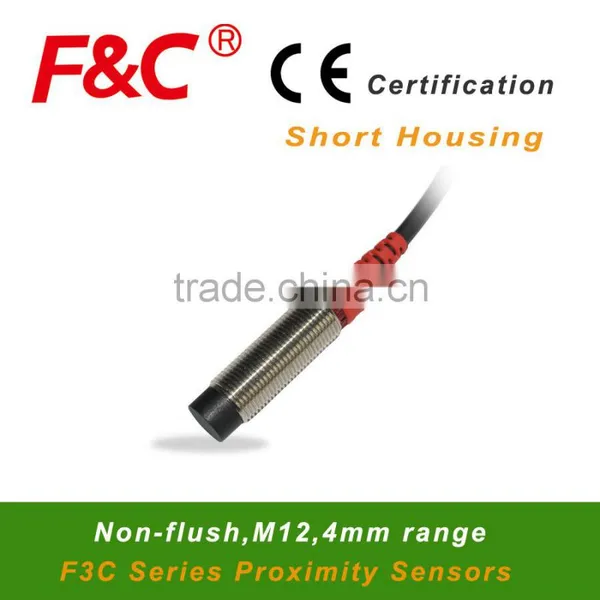

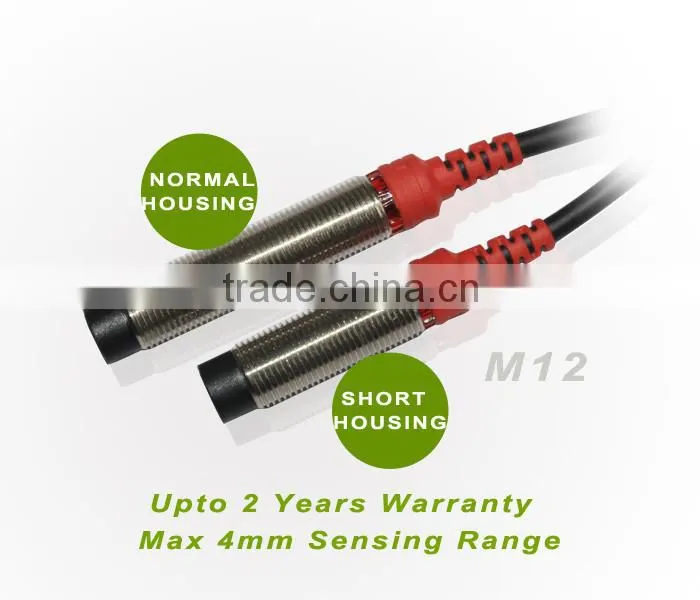

F3C series Proximity sensor

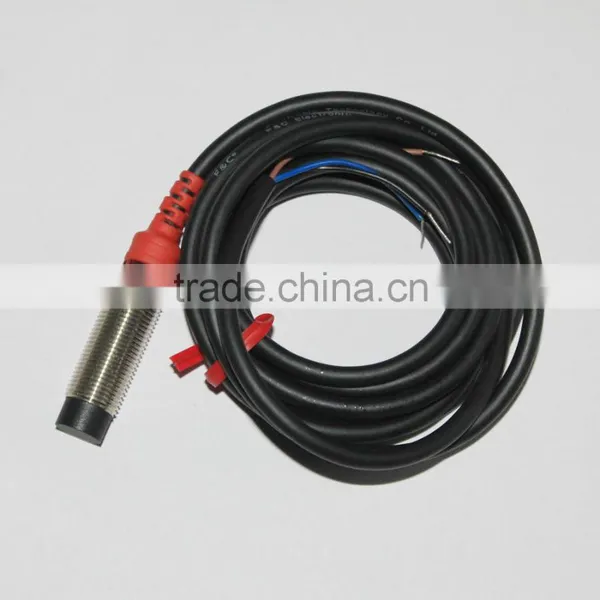

1) 2M soft PUR cable;

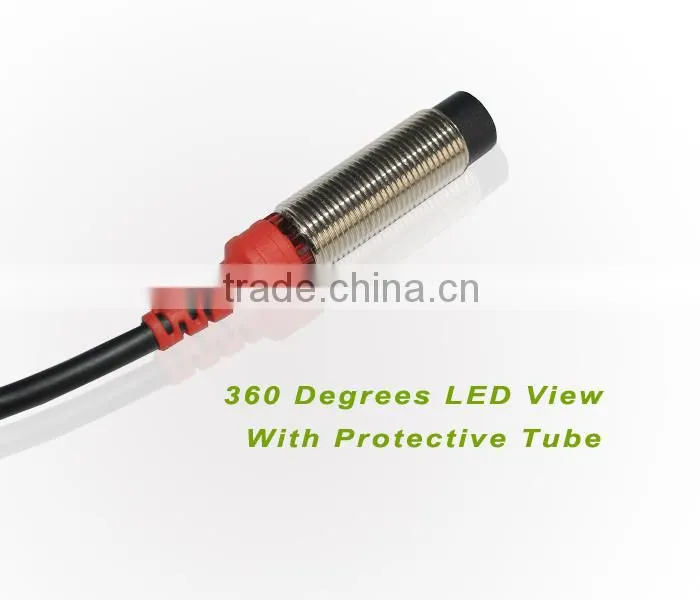

2) 360 degrees LED view;
3) With red protective tube for protecting cable;
4) Support for customizing, 5V DC offered.
| Discriptions | Part Numbers | Output | Sensing Range | Detected Object | Cable |
| M12/Non-flush/Short Housing | F3C-12EN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ4×2M/3-wires |
| F3C-12EN04-N2 R2M | NPN.NC | ||||
| F3C-12EN04-P R2M | PNP.NO | ||||
| F3C-12EN04-P2 R2M | PNP.NC |
| Response frequency | 1000Hz/800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |
