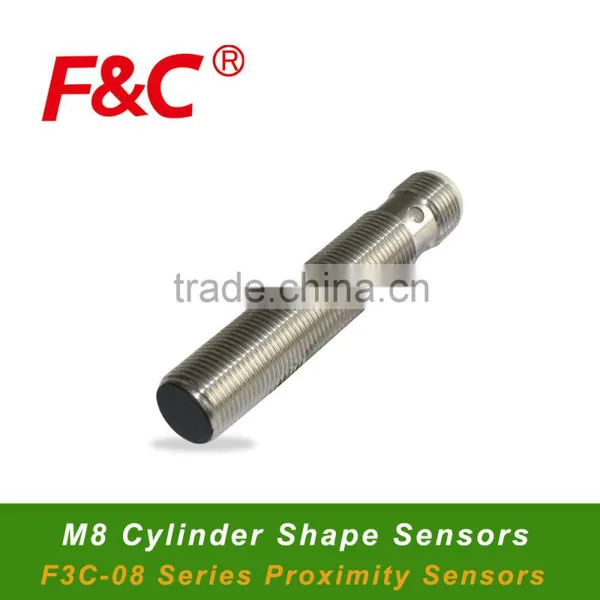

F3C-08 Series M8 3-Wires Inductive Proximity Sensors, Connector Type, 360 Degrees LED View
US$ 5 - 10
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3C-08 series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F3C-18 Series M18 3-Wires Inductive Proximity Sensors, Connector Type, 360 Degrees LED ViewUS$ 5 - 10MOQ: 20 Pieces -
F3C- 12KS02 Series Inductive Sensors, Flush Type, NPN/PNP, NO/NC Offered, 3-Wire, Inductive Proximity SensorUS$ 5 - 10MOQ: 20 Pieces
-
Inductive Sensor F3C-12KN04 Series, M12, Cylinder Shape Inductance Sensor, PNP/NPN, Non-flush, Can Be Customized 5v DC, PURUS$ 5 - 10MOQ: 20 Pieces
-
Inductive Proximity Sensor F3C-12EN04 Series, M12, Short Housing Type, 12~24v DC, 5v DC Proximity Sensor Can be Offered.US$ 5 - 10MOQ: 20 Pieces
-
F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC OfferedUS$ 5 - 10MOQ: 20 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
F3C-08 series
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer
Product Description
| standard shell/shield | F3C-08KS01-N/D R2M | NPN.NO | 1mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08KS01-N2/D R2M | NPN.NC | ||||
| F3C-08KS01-P/D R2M | PNP.NO | ||||
| F3C-08KS01-P2/D R2M | PNP.NC | ||||
| standard shell/non-shield | F3C-08KN02-N/D R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08KN02-N2/D R2M | NPN.NC | ||||
| F3C-08KN02-P/D R2M | PNP.NO | ||||
| F3C-08KN02-P2/D R2M | PNP.NC |
| Response frequency | 1000Hz/800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |

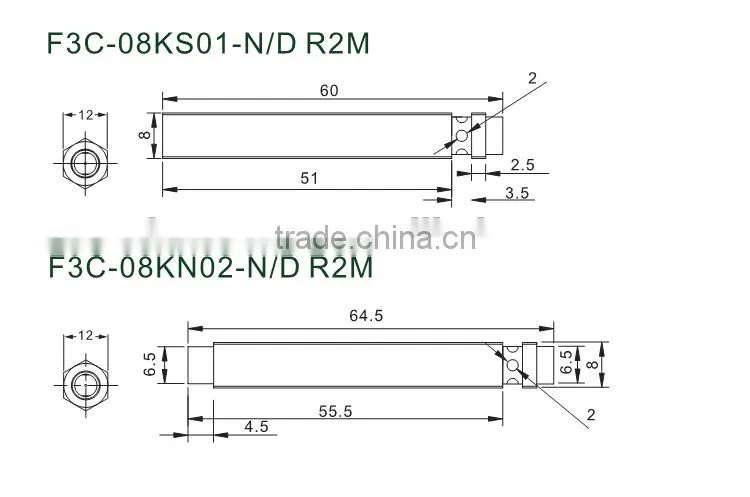

Diagram
