FKC Series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered.

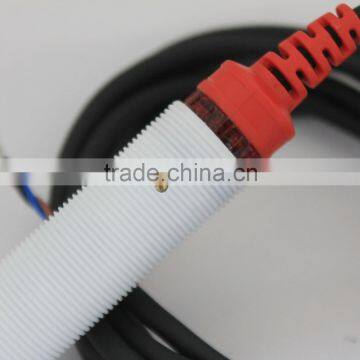

FKC Series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered. photo-1

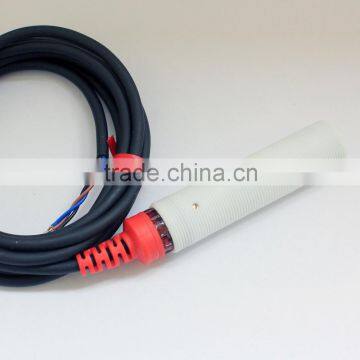

FKC Series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered. photo-2

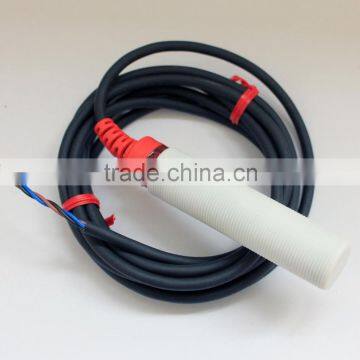

FKC Series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered. photo-3
FKC Series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered. photo-4

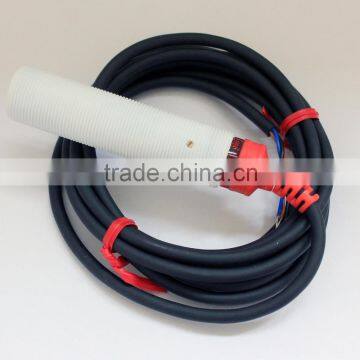

FKC Series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered. photo-5
US$ 20 - 30 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FKC series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name F&C
Model Number FKC series
Usage Position Sensor
Theory Inductance Sensor
Output Switching Transducer

 FKC series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered.







Models Guide

Part NumberOutputSensing RangeOutletDetecting Object
FKC3015-TNNPN.NOM30, max 15mm, adjustable3-wires45*45*1 iron
FKC3015-TN2NPN.NC
FKC3015-TPPNP.NO
FKC3015-TP2PNP.NC
FKC1810-TNNPN.NOM18, max 10mm, adjustable3-wires30*30*1 iron
FKC1810-TN2NPN.NC
FKC1810-TPPNP.NO
FKC1810-TP2PNP.NC
FKC1205-TNNPN.NOM12, max 5mm, adjustable3-wires15*15*1 iron
FKC1205-TN2NPN.NC
FKC1205-TPPNP.NO
FKC1205-TP2PNP.NC



ModelsFKC series
Standard sensing object
metal/non-metal
Response friquency
DC:600Hz
Hysteresis
within 1O% sensing distance
Operating voltage
DC:10~30VDC±10%
Current consumption
DC:≤8mA No—Load
Load currents
DC:30V 200mA Max
Leakage currents
DC:≤1.1mA no-Load
Residual votage
DC:≤1.5VDC No-load
Operating temperature
-20°C~+70°C
Material
ABS
Wiring method
φ3×2M/3-wires
Protection degree
IP66

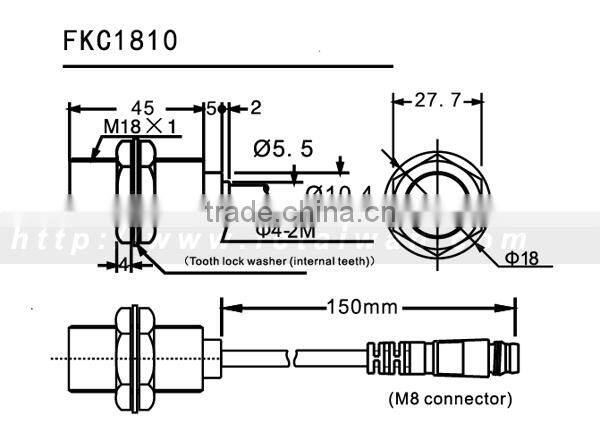

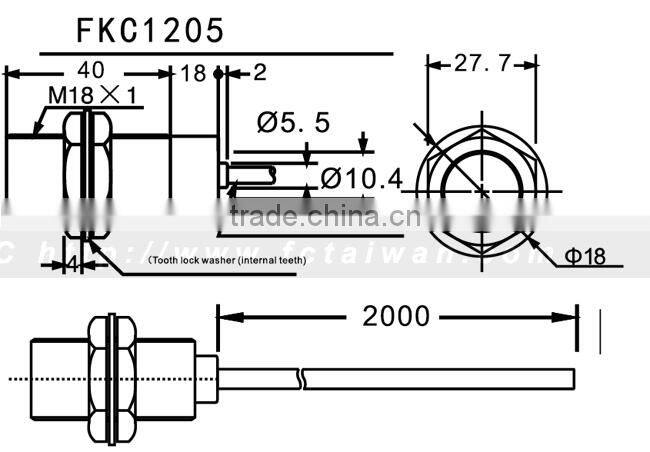

Diagram




FKC series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered.FKC series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered.



FKC series Capacitive Sensor, M12/M18/M30 Teflon Housing, Chemical and Corrosion Resistance, Four-wire Type Offered.
