Home > Electrical & Electronics > Sensor > Pressure Sensor > FSCU Series M8/M12/M18/M30 Full Metal Body With Protected Tube, Firm Structure, Prevented Collision Damage.

FSCU Series M8/M12/M18/M30 Full Metal Body With Protected Tube, Firm Structure, Prevented Collision Damage.

FSCU Series M8/M12/M18/M30 Full Metal Body With Protected Tube, Firm Structure, Prevented Collision Damage. photo-1

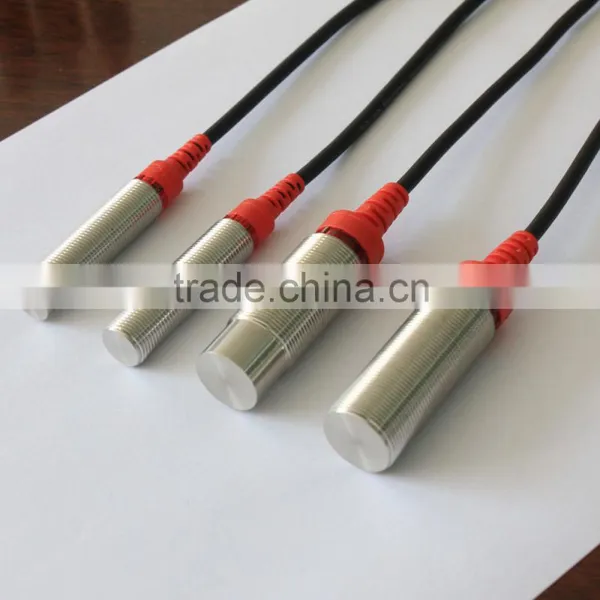

FSCU Series M8/M12/M18/M30 Full Metal Body With Protected Tube, Firm Structure, Prevented Collision Damage. photo-2

US$ 5 - 10 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

F&C

Model Number:

FSCU series

Contact Supplier Request Quote Chat Now

F&C Sensing Technology (Hunan) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name F&C

Model Number FSCU series

Usage Position Sensor

Theory Inductance Sensor

Output Switching Transducer

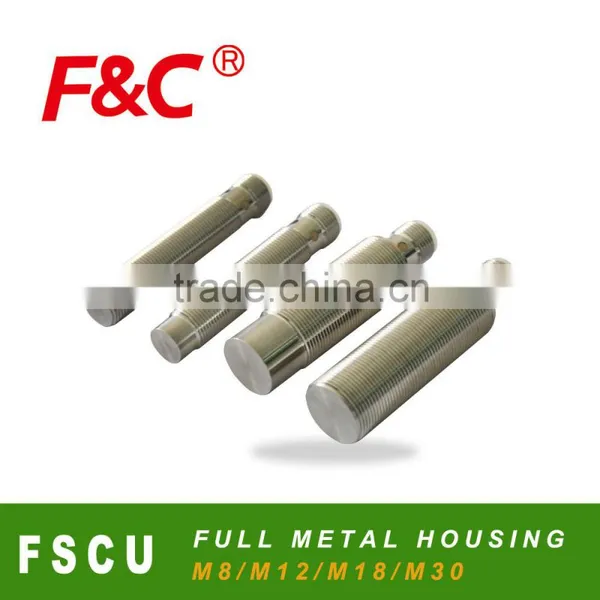

Full metal shell -FSCU series:

M12/M18 size;
Input: 10~30VDC, amplifier build inside;
Output 200mA,response time: 0.1ms ;
Detect only ferrous metals such as iron, steel, nickel, cobalt;
Full metal shell (include sense field), collision avoidance.

Category	Model	Detection mode	Detection distance	Deteted objects	Entry cable
M8 Shield	FSCU0801-ND	NPN.NO	1mm	8×8×1(iron)	M12 4pins/ 2m soft cable
	FSCU0801-N2D	NPN.NC
	FSCU0801-PD	PNP.NO
	FSCU0801-P2D	PNP.NC
M8 Non-shield	FSCU0802-ND	NPN.NO	2mm	8×8×1(iron)	M12 4pins/ 2m soft cable
	FSCU0802-N2D	NPN.NC
	FSCU0802-PD	PNP.NO
	FSCU0802-P2D	PNP.NC
M12 Shield	FSCU1202-ND	NPN.NO	2mm	12×12×1(iron)	M12 4pins/ 2m soft cable
	FSCU1202-N2D	NPN.NC
	FSCU1202-PD	PNP.NO
	FSCU1202-P2D	PNP.NC
M12 Non-shield	FSCU1204-ND	NPN.NO	4mm	12×12×1(iron)	M12 4pins/ 2m soft cable
	FSCU1204-N2D	NPN.NC
	FSCU1204-PD	PNP.NO
	FSCU1204-P2D	PNP.NC
M18 Shield	FSCU1805-ND	NPN.NO	5mm	18×18×1(iron)	M12 4pins/ 2m soft cable
	FSCU1805-N2D	NPN.NC
	FSCU1805-PD	PNP.NO
	FSCU1805-P2D	PNP.NC
M18 Non-shield	FSCU1808-ND	NPN.NO	8mm	18×18×1(iron)	M12 4pins/ 2m soft cable
	FSCU1808-N2D	NPN.NC
	FSCU1808-PD	PNP.NO
	FSCU1808-P2D	PNP.NC

Note:"-N" mean NPN, "-p" mean PNP, "-B" mean two sub-wire, "P2" mean PNP.NC, "N2" mean NPN.NC, "/15D" mean 150mm cable with connector;

Model	FSC0801 series	FSC0802 series	FSC1202 series	FSC1204 series	FSC1805 series	FSC1808 series
Scanning distance	1mm	2mm	2mm	4mm	5mm	8mm
Recommened distance	0.8mm	3.2mm	1.5mm	3.2mm	4.2mm	6.4mm
Standard sensing object	8×8×1(iron)	8×8×1(iron)	12×12×1(iron)	12×12×1(iron)	18×18×1(iron)	18×18×1(iron)
Response requency	DC:1KHz
Hysteresis	1O%≤sensing distance
Operating voltage	DC:10~30VDC±10%
Current consumption	DC:≤8mA No—Load
Load current	DC:30V 200mA Max
Leakage current	DC:≤1.1mA no-Load
Residual votage	DC:≤1.0VDC No-load
Operating temperature	-20°C~+70°C
Material	ABS and SUS304
Wiring method	M12 4pins/2m soft cable
Protection degree	IP67
