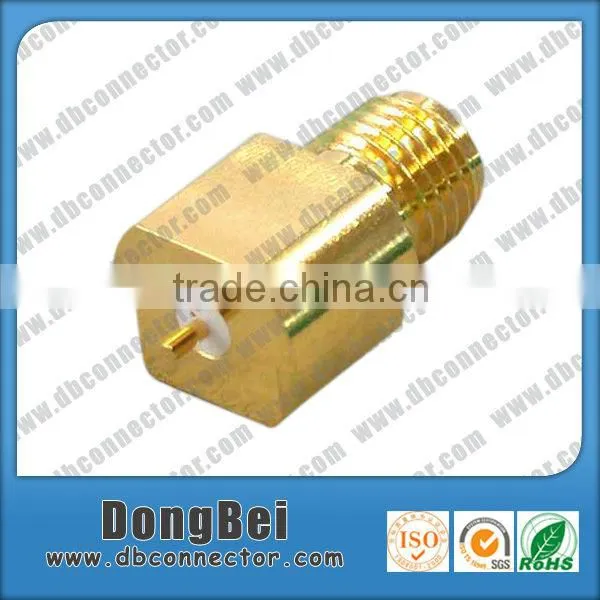

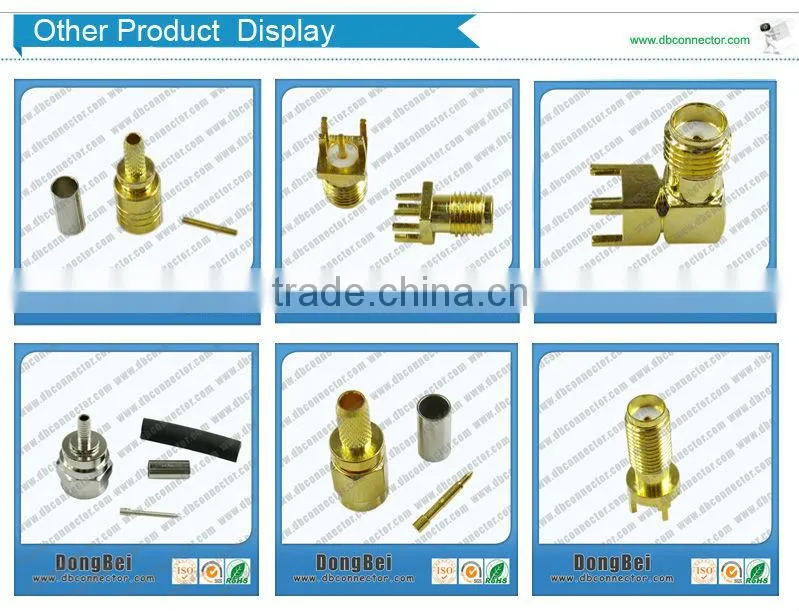

Straight jack edge mount SMA connectors
| *-----SMA connectors are semi-precision, subminiature units that provide excellent electrical performance from DC to 18 GHz |
| *-----SMA connectors for semi-rigid coaxial cables and the SMA Plug-to-Jack adapter offer a precise and simple means of phase adjustment for microwave devices |
| *-----SMA is available both in Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors |
Features:
1. Our high quality connectors meet MIL-C-39012 spec.
2. SMA connectors are used where space and weight requirements are critical. Broadband performance with low reflection constuction of 1/4 - 36 threaded coupling design offer high mechanical durability & reliability, & low VSWR
3. SMA accepts RG58, 141, 142, 400, 174, 188, 316/U and RG178, 196/ u or equiv. diameter cable
4. Screw type coupling
Materials:
Bodies: Brass with gold (stainless Steel body SMA available) ; nickel or white bronze plating
Center Contact: Male-Brass with Gold Plating 30 micro inches
Female-Beryllium Copper with Gold Plating 30 micro inches
Insulator: Teflon
Crimp Ferrules: Brass with gold , nickel or white bronze plating
Specifications:
| Impedance | 50 ohms |
| Frequency Range | 0 to 5GHz |
| Working Voltage |
RG-178 = 170Vrms at sea level max. RG-174, 188, 316 = 250 Vrms at sea level max. RG-58 = 335 Vrms at sea level max |
| Insulation Resistance | 5000 Megohms min. |
| DWV |
RG-178 = 500 Volts rms min. RG-174, RG188, RG316= 750 volts rms min. RG-58 = 1000 olts rms. min. |
| VSWR |
Straight connector: RG178 = 1.20 + 0.025F (F in GHz) RG174, 188, 316= 1.15 + 0.02F (F in GHz) RG58 = 1.15 + 0.01F (F in GHz) R/A connector: RG178= 1.20 + 0.03F (F in GHz) RG174, 188, 316= 1.15 + 0.03F (F in GHz) RG58= 1.15 + 0.02F (F in GHz) |
