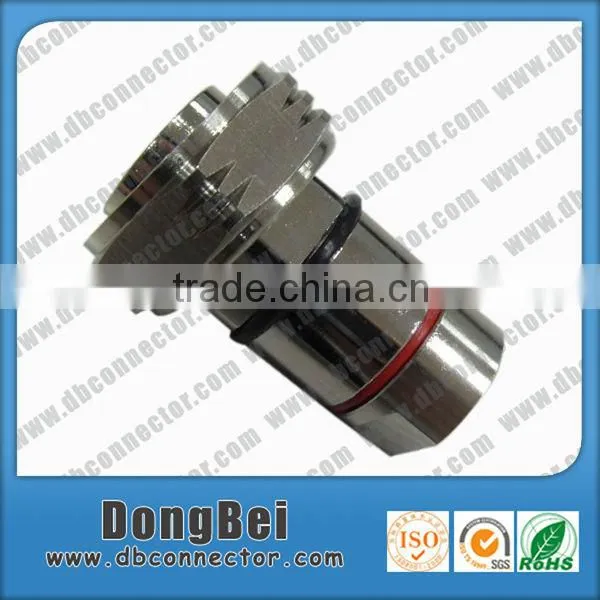

Din Male Connector for 1/2 Cable
US$ 0.1 - 0.9
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DongBei
Model Number:
DB-115
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50ohm n Male Connector for Flexible CableUS$ 0.1 - 10MOQ: 1000 Pieces -
RF SMA RG174 Black Pigtail Coax Connector With CableNegotiableMOQ: 1000 Pieces
-
Dongbei Smb rf Coaxial Cable ConnectorNegotiableMOQ: 2000 Pieces
-
Dongbei Coaxial SMB-C-75J1.5- 3.7 RF SMB ConnectorNegotiableMOQ: 2000 Pieces
-
Dongbei Coaxial 75ohm SMA SMB RF ConnectorNegotiableMOQ: 2000 Pieces
Place of Origin
Jiangsu, China
Brand Name
DongBei
Model Number
DB-115
Type
DIN
Application
RF
Gender
Male
Specifications
din male connector for 1/2 cable1.High quality
2.Best service
3.Factory prices
4.OEM accepted

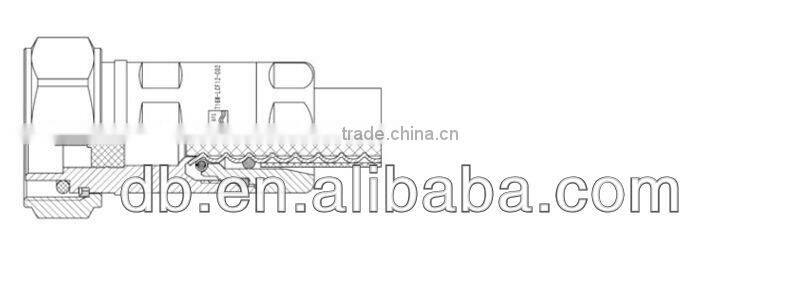

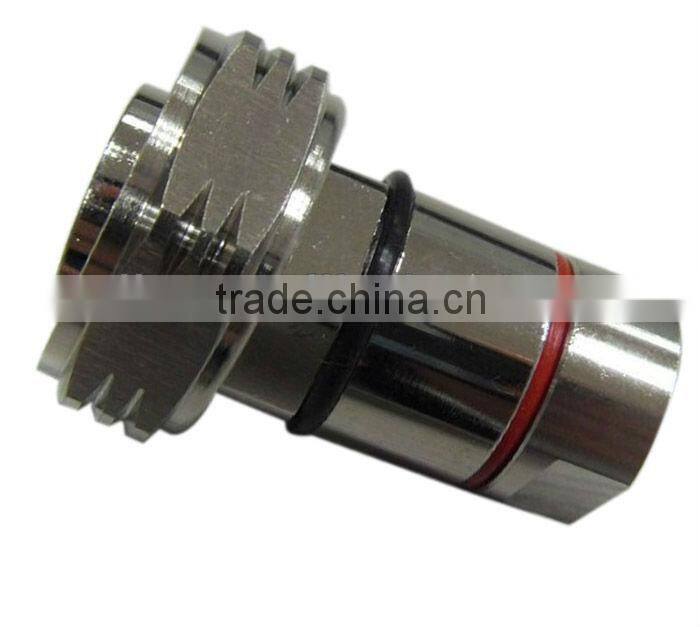

din male connector for 1/2 cable
| Electrical Characteristics | |
| Impedance | 50 ohm |
| Frequency range | 0~7.5GHz |
| VSWR | ≤1.20 typ |
| Insulation resistance | ≥1000M ohm |
| Center contact resistance | ≤1.5m ohm |
| Outer contact resistance | ≤0.4m ohm |
| Withstand voltage | 4000 V rms |
| Working voltage | 2700V |
| RF-leakage(dB) | ≥128dB@1GHz |
| Mechanical Characteristics | |
| Coupling torque | 25Nm~30Nm |
| Coupling nut retention | ≥800N |
| Center contact captivation | 200N |
| Center contact retention force | ≥6N |
| Mating cycles | ≥500 |
| Environmental Data | |
| Temperature range | -55°C~+155°C |
| Moisture resistance | IEC 61169-1,Subclause9.4.3 |
| Rapid change of temperature | IEC 61169-1,Subclause9.4.4 |
| Vibration | IEC 61169-1,Subclause9.3.3 |
| Shock | IEC 61169-1,Subclause9.3.14 |
| Corrosion resistance | IEC 61169-1,Subclause9.4.6 |
| Materials | |
| Body | CuZn/ Ni/CuZnSn plating |
| Outer contact | CuZn/ Ni/CuZnSn plating |
| Center contact | CuZn/CuBe/ Ag plating |
| Insolator | PTFE |
|
|
|
|

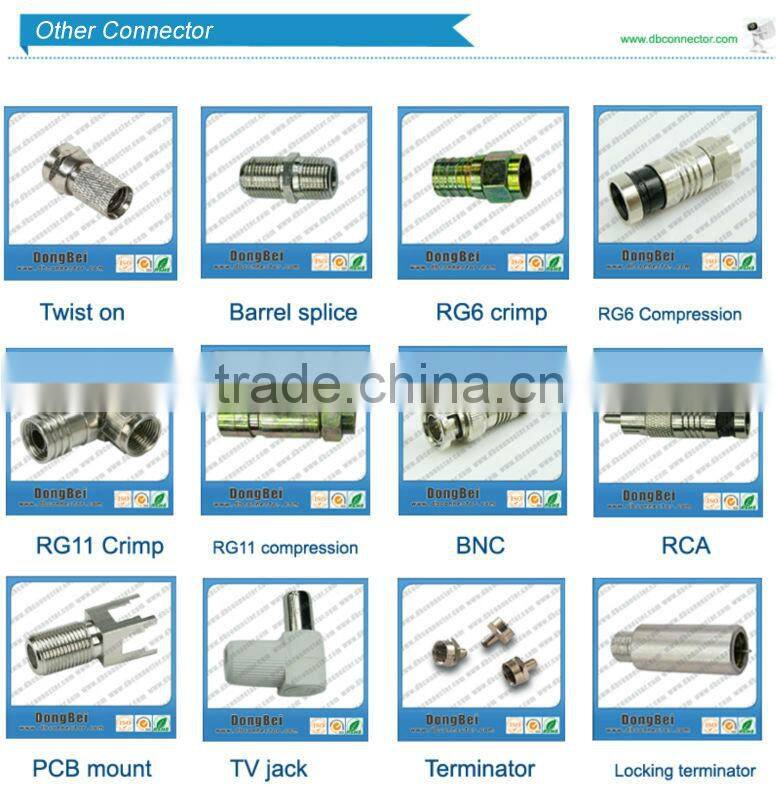

*--* We have various types connector and an professional ,experienced service team.
*--* Welcome to login our website check more products information.
Dongbei QC Team
Donbei QC team consists of professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 12 hours.
Please fell free to call us at any time if there is any questions.
Transportation
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
Send Inquiry to This Supplier
Mr. Donald Chen
General Manager
Yangzhou Dongbei Electronic Equipment Factory
Yangzhou, Jiangsu, China
