2013 High Quality Right Angle Sma rf Male Connector
US$ 0.1 - 1.5
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Dongbei
Model Number:
db-002
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2013 Dongbei Smb Direct Insertion Female rf Coaxial Cable ConnectorUS$ 0.1 - 0.65MOQ: 2000 Pieces -
50ohm SMA Female Right Angle Connector for PCB MountingUS$ 0.1 - 0.9MOQ: 2000 Pieces
-
Rg174 Rg316 Rg58 Coaxial Cable Crimp Sma Connector Right Angle Sma Male ConnectorUS$ 0.1 - 0.9MOQ: 3000 Pieces
-
Female SMA Connector for PCB MountingUS$ 0.1 - 0.9MOQ: 1000 Pieces
-
SMB Pcb Male ConnectorUS$ 0.1 - 0.9MOQ: 2000 Pieces
Place of Origin
Jiangsu, China
Brand Name
Dongbei
Model Number
db-002
Type
SMA
Application
RF
Gender
Male
Specifications
right angle sma rf male connector1) fast installtion / installer comfort
2) Low Insertion Loss
3) watertight
2013 high quality right angle sma rf male connector
| Connector type | right angle sma male rf connector | Working Voltage | 335V max |
| Frequency Range | 0~6GHz | vswr | max 1.3 |
| Impedance | 50Ω | Temp.range | -25~+60°C |
| Conductor resistance | Internal ≤ 6mΩ | Material | Shell:copper, gold plated |
| External ≤ 2mΩ | Nut:copper, gold plated | ||
| Insulating resistance | ≥ 1000 MΩ | pin:brass,gold plating | |
| Withstanding voltage | 400V rms | Applicable standard | IEC 60169-24 |

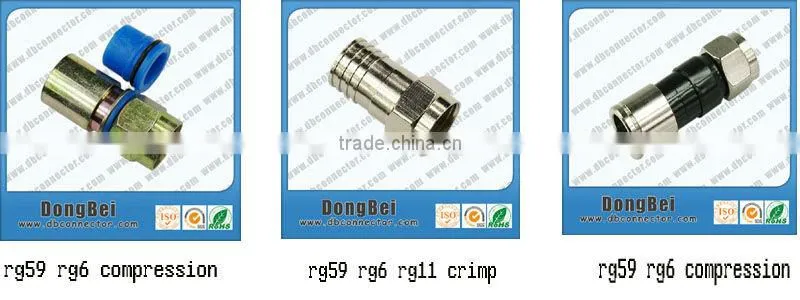

other male connectors:
- Manfactured of high quality brass with nickel plating of superior protection against v-corrosion
- Offer excellent RFI shielding properties
- easy-grip free-spinning nut for fast installation and installer comfort
- Designed to be watertight for outdoor applications
