Specifications
1.SMB pcb male connector2.Best serve
3.High quality
4.Factory prices
5.OEM accepted
SMB pcb male connector
Technical Specification of SMB Connector
| Material | |
| Center contacts | Male---brass,gold plated |
| Female---beryllium copper,gold plated | |
| Bodies other metal parts | Brass,gold plated or nickel plated |
| Stainless steel,passivation or gold plated | |
| Insulators | PTFE |
| Crimp ferrule | Brass,nickel plated |
| Gasket and seal rings | Silicone rubber |
Temperature Range |
-65 to +155 Deg.C |
Impendance |
50 Ω |
Frequency Range |
DC to 4 GHz Max(50 Ω); DC to 2 GHz Max(75 Ω) |
Insertion Loss |
0.1 dB Max @ 1 GHz |
VSWR Straight |
≤1.25 |
VSWR Right angle |
≤1.45 |
Working Voltage |
335 V @ SEA LEVEL |
Withstand Voltage |
1000 V @ SEA LEVEL |
Contact resistance |
Center Contact ≤6 mΩ |
Contact resistance |
Outer Contact ≤1 mΩ |
Insulation Resistance |
≥1000 MΩ |
Durability(mating) |
≥500 cycles |

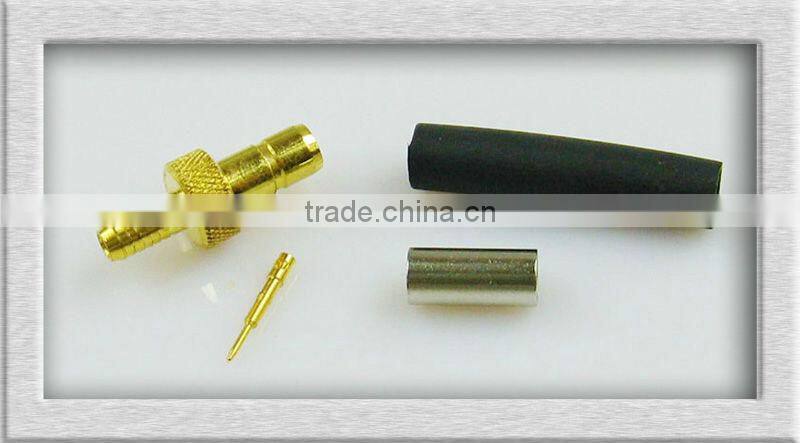

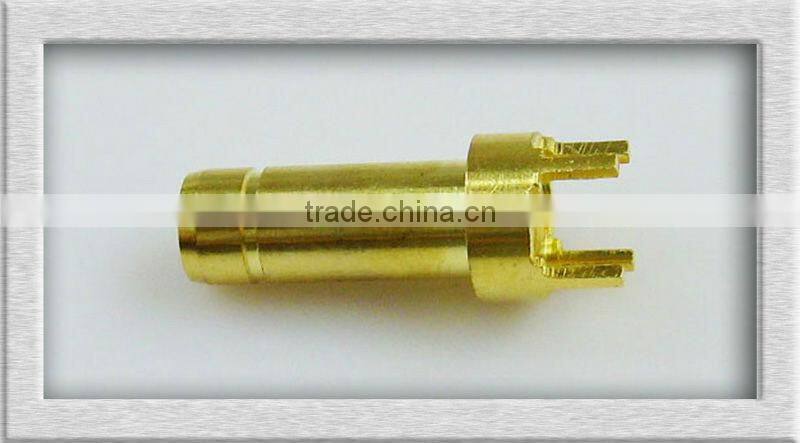

Product Show

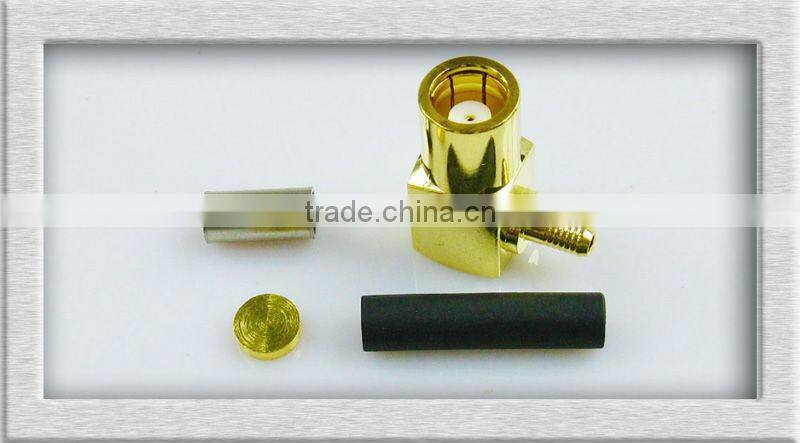

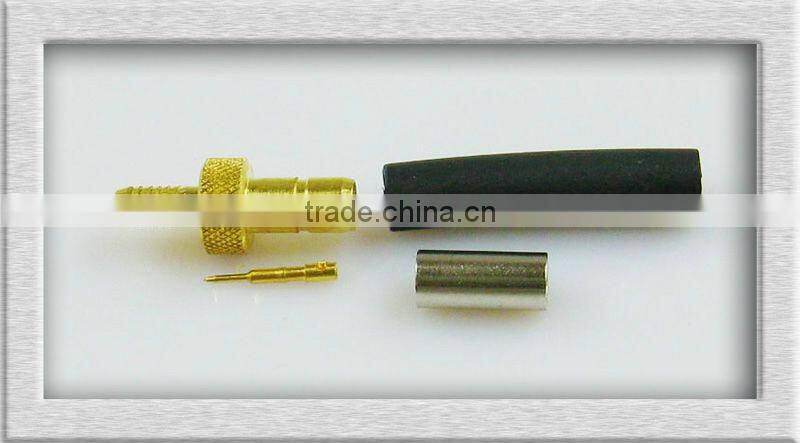

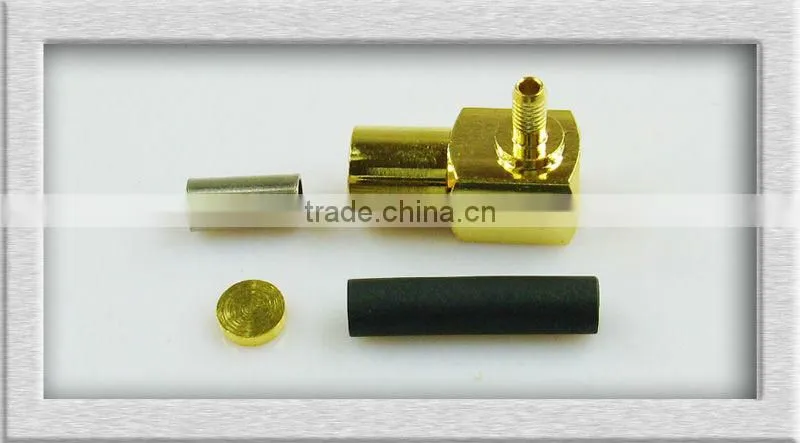

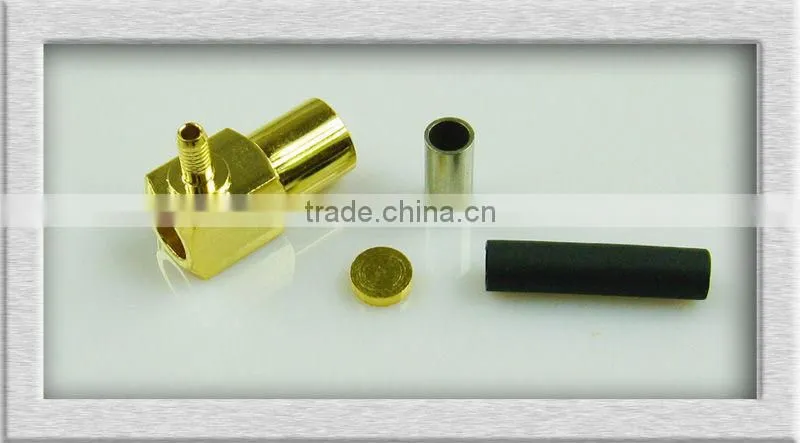

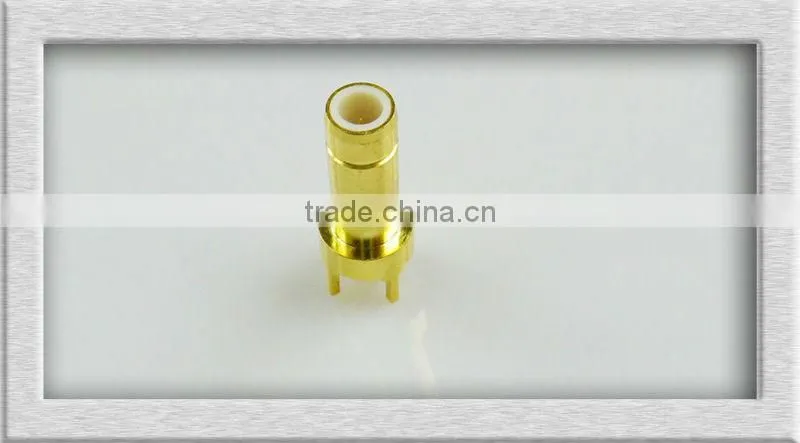

Other SMB PCB Male Connector Show
* We have various types connector and an professional ,experienced service team.
* Welcome to login our website check more products information.
Dongbei QC Team
Donbei QC team consists of professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 12 hours.
Please fell free to call us at any time if there is any questions.
Transportation
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
