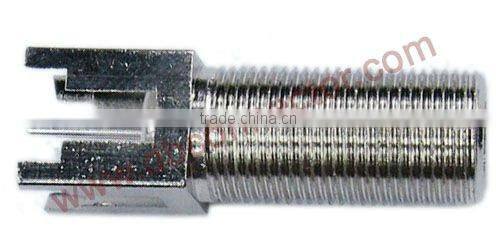

F Female Pcb Mount rf Coaxial Connector

FOB Price

Negotiable / Piece

5000 Pieces(Min. Order)

Port shanghai
Payment TermsT/T D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	db
Model Number	OPT-BUL-4	Type	F
Application	RF	Gender	Male

Product Description

Specifications

rf coaxial connector
Impedance: 75 Ohms
plating: nicklematerial: brass
F female pcb mount connector
water and weatherproof

F female pcb mount rf coaxial connector

specifications:

Temperature range: -40~+60°C

Vibration: 100m/s2 (10~500Hz)

Impedance: 75Ω

Frequency range: DC~1GHz

Working voltage: At sea level: 170V

Withstand voltage: At sea level: 500 V(rms)

Contact resistance: Center contact: ≤10mΩ

Outer contact: ≤5mΩ

Insulation resistance: ≥1000MΩ

Center conductor withdrawal force: ≥0.2N

VSWR: Straight: ≤1.20

Angle: ~1GHz ≤1.3

Durability: ≥500 cycles

Material & Plating:

Body: brass nickel plated

Pin contact: brass gold or silver plated

Resilient contact: tin bronze gold or silver plated

Insulator: PTFE or PE

Crimp ferrule: copper alloy nickel or gold plated

o-ring sealing: silicone rubber

---------------------------------------------------------------------------------------------------------

Wide hexagon nut for ease of tightening
Quality brass plated Nickel
Versions available to meet every requirement
Precision high reture loss version ensures the most consistent impedance match possible
Prevents signal ingress and egress
Reduces water migration into open port

Temp-range		-40°C~+60°C
Impedance		75Ω
Frequency range		0~1GHz
Center conductor withdrawal force		≥0.49N
Contact resistance	Center conductor	≤6mΩ
	Outer conductor	≤1mΩ
Insulation resistance		≥1000MΩ
Withstand Voltage	At sea level	750V
Working voltage		170V max
VSWR	Straight	≤1.20
	Angle	≤1.30
Durability		500 cycles
