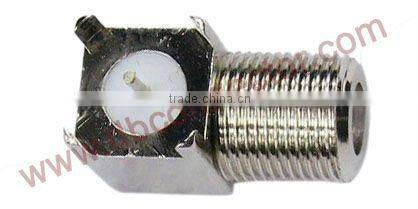

f Female Right Angle Bulkhead RF Connector for PCB
Negotiable
/ Piece
5000 Pieces(Min. Order)
- shanghai
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | db | |
| Model Number | OPT-BUL-9 | Type | F | |
| Application | PCB | Gender | Male |
Product Description
Specifications
bulkhead rf connectortype: rf connector for pcb
Impedance: 75 Ohms plating:nickle
material: brass
f pcb connector
f female right angle bulkhead rf connector/ adapter
Technical characteristics:
Temp-range | -40°C~+60°C | |
Impedance | 75Ω | |
Frequency range | 0~1GHz | |
Center conductor withdrawal force | ≥0.49N | |
Contact resistance | Center conductor | ≤6mΩ |
Outer conductor | ≤1mΩ | |
Insulation resistance | ≥1000MΩ | |
Withstand Voltage | At sea level | 750V |
Working voltage | 170V max | |
VSWR | Straight | ≤1.20 |
Angle | ≤1.30 | |
Durability | 500 cycles | |
---------------------------------------------------------------------------------------------------------
- RF to pcb connector:
- Wide hexagon nut for ease of tightening
- Quality brass plated Nickel
- Versions available to meet every requirement
- Precision high reture loss version ensures the most consistent impedance match possible
- Prevents signal ingress and egress
- Reduces water migration into open port
