Help CenterSolar Ballast Roof for Home Mounting System
Related Products
-
Ballast Solar Mounting SystemsUS$ 65 - 75MOQ: 100 Kilowatts -
Solar Home Tile Roof Mounting SystemNegotiableMOQ: 1 Kilowatt
-
Pitched Roof Solar Panel Mounting Structures for Metal RoofUS$ 45 - 60MOQ: 100 Kilowatts
-
Pitched Roof Top Solar Panel Mounting Structures for Meatl RoofUS$ 45 - 60MOQ: 100 Kilowatts
-
Roofing Solar Panel Mounting System/brackets/structureUS$ 50 - 60MOQ: 100 Kilowatts
| _________________________________________________________________________________________________________ |
|
_________________________________________________________________________________________________________
|
• solar ballast roof for home mounting system •
• Features _________________________________________________
|
♦CY-ZJ07 solar flat ballast roof for home mounting system is applied to large commercial solar plant and plant for public uitilites. CY-ZJ07 is designed for both frame and frameless modules. It is a ballast system which does not need to penetrate the roof. So the roof is totally protected, and it saves a lot of installation time at site. This system is made of stainless steel and Aluminum which not only lowers the weight of whole system but improve the ability of anti-corrosion. The D&R team of CY solar draw lessonsfrom the experience on both domestic and foreign project installation.and devote themselves to improving design based on mechanics. This kind of system is a buckle-into type which does not need any clamp or bolt.The installation work is very easy and fast.
♦ Specifications: 1. Excellent design
2. Easy installation: 40% ~80% pre-assembled
3. Safety & reliability: IBC 2009,CBC 2010,ASCE/SEI 7-10,ANSI/ATSC 360-05,ACI 318-08
4. Custom-designed
5. High Quality & Competitive Price: The best price with guarantee |
• Information ______________________________________________
| Product model | CY-ZJ07 | |||||
| Application field | Flat concrete or metal roof (with ballast) | |||||
| Material | hot dip galvanized steel, Aluminum | |||||
| Arrangement of module | Customized | |||||
| Connecting components | Stainless steel bolt | |||||
| Wind resistance | 35m/s | |||||
| Snow load | 0.8KN/m² | |||||
| Servise life | 30years | |||||
| Warranty | 15 years | |||||
| Standard and certifications | ASCE/SEI 7-10 | |||||
1. The concise design saves a lot of material which makes its price very competitive.
2. This buckle-into type has a very easy installation work. 4 step complete the whole work(1. Open the folded structure. 2. Fix the ballast plate. 3. Clip the module . 4. Put the concrete foundation.)
3. 80% of pre-assemble work improves the efficiency at site.
4. 15-year warranty and 30 years of service life is promised.
• Working process ___________________________________________
Drawing ==> Mechanical Calculation ==> Testing ==> Installation Video
• Drawing&calculation&video _________________________________
• Why choose CY SOLAR? ___________________________________
Attention:
♦ Posistion: Located in CHINA with cheap labor & large raw material market.
♦ Guarantee: Supplied to project to be 396MWracking capacity.
♦ High Pre-assembly: 40% pre-assembly components, good for your time&labor saving!
♦ Flexible: Provide customized pruducts
♦ Professional: With 8 production lines, 10 enigneering developers.
♦ Rapid Transportation: One-hour to Shanghai port.
♦ High quality: Our products have 15-year warranty and 30-year of service life.
♦ Wide Application: Both ground&roof system, include the rail-less roof mounting structure.

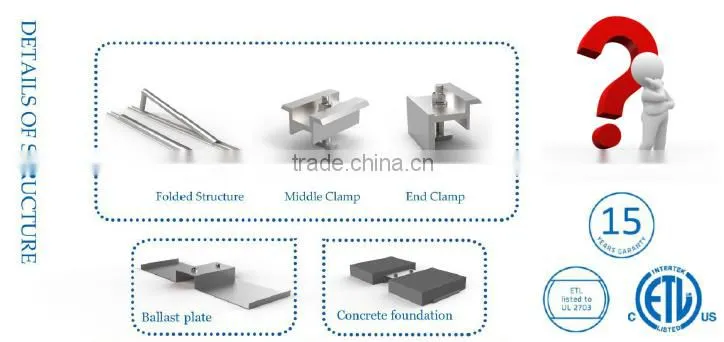

• Details of structure ________________________________________
• Name: Triangle structure • Material: Aluminum 6005-T5
• Name: Ballast Plate • Material: Aluminum 6005-T5
• Name: Middle Clamp • Material: Aluminum 6005-T5,SS304
• Name: End Clamp • Material: Aluminum 6005-T5,SS304
CY Solar is focusing on meeting the huge demands from the public and improving advanced customized solar racking
solution.
Our obedience to the sprit of "Professional, Creative Service" to maintain the good relationship with our clients and
keep long term business relationship with domestic and overseas customers.
♥ Packaging Details: Inner package: Carton or kraft paper
Outer package: Wooden case or pallet
♥ Delivery Detail: 30 days after receiving 30% deposit
When requesting a quote, please offer the following necessary info:
1) What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness.
2) How many panel are you going to mount? _______Pieces,each is _______Wp
3) Lowest height from the panel edge to the ground_____mm?
4) What is your planned pv assmebly block? ________(2*20 or 2*10 or 4*10 or others). in a row,
Horizontal or Vertival?
5) How is weather there, such as wind speed and snow load? ___m/s anit wind speed and____KN/m2
snow load
|
♦CY Solar is a leading enterprise with a comprehensive portfolio of products and services spanning the following areas: Solar Mounting, Solar Ground Mounting,solar mounting systems design, development, implementation, manufacturing, sales, and service. Our factory's chief areas of business involve: solar ground mounting system, flat and tile /iron roof mounts and the solar trackers. ♦We have ten experienced designers to design new solar mounting systems to meet customers' different needs . ♦We are located between the Shanghai City and Hangzhou city, a superior geographical conditions, easily accessible. ♦We have a young engineer team engaged in the development and designing with the advanced production equipment, inspection methods, strict quality control and rich management experience. |
|
♦Our price is much lower than others, because we are a factory , the source ,we produce these products directly . we have eight produce lines , that' s why our delivery time is short than others .The warranty is ten years and the service life can be reach 30years to fit the requirement of solar plant . ♦Our products meet the requirements of the international environmental law , Meet the development trend of the world's environmental ,our production concept is people-oriented . we have CE and ROHS . ♦With our factory, you take advantage of decisive advantages: Innovative ideas and professional project handling. ♦Nevertheless, we have maintained the flexibility of a medium-sized company - due to lean management and short device processes. Starting from small series up to big series, from simple profiles up to complex systems - let us impress you with our performance! ♦Company website: |
