Pitched Roof Solar Panel Mounting Structures for metal roof
- 10000 Kilowatt / Kilowatts per Month
- Shanghai or Ningbo
- T/T PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CY | Model Number: | CY-ZJ09 |
Type: | Other, solar roof racking system |
Product Description
• Pitched Roof Solar Panel Mounting Structures •
• Features _________________________________________________

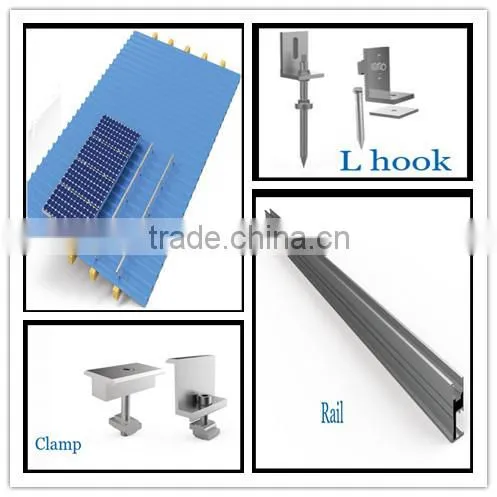

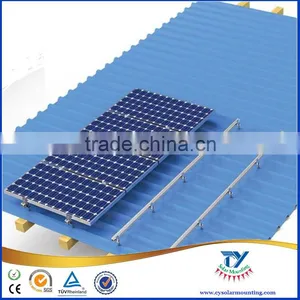

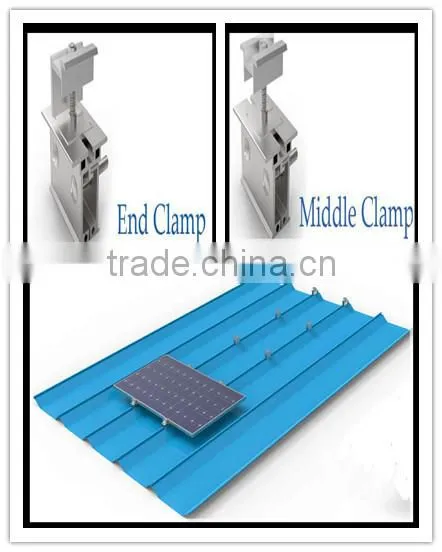

♦CY-ZJ09 is a pitched roof flush racking system which is very popular with customers. The racking system only has 3 components which is cost efficent and has high installation efficency. 100% Aluminum allows the racking system reaching as long as 30-year service life. Besides, the less components means less transportation costs. Also there is pre-assambly parts which saves the installation time and labor.
♦ Specifications: 1. Excellent design
2. Easy installation: 40% ~80% pre-assembled
3. Safety & reliability: IBC 2009,CBC 2010,ASCE/SEI 7-10,ANSI/ATSC 360-05,ACI 318-08
4. Custom-designed
5. High Quality & Competitive Price: The best price with guarantee |
• Information ______________________________________________
Product model | CY-ZJ09 | |||||
Application field | Pitched Roof Solar Panel Mounting Structures | |||||
Material | Aluminum 6005-T5 | |||||
Arrangement of module | Horizontal | |||||
Connecting components | Stainless steel bolt | |||||
Wind resistance | 35m/s | |||||
Snow load | 0.8KN/m² | |||||
Servise life | 30years | |||||
Warranty | 15 years | |||||
Standard and certifications | ASCE/SEI 7-10 |
• Drawing
• Why choose CY SOLAR? ___________________________________
Attention:
♦ Posistion: Located in CHINA with cheap labor & large raw material market.
♦ Guarantee: Supplied to project to be 396MWracking capacity.
♦ High Pre-assembly: 40% pre-assembly components, good for your time&labor saving!
♦ Flexible: Provide customized pruducts
♦ Professional: With 8 production lines, 10 enigneering developers.
♦ Rapid Transportation: One-hour to Shanghai port.
♦ High quality: Our products have 15-year warranty and 30-year of service life.

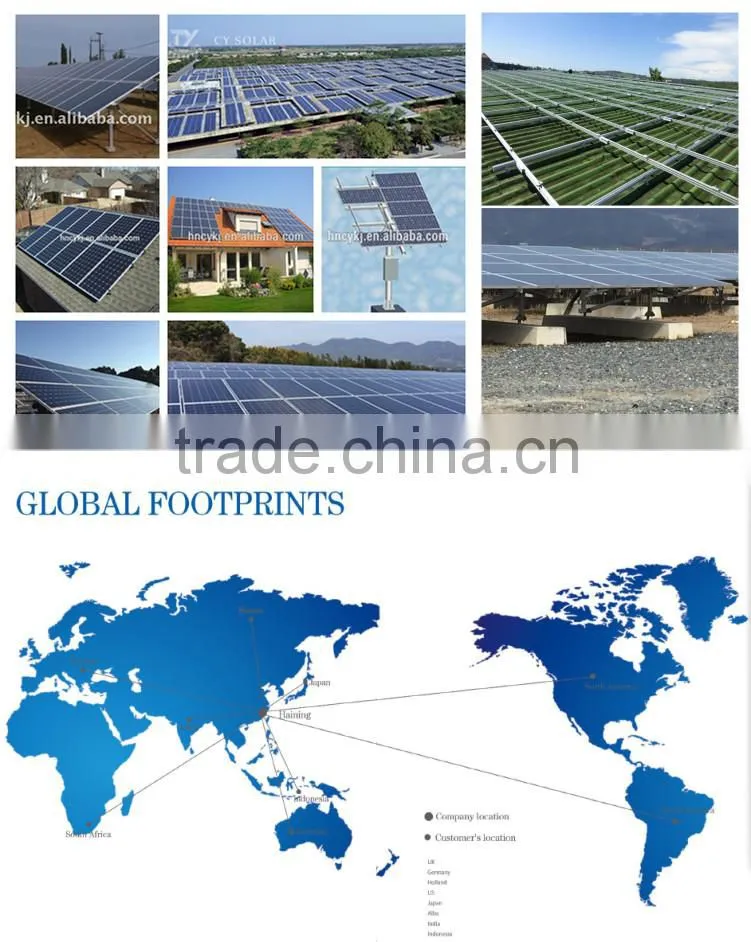

♦ Wide Application: Both ground&roof system, include the rail-less roof mounting structure.
CY Solar is focusing on meeting the huge demands from the public and improving advanced customized solar racking
solution.
Our obedience to the sprit of "Professional, Creative Service" to maintain the good relationship with our clients and
keep long term business relationship with domestic and overseas customers.

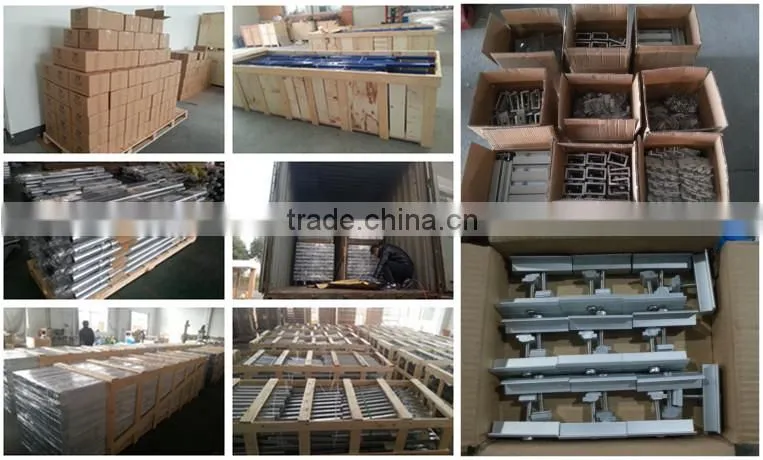

♥ Packaging Details: Inner package: Carton or kraft paper
Outer package: Wooden case or pallet
♥ Delivery Detail: 30 days after receiving 30% deposit
When requesting a quote, please offer the following necessary info:
1) What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness.
2) How many panel are you going to mount? _______Pieces,each is _______Wp
3) Lowest height from the panel edge to the ground_____mm?
4) What is your planned pv assmebly block? ________(2*20 or 2*10 or 4*10 or others). in a row,
Horizontal or Vertival?
5) How is weather there, such as wind speed and snow load? ___m/s anit wind speed and____KN/m2
snow load

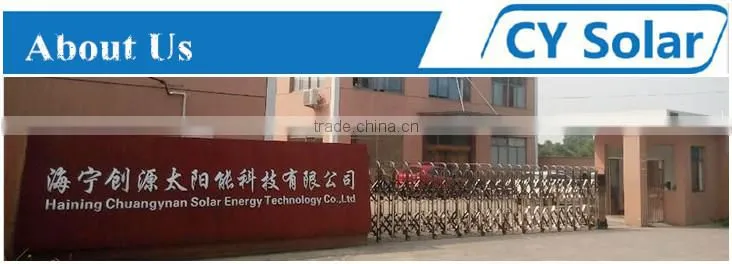

♦CY Solar is a leading enterprise with a comprehensive portfolio of products and services spanning the following areas: Solar Mounting, Solar Ground Mounting,solar mounting systems design, development, implementation, manufacturing, sales, and service. Our factory's chief areas of business involve: solar ground mounting system, flat and tile /iron roof mounts and the solar trackers. ♦We have ten experienced designers to design new solar mounting systems to meet customers' different needs . ♦We are located between the Shanghai City and Hangzhou city, a superior geographical conditions, easily accessible. ♦We have a young engineer team engaged in the development and designing with the advanced production equipment, inspection methods, strict quality control and rich management experience. |
♦Our price is much lower than others, because we are a factory , the source ,we produce these products directly . we have eight produce lines , that' s why our delivery time is short than others .The warranty is ten years and the service life can be reach 30years to fit the requirement of solar plant . ♦Our products meet the requirements of the international environmental law , Meet the development trend of the world's environmental ,our production concept is people-oriented . we have CE and ROHS . ♦With our factory, you take advantage of decisive advantages: Innovative ideas and professional project handling. ♦Nevertheless, we have maintained the flexibility of a medium-sized company - due to lean management and short device processes. Starting from small series up to big series, from simple profiles up to complex systems - let us impress you with our performance! ♦Company website: |
Contact information:
Contact person: Shirley
Contact way: Skype: ahyztahyzy
Contact Us
- Haining Chuangyuan Solar Energy Technology Co., Ltd.
- Contact nameGuohao Zhu
- Phone86-573-87788269
- AddressNo.7 Luotang Street, Xieqiao Town,Haining City Jiaxing,Zhejiang
