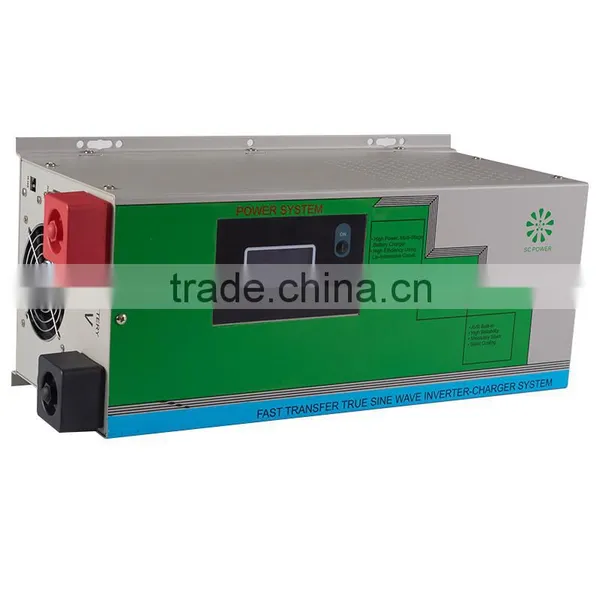

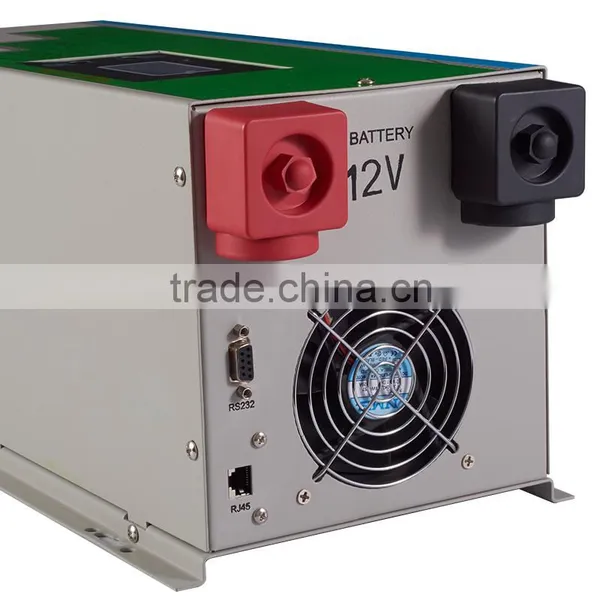

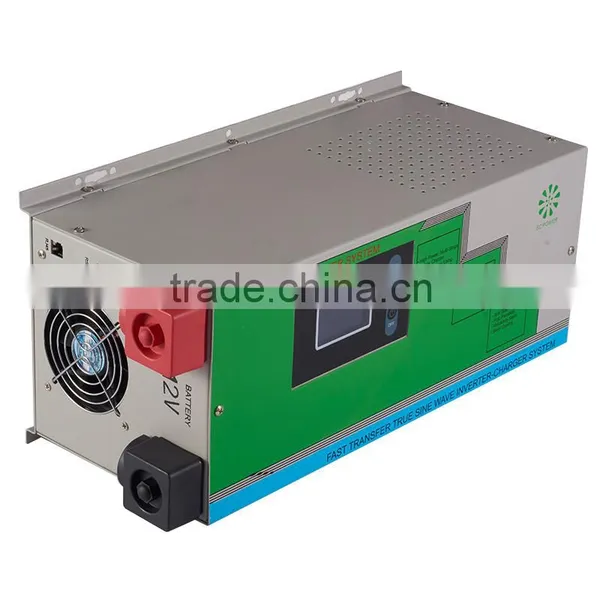

2kw Pure Sine Wave Hybrid Solar Inverter

2kw Pure Sine Wave Hybrid Solar Inverter thumbnail-1
2kw Pure Sine Wave Hybrid Solar Inverter thumbnail-2
2kw Pure Sine Wave Hybrid Solar Inverter thumbnail-3
2kw Pure Sine Wave Hybrid Solar Inverter thumbnail-4
2kw Pure Sine Wave Hybrid Solar Inverter thumbnail-5
2kw Pure Sine Wave Hybrid Solar Inverter thumbnail-6
2kw Pure Sine Wave Hybrid Solar Inverter photo-1
2kw Pure Sine Wave Hybrid Solar Inverter photo-2

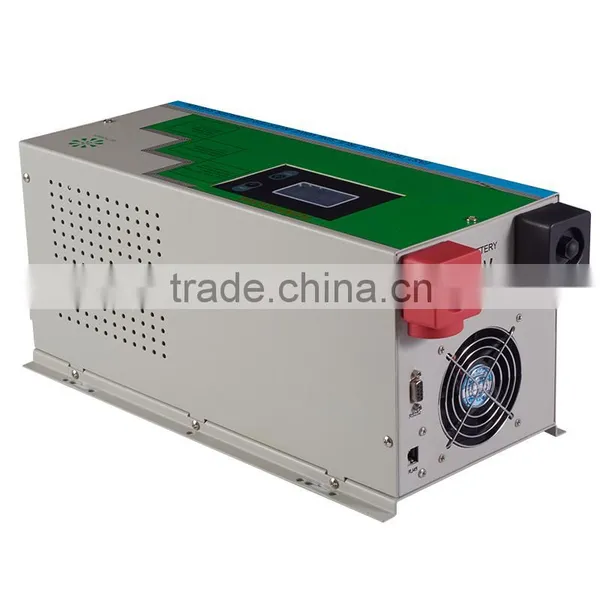

2kw Pure Sine Wave Hybrid Solar Inverter photo-3

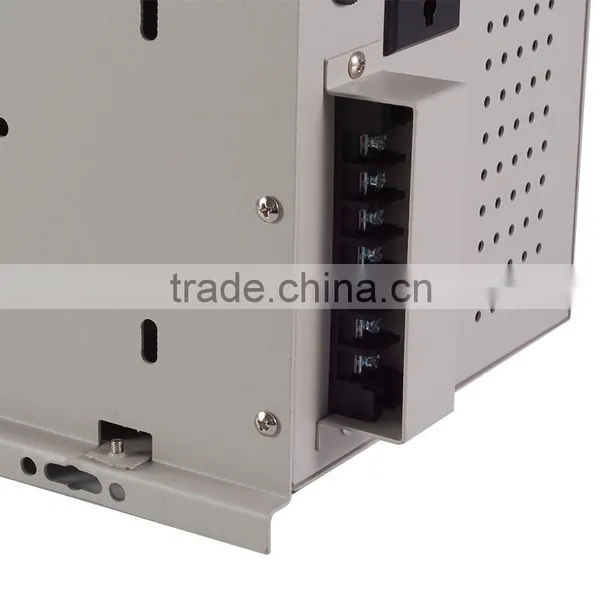

2kw Pure Sine Wave Hybrid Solar Inverter photo-4
2kw Pure Sine Wave Hybrid Solar Inverter photo-5

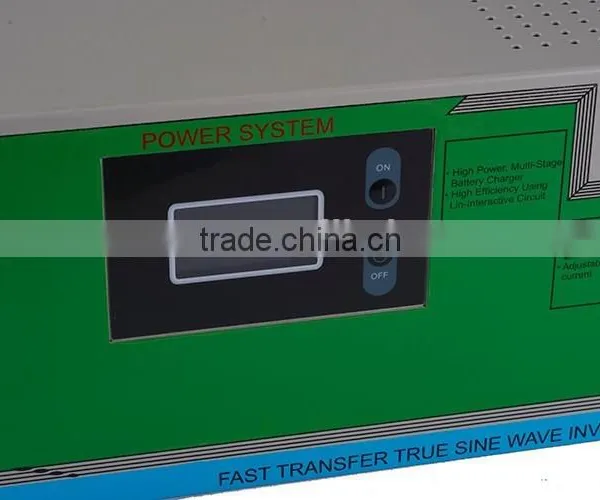

2kw Pure Sine Wave Hybrid Solar Inverter photo-6
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
scpow
Model Number:
SC-G 2KW
Contact Supplier Request Quote Chat Now
Foshan SC Power Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name scpow
Model Number SC-G 2KW
Application Other, power conversion, home/shop/ civil applications
Rated Voltage Other, 12 V
Maximum Current 1-50A

2kw pure sine wave hybrid solar inverter



This is Fiona Yang, thanks for visiting our alibaba website.I will follow your order.

Please feel free to contact me.





 2kw pure sine wave hybrid solar inverter







How is SCP factory different from other suppliers?



1. Our factory SCP specialized on home/shop type on/off-grid solar inverters

    and we owned core technology and patents



2. SCP self-developed database, PCB, programming and software, 100% coincide completely



3. Unique technical system, paraonline technique and relative invention patent



4. MPPT charging current up to 100A

   AC charging current scope 1-50A(adjustable)

   Automatic recognition of battery charging current



5. Other details

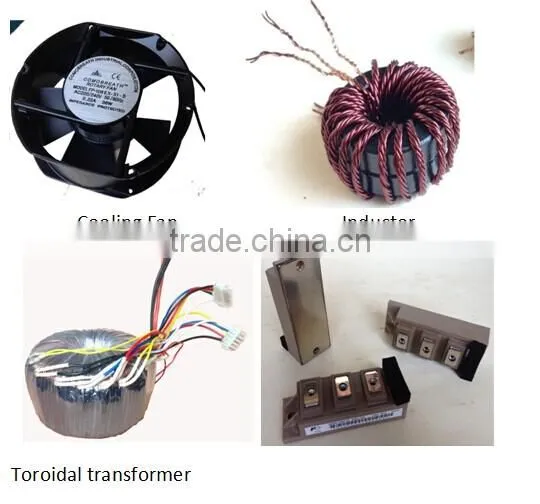

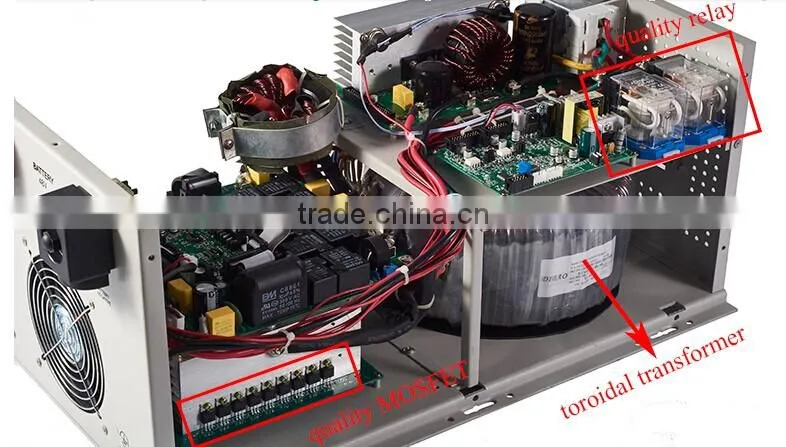

Toroidal Transformer

Low Standby Consumption 1-6W (under sleep mode)/≤1A(under normal mode)

Quiet (Noise<45db)

Multiple Protections:

Charging Current: 0-50A adjustable

Different Batteries acceptable

Wide Range Application

“IR” MOSFET

Pure Sine Wave

Multifunction design AVR, UPS



2kw pure sine wave hybrid solar inverter



 2kw pure sine wave hybrid solar inverter

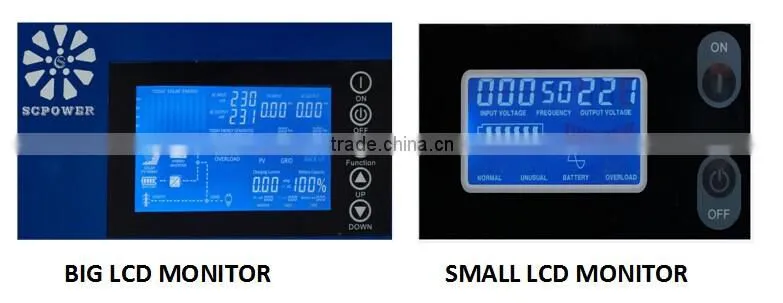

 Professional LCD monitor2kw pure sine wave hybrid solar inverter



Product Description

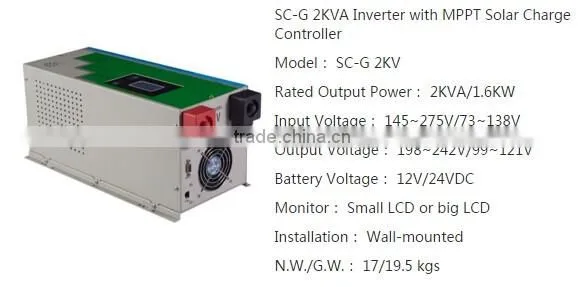

  2kw pure sine wave hybrid solar inverter



2kw pure sine wave hybrid solar inverter







Other parameters of this series hybrid inverters for your ref.

Parameter

Series 1000VA 1500VA 2000VA 3000VA 4000VA 5000VA 8000VA 10KVA
Rate Output Power 800W 1200W 1600W 2400W 3200W 4000W 6400W 8000W
Battery (Lead-acid battery) 12V/24V 24V/48V 48V/96V
Charging Parameter
Charging Mode(Setting) PV charge
PV charge + Utility charge
MPPT solar controller Voltage 12V/24V 24V/48V 48V/96V
Current 20A 25A 30A 50A
Max PV Input Voltage 72V/144V 144V/220V
PV Charge Efficiency 95%-99%
Utility AC Charge current 1-50A adjustable
Inversion Parameter
AC Output Voltage 220V±3% or 230V±3% or 110V±3%
Frequency 50Hz±0.5 or 60Hz±0.5
Output wave type Pure sine wave output,Total Harmonic Distortion THD≤3%
Overload Protection >120% 1min,>130% 10s
Power Consumption
(Under normal working mode) 		0.4A 12V:0.9A 12V:0.7A 24V:0.7A 0.6A 0.65A 0.7A 0.75A
24V:0.7A 24V:0.7A 48V:0.5A
Power Consumption
(Under sleep mode) 		1-6W
Conversion Efficiency 85%-92%
Utility Mode
AC Input 220V±35% or 110V±35% 50Hz or 60Hz
AC Output 220V±5% or 110V+5% 50Hz or 60Hz
(AC first or DC first) priority
UPS Output (Setting) AC first DC standby
DC first AC standby
General Parameter
Display Information Input voltage,output voltage,output frequency,battery capacity,load condition,status information
Protection Overload,Short-circuit,High-voltage input,Low-voltage input,Overheat
Size(W*D*H)(mm) 418*208*193.2mm 458*210*216mm 542.5*294*240.7mm
Net weight(kgs) 13 15 17 19 21 24 32 39
The specification is only for reference.Subject to change without prior notice.




We got ISO9001 and CE certificates
2kw pure sine wave hybrid solar inverter

Packaging & Shipping

  Cartons or wooden box, Or according to customer's need.

2kw pure sine wave hybrid solar inverter2kw pure sine wave hybrid solar inverter



Our Services



  • Software upgrade service;

  • Free provides of spare parts within warranty

  • Online/Onsite training of installation, debugging, maintenance, reparation, etc.

  • Consolidation Service( only peripherals of our products)

  • Promotion Support



Company Information

  Founded in 2009, Foshan SC Power Technology Ltd. is a National Key Support High-Tech Enterprise which integrated with R&D, production and marketing of Solar Inverter, Solar MPPT Controller, Hybrid Inverter (inverter with controller) and related solar power system products.



 2kw pure sine wave hybrid solar inverter





FAQ

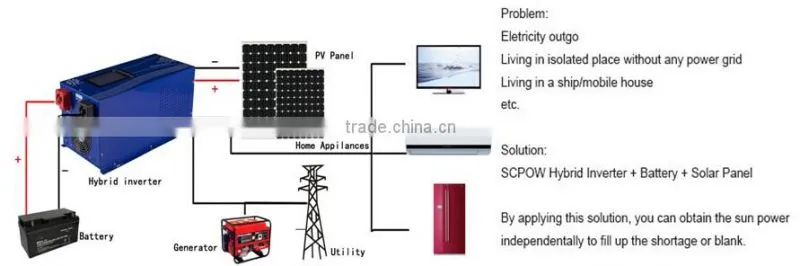

 How does our product work ?







Off Grid Systems - Can I run my home?


Can I power my entire home with a SCP off-grid system?

Yes, thousands of people round the world use SCP inverters for the full-time supply of electric power to their homes and businesses



Batteries
What is Three-Stage Charging?

Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:

Bulk: Replaces 70-80% of the battery's state of charge at the fastest possible rate.

Absorption: Replenishes the remaining 20-30% of charge, bringing the battery to a full charge at a slow, safe rate.

Float: Voltage is reduced and held constant in order to prevent damage and keep batteries at a full charge.
