4KW Solar System in Dubai Use Small Off-grid Solar Inverter

4KW Solar System in Dubai Use Small Off-grid Solar Inverter photo-1

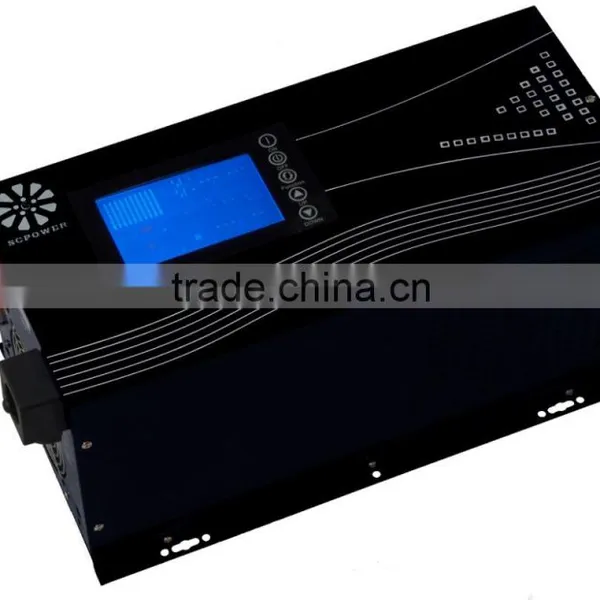

4KW Solar System in Dubai Use Small Off-grid Solar Inverter photo-2

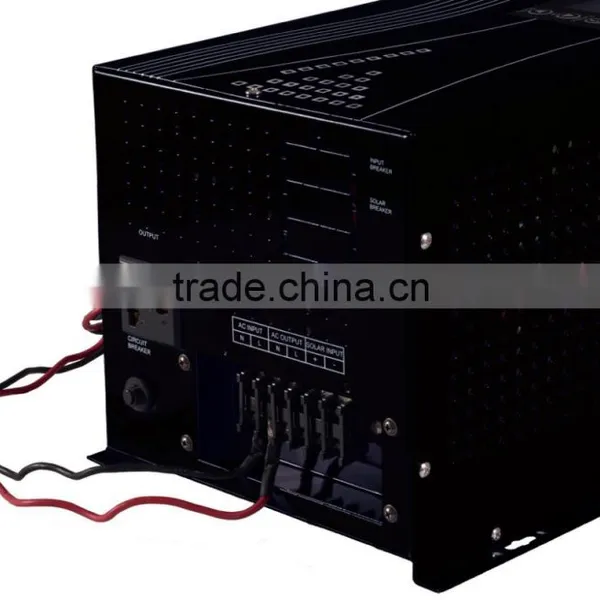

4KW Solar System in Dubai Use Small Off-grid Solar Inverter photo-3

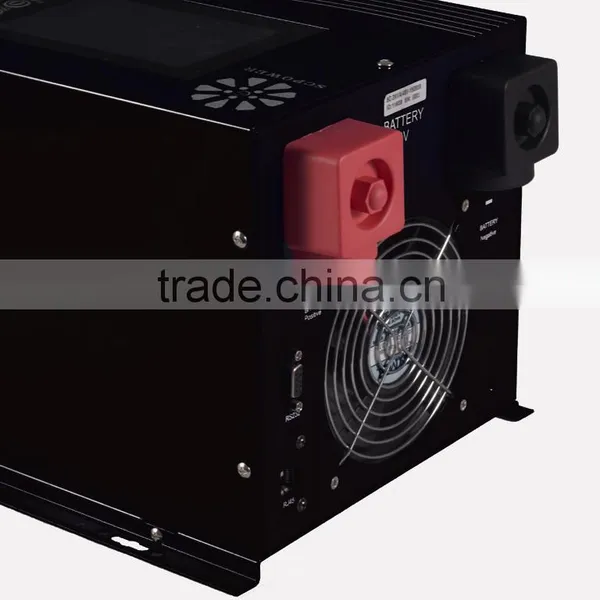

4KW Solar System in Dubai Use Small Off-grid Solar Inverter photo-4

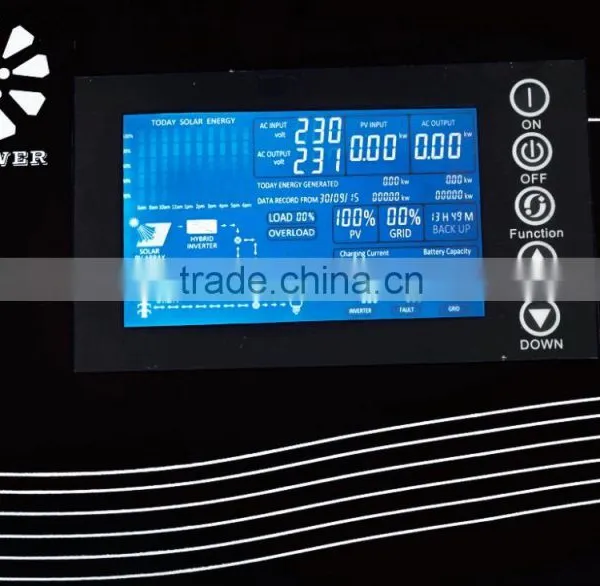

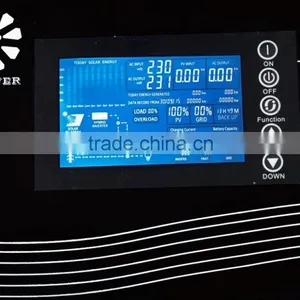

4KW Solar System in Dubai Use Small Off-grid Solar Inverter photo-5

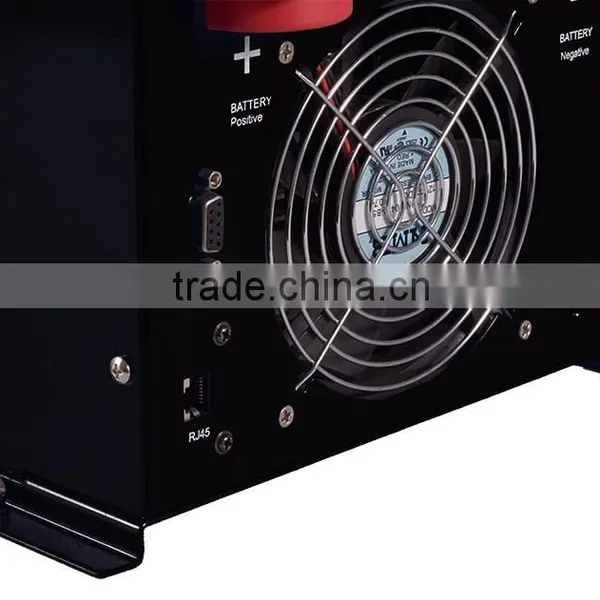

4KW Solar System in Dubai Use Small Off-grid Solar Inverter photo-6
US$ 100 - 200 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
scpow
Model Number:
SC-G 4KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name scpow
Model Number SC-G 4KW
Application Other, power conversion, home/shop/ civil applications
Rated Voltage Other, 24V or 48V
Maximum Current 1-50A

4KW solar system in dubai use small off-grid solar inverter



This is Fiona Yang, thanks for visiting our alibaba website.I will follow your order.

Please feel free to contact me.







How is SCP factory different from other suppliers?



1. Our factory SCP specialized on home/shop type on/off-grid solar inverters

    and we owned core technology and patents



2. SCP self-developed database, PCB, programming and software, 100% coincide completely



3. Unique technical system, paraonline technique and relative invention patent



4. MPPT charging current up to 100A

   AC charging current scope 1-50A(adjustable)

   Automatic recognition of battery charging current



5. Other details

Toroidal Transformer

Low Standby Consumption 1-6W (under sleep mode)/≤1A(under normal mode)

Quiet (Noise<45db)

Multiple Protections:

Charging Current: 0-50A adjustable

Different Batteries acceptable

Wide Range Application

“IR” MOSFET

Pure Sine Wave

Multifunction design AVR, UPS



4KW solar system in dubai use small off-grid solar inverter



  4KW solar system in dubai use small off-grid solar inverter





Product Description



Parameter

Series 1000VA 1500VA 2000VA 3000VA 4000VA 5000VA 8000VA 10KVA
Rate Output Power 800W 1200W 1600W 2400W 3200W 4000W 6400W 8000W
Battery (Lead-acid battery) 12V/24V 24V/48V 48V/96V
Charging Parameter
Charging Mode(Setting) PV charge
PV charge + Utility charge
MPPT solar controller Voltage 12V/24V 24V/48V 48V/96V
Current 20A 25A 30A 50A
Max PV Input Voltage 72V/144V 144V/220V
PV Charge Efficiency 95%-99%
Utility AC Charge current 1-50A adjustable
Inversion Parameter
AC Output Voltage 220V±3% or 230V±3% or 110V±3%
Frequency 50Hz±0.5 or 60Hz±0.5
Output wave type Pure sine wave output,Total Harmonic Distortion THD3%
Overload Protection >120% 1min,>130% 10s
Power Consumption
(Under normal working mode)
0.4A 12V:0.9A 12V:0.7A 24V:0.7A 0.6A 0.65A 0.7A 0.75A
24V:0.7A 24V:0.7A 48V:0.5A
Power Consumption
(Under sleep mode)
1-6W
Conversion Efficiency 85%-92%
Utility Mode
AC Input 220V±35% or 110V±35% 50Hz or 60Hz
AC Output 220V±5% or 110V+5% 50Hz or 60Hz
(AC first or DC first) priority
UPS Output (Setting) AC first DC standby
DC first AC standby
General Parameter
Display Information Input voltage,output voltage,output frequency,battery capacity,load condition,status information
Protection Overload,Short-circuit,High-voltage input,Low-voltage input,Overheat
Size(W*D*H)(mm) 418*208*193.2mm 458*210*216mm 542.5*294*240.7mm
Net weight(kgs) 13 15 17 19 21 24 32 39
The specification is only for reference.Subject to change without prior notice.



  4KW solar system in dubai use small off-grid solar inverter
4KW solar system in dubai use small off-grid solar inverter

We got ISO9001 and CE certificates
4KW solar system in dubai use small off-grid solar inverter

Packaging & Shipping



Cartons or wooden box, Or according to customer's need.

4KW solar system in dubai use small off-grid solar inverter4KW solar system in dubai use small off-grid solar inverter







Our Services



  • Software upgrade service;

  • Free provides of spare parts within warranty

  • Online/Onsite training of installation, debugging, maintenance, reparation, etc.

  • Consolidation Service( only peripherals of our products)

  • Promotion Support



Company Information



 4KW solar system in dubai use small off-grid solar inverter





FAQ

 How does our product work ?









Off Grid systems - Reducing utility costs


My utility bills are very high, and I want to switch to off-grid solar power to save money, how much money can I save?

You likely will not save any money. A solar and off-grid electrical system designed to be large enough to off-set high utility bills would be prohibitively expensive. Reducing your energy consumption is the single most effective way to lower utility bills. The typical off-grid home uses well under 10 kW/h of power per day. If your consumption can be reduced to that level you are a good candidate for an independent electrical system.
