Three Stages Charge MPPT Solar Charge Controller for Home Use

Three Stages Charge MPPT Solar Charge Controller for Home Use thumbnail-1
Three Stages Charge MPPT Solar Charge Controller for Home Use thumbnail-2
Three Stages Charge MPPT Solar Charge Controller for Home Use thumbnail-3
Three Stages Charge MPPT Solar Charge Controller for Home Use thumbnail-4
Three Stages Charge MPPT Solar Charge Controller for Home Use thumbnail-5
Three Stages Charge MPPT Solar Charge Controller for Home Use thumbnail-6
Three Stages Charge MPPT Solar Charge Controller for Home Use photo-1
Three Stages Charge MPPT Solar Charge Controller for Home Use photo-2
Three Stages Charge MPPT Solar Charge Controller for Home Use photo-3
Three Stages Charge MPPT Solar Charge Controller for Home Use photo-4
Three Stages Charge MPPT Solar Charge Controller for Home Use photo-5
Three Stages Charge MPPT Solar Charge Controller for Home Use photo-6
US$ 80 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
scpow
Model Number:
SC-MC 20A
Contact Supplier Request Quote Chat Now
Foshan SC Power Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name scpow
Model Number SC-MC 20A
Application Other, control solution of the power, home/shop/ civil applications
Rated Voltage Other, 12V or 24V or 48V
Maximum Current 10-60A

SC-MC MPPT 20A  Three stages charge MPPT solar charge controller for home use





 Three stages charge MPPT solar charge controller for home use







How is SCP factory different from other suppliers?



1. Our factory SCP specialized on home/shop type on/off-grid solar inverters

    and we owned core technology and patents



2. SCP self-developed database, PCB, programming and software, 100% coincide completely



3. Unique technical system, paraonline technique and relative invention patent



4. MPPT charging current up to 100A

   AC charging current scope 1-50A(adjustable)

   Automatic recognition of battery charging current



5. Our Services:

  • Software upgrade service;

  • Free provides of spare parts within warranty

  • Online/Onsite training of installation, debugging, maintenance, reparation, etc.

  • Consolidation Service( only peripherals of our products)

  • Promotion Support











Product Description









Other parameters of this series solar charge controller for your ref.

Parameter
SC-MC Series 20A 25A 30A 40A 50A 60A
Charge Mode MPPT (maximum power point tracking)
Charge Method Three stages: constant current (MPPT), constant voltage, floating charge
MPPT Efficiency 12V/24V/48V ≥99%
Input Characteristics
MPPT Working Voltage Range  12V System DC34V - DC72V
24V System DC34V - DC72V
48V System DC65V - DC144V
Low Input Voltage Protection Point 12V System DC16V
24V System DC30V
48V System DC60V
Low Input Voltage Recovery Point 12V System DC22V
24V System DC34V
48V System DC65V
High Input Voltage Protection Point 12V/24V/48V System DC90V/DC90V/DC180V
High Input Voltage Recovery Point 12V/24V/48V System DC85V/DC85V/DC170V
Maximum PV Power 12V system (W) 290W 350W 460W 570W 700W 900W
24V system (W) 570W 700W 900W 1130W 1400W 1700W
48V system (W) 1130W 1400W 1700W 2270W 2800W 3400W
Charge Characteristics
Selectable Battery Type     (Default Gel battery) 12V/24V/48V System Sealed lead acid, Vented, Gel, NiCd battery (Other types of the batteries optional)
Rated Input Current 12V/24V/48V System 20A 25A 30A 40A 50A 60A
Size: W*D*H (mm) 241*276*100
Net weight (kgs) 3 3 3 3 3 3.5
The specification is only for reference. Subject to change without prior notice.





We got ISO9001 and CE certificates
Three stages charge MPPT solar charge controller for home use

Packaging & Shipping

  Cartons or wooden box, Or according to customer's need.

Three stages charge MPPT solar charge controller for home useThree stages charge MPPT solar charge controller for home use



Our Services



  • Software upgrade service;

  • Free provides of spare parts within warranty

  • Online/Onsite training of installation, debugging, maintenance, reparation, etc.

  • Consolidation Service( only peripherals of our products)

  • Promotion Support



Company Information



We'll make greater efforts to support you on the price and technique; we are worthwhile to be your long term partner.



 Three stages charge MPPT solar charge controller for home use





FAQ

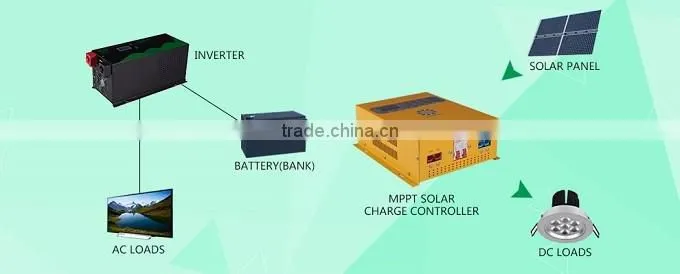

 How does our product work ?

 Three stages charge MPPT solar charge controller for home use



Q1 : What is you advantages?

  • We are professional inverter manufacturer for many years
  • Excellent workers and skilled engineers
  • We make great efforts to provide every customer high quality, reasonable price and excellent service.
  • We can guarantee to send the goods on time. And also accept any transportation ways that you require

Q2 : How do you control the production quality

  • For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard
  • In production  we have 4 times function testing all of our products with 100% burn-in testing
  • 100% QC testing before delivery



Q3 : Do you accept OEM/ODM?

  •  ODM&OEM are warmly welcomed !!!


Q4 : what’s your payment?

  • Payment terms of T/T, L/C at sight, Western Union, PayPal
  • Samples and trial order accept  PayPal, T/T & Western Union. normal order accept T/T & Western Union
  • 30% ADVANCE DEPOSIT after buyer's confirmed payment, the balance should be paid before shipping when goods are ready.
