SC-MCA MPPT 40A off Grid Solar Charge Controller

SC-MCA MPPT 40A off Grid Solar Charge Controller photo-1

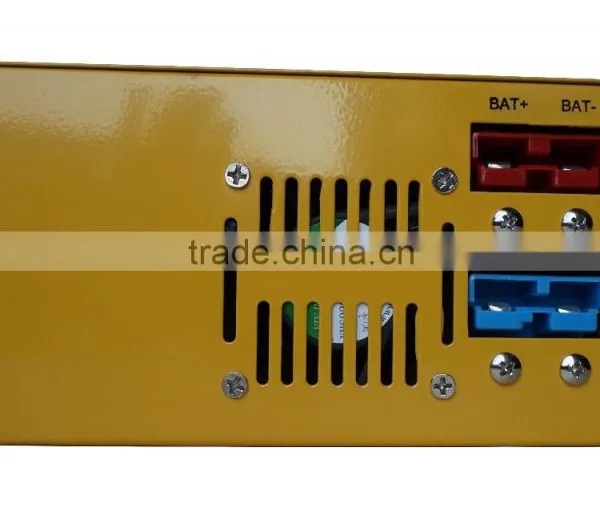

SC-MCA MPPT 40A off Grid Solar Charge Controller photo-2

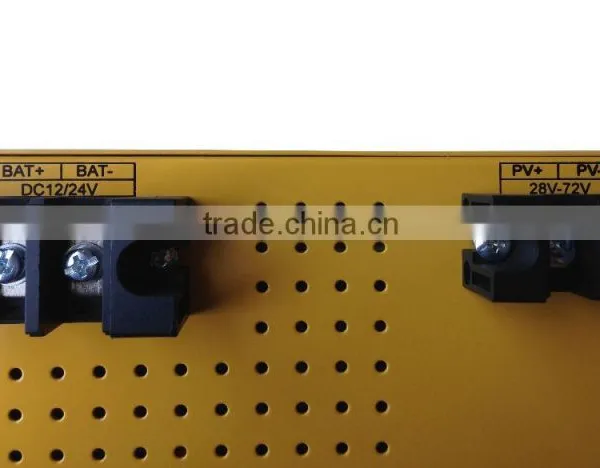

SC-MCA MPPT 40A off Grid Solar Charge Controller photo-3

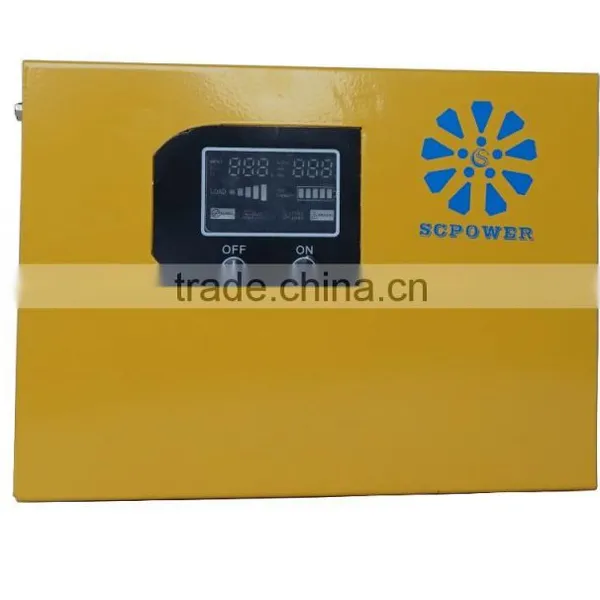

SC-MCA MPPT 40A off Grid Solar Charge Controller photo-4

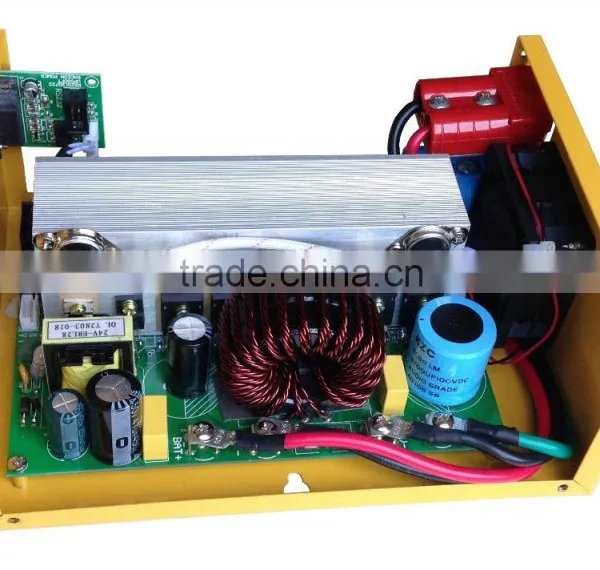

SC-MCA MPPT 40A off Grid Solar Charge Controller photo-5

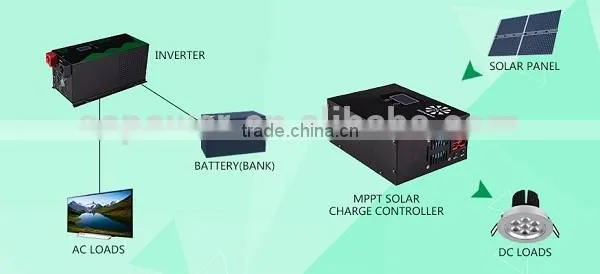

SC-MCA MPPT 40A off Grid Solar Charge Controller photo-6
US$ 80 - 80 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
scpow
Model Number:
SC-MCA 40A
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name scpow
Model Number SC-MCA 40A
Application Other, control solution of the power, home/shop/ civil applications
Rated Voltage Other, 12V or 24V or 48V
Maximum Current 15-60A

SC-MCA MPPT 40A off grid solar charge controller

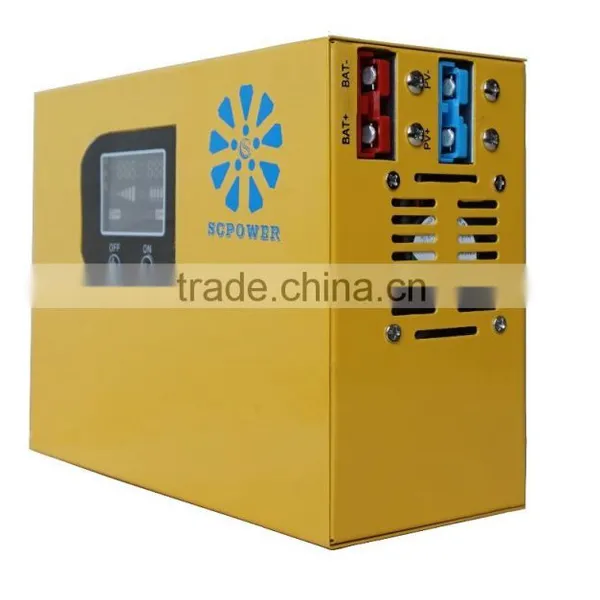

Yellow or black color cabinet is for your option







 SC-MCA MPPT 40A off grid solar charge controller







How is SCP factory different from other suppliers?



1. Our factory SCP specialized on home/shop type on/off-grid solar inverters

    and we owned core technology and patents



2. SCP self-developed database, PCB, programming and software, 100% coincide completely



3. Unique technical system, paraonline technique and relative invention patent



4. MPPT charging current up to 100A

   AC charging current scope 1-50A(adjustable)

   Automatic recognition of battery charging current









Product Description

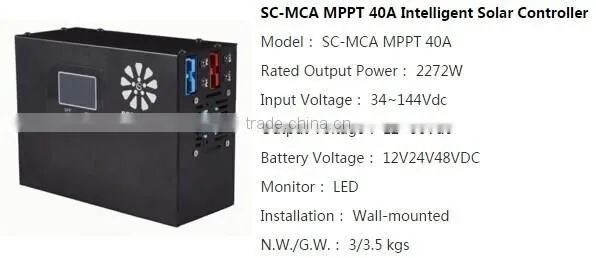

 SC-MCA MPPT 40A off grid solar charge controller







Other parameters of this series solar charge controller for your ref.

Parameter
SC-MCA Automatic Recognition Series 15A 20A 25A 30A 40A
Charge Mode MPPT (maximum power point tracking)
Charge Method  Three stages: constant current  (MPPT), constant voltage, floating charge
System Type DC12V/24V/48V Automatic recognition
MPPT Efficiency 12V/24V/48V 96.5%
Input Characteristics
MPPT Working Voltage Range 12V system DC34V - DC72V
24V system DC34V - DC72V
48V system DC65V - DC144V
Low Input Voltage Protection Point 12V system DC16V
24V system DC30V
48V system DC60V
Low Input Voltage Recovery Point 12V system DC22V
24V system DC34V
48V system DC65V
High Input Voltage Protection Point 12V/24V/48V system DC90V/DC90V/DC180V
High Input Voltage Recovery Point 12V/24V/48V system DC85V/DC85V/DC170V
Maximum PV Power 12V system (W) 213 284 355 426 568
24V system (W) 426 568 710 852 1136
48V system (W) 852 1136 1420 1704 2272
Charge Characteristics
Selectable  Battery Types (Default Gel battery) 12V/24V/48V system Sealed lead acid, Vented, Gel, NICd battery
Rated Input Current  12V/24V/48V system 15A 20A 25A 30A 40A
Output Discharge Characteristics
Rated Output Current 40A
The Output Control  On mode, Off mode
Output Control Set Mode  Controller button or PC software
Output Discharge Characteristics
PC (communication port) RS232
Size: W*D*H (mm) 220*161*91
Net Weight (kgs) 2.5 3
The specification is only for reference. Subject to change without prior notice.



We got ISO9001 and CE certificates
SC-MCA MPPT 40A off grid solar charge controller

Packaging & Shipping

  Cartons or wooden box, Or according to customer's need.

SC-MCA MPPT 40A off grid solar charge controllerSC-MCA MPPT 40A off grid solar charge controller



Our Services



  • Software upgrade service;

  • Free provides of spare parts within warranty

  • Online/Onsite training of installation, debugging, maintenance, reparation, etc.

  • Consolidation Service( only peripherals of our products)

  • Promotion Support



Company Information



 SC-MCA MPPT 40A off grid solar charge controller





FAQ

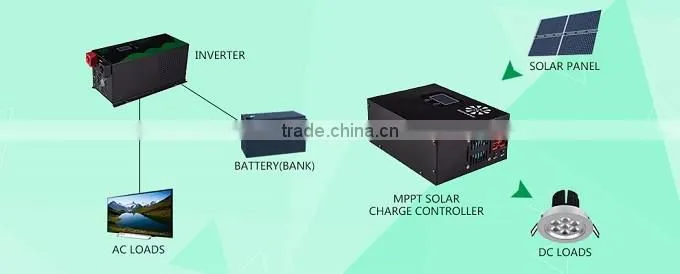

 How does our product work ?





SC-MCA MPPT 40A off grid solar charge controller



Q1 : What is you advantages
a).We are professional inverter manufacturer for many years

b) Excellent workers and skilled engineers
c) We make great efforts to provide every customer high quality, reasonable price and excellent
    service.
 d) we can guarantee to send the goods on time. And also accept any transportation ways that
    you require



Q2 : How do you control the production quality


a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard
b) in production have 4 times function testing
c) all of our products with 100% burn-in testing
d) 100% QC testing before delivery



Q3 : Do you accept OEM/ODM?
A3:  ODM&OEM are warmly welcomed !!!


Q4 : what’s your payment?
A4:  Payment terms of T/T, L/C at sight,Western Union, PayPal


Samples and trial order accept PayPal ,T/T & Western Union. normal order accept T/T & Western Union

 30% ADVANCE DEPOSIT after buyer's confirmed payment, the balance should be paid before shipping when goods are ready.
