Specifications
pet bottle making machine1.cavity:1cavity
2.output:500b/h
3.bottle size:3-5L

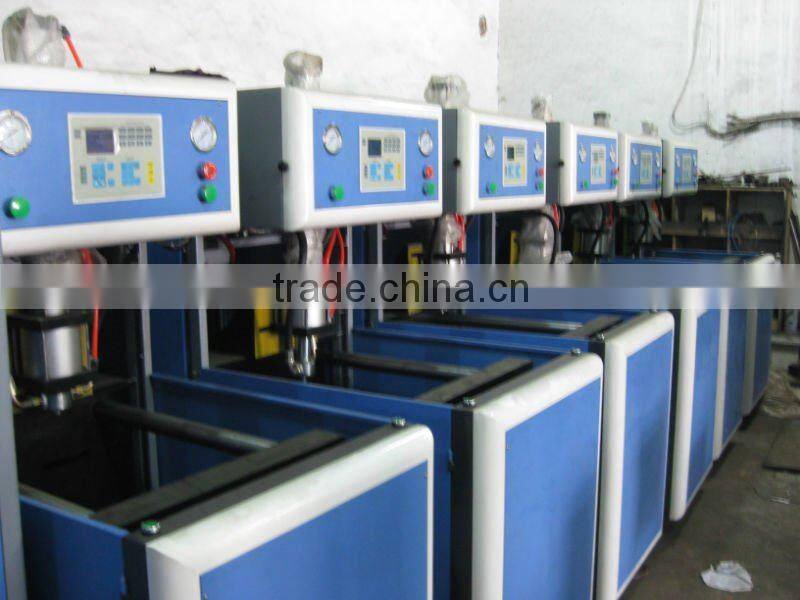

1. pet bottle making machine
Suitable for blowing CO2 bottles, mineral water bottles, pharmaceutical bottles, oil bottles, cosmetic bottles and hot filling bottles

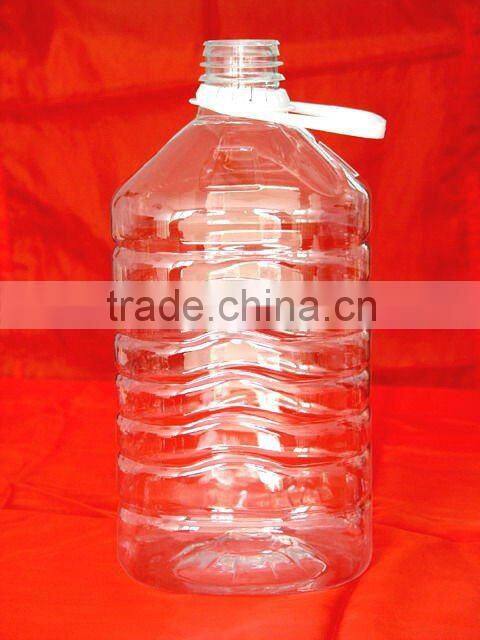

1.mineral water bottle, oil bottle, juice bottle
2.cavity: 1,2,3,4
3.Micro PLC
4.two linkage clamping
5.infra-red preheater
Characteristics:
1. Two-bar linkage clamping design increases clamping force.
2. We adopt the high technology of Micro PLC controller on this bottle blowing machine.
3. This bottle blow molding machine works properly and stably.
4. Infra-red heater guarantees equilibrium temperature inside the preform and on its surface.
2.parameter
Main parts |
item |
unit |
DY-500 |
Molding |
Container volume |
ml |
6000 |
Theoretical output |
pcs |
400 |
|
Clamping distance |
mm |
225 |
|
Max thickness of mold |
mm |
260 |
|
Max container height |
mm |
410 |
|
Max container diameter |
mm |
180 |
|
size |
m |
2.1x0.8x1.8 |
|
Heating |
Electrical system |
Voltage/frequenct |
380v/50-60HZ |
Heating power |
kw |
12 |
|
carriage unit |
96 |
72 |
|
size |
m |
1.8x0.7x 1.5 |
|
Air compressor |
Air consuming |
L/min |
0.7 |
Wording pressure |
mpa |
30 |
|
Power |
kw |
7.5 |
|
size |
m |
1.58x0.8x1.15 |
