Usage:
this machine is an equipment of rough and accurate grinding continuous beating in paper making industry pulping system, can also be an efficient equipment of pulp slag regrinding and waste paper repulping.

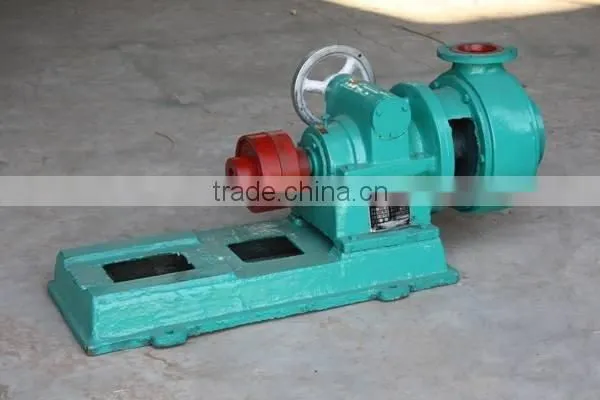

Primary structure and working principle: it consists of V-belt pulley, reducer and feeding spiratron. The working principle is conveying the sizing agent which conveyed by spiratron to the grinding room, and grinding to accepted stock by cutting disc.
Technical parameters:
Model |
250 type pulp grinding machine |
330 type pulp grinding machine |
Millstone diameter mm |
Φ250 |
Φ330 |
Flow/H |
3-15 |
3-20 |
Pulp density% |
3-4 |
3-4 |
Pulp inlet and outlet diameter mm |
φ80 |
φ100 |
Rotation speed r/min |
1470 |
1470 |
Motor power KW |
Y160M-4-11 |
Y180L-4-22 |
|
Overall dimension (length,width,height) mm |
1140×450×480 |
1600×580×680 |
