Advanced Technology Up-flow Pressure Screen

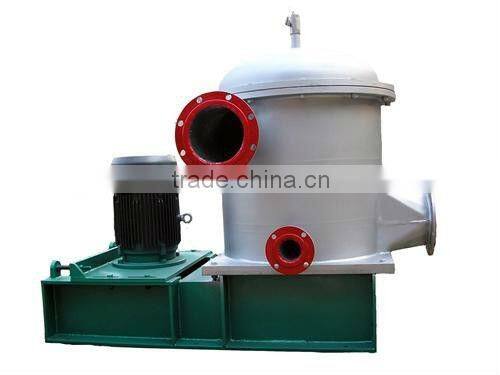

Advanced Technology Up-flow Pressure Screen photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Product Type:
Other, Up-flow pressure screen
Processing Type:
Other, pulping equipment
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai etc.
Delivery Detail:
Delivery time depends on order quantity.
Product Type Other, Up-flow pressure screen
Processing Type Other, pulping equipment
Place of Origin Henan, China
Brand Name Huaxia
Model Number UV
Certification CE

Up-flow pressure screen

Advanced technology Up-flow pressure screenAdvanced technology Up-flow pressure screen





Introduction:

The up-flow pressure screen is a new regeneration pulp screening equipment developed by our company in the digestion and absorption of advanced technology on the basis of a new type of recycled pulp screening equipment.It can avoid the weight of impurities into the constituency from the bottom admission .The sieve drum, and leaves have a long service life, that is a new updated product used for recycled pulp processing of domestic pressure screen.



Specification:0.3m2,0.6m2,0.8m2,1.5m2,2.5m2

Model

UV0.3

UV0.5

UV0.6

UV1.2

UV2.0

UV3.0

Sieve size mm

1.1--5

Sieve slit size mm

Η0.15-1

Screening area m2

0.3

0.5

0.6

1.2

2.0

3.0

Drum sieve specifications mm

406×258

600×267

600×355

602×634

756×831

1067×1044

Into the slurry concentration%

0.2-6

Into the pulp calibermm

Dg150

Dg200

Dg200

Dg250

Dg300

Dg400

Out of slurry caliber m

Dg150

Dg200

Dg200

Dg250

Dg300

Dg400

Top slag discharge port mm

Dg80

Dg80

Dg80

Dg100

Dg100

Dg125

Production capacity T/D

10-15

20-30

25-40

40-60

80-100

120-150

Pressure screen for recycled pulp / chemical pulping process

Model

UV0.3

UV0.5

UV0.6

UV1.2

UV2.0

UV3.0

Operating speed r / min

800

700

700

700

560

350

Equipped with power kw

18.5-22kw/4

30-37kw-4

37-45kw/4

55-75kw/4

90-110kw/4

110-132kw/4

Pressure screen for paper machine approach flow system

Model

UV0.3

UV0.5

UV0.6

UV1.2

UV2.0

UV3.0

Operating speed r / min

690

580

560

540

450

300

Equipped with power kw

11kw

22kw

30kw

45kw

75kw

90kw
