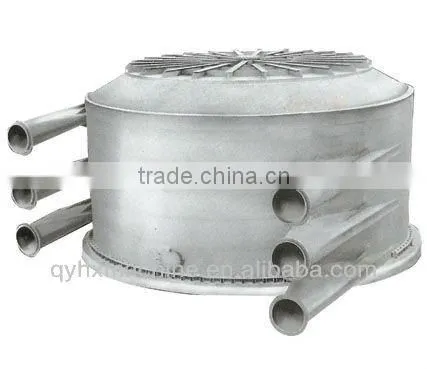

Paper pulp deinking flotation cell
Usage:
KPF type flotation deinking groove is mainly used in paper pulping industry of waste paper deinking for efficient removal of ink particles in the slurry, gooey and filler slurry to obtain high purity, whiteness slurry. The best operating concentration is 1% to 2%, and the tailings after full degassing are excluded as 2 to 5% concentration from the system, which can greatly reduce energy consumption and the usage of chemicals.
The flotation groove is a closed vertical cylindrical structure, whose internal as needed can be divided into 3 to 5 layers, the bottom of each layer has a dummy plate, between which is a small gap.
Technical parameters:
|
Item parameter model |
ZGS1 |
ZGS2 |
ZGS3 |
ZGS5 |
ZGS8 |
ZGS10 |
ZGS15 |
|||||||
|
Effective volume M2 |
1 |
2 |
3 |
5 |
8 |
10 |
15 |
|||||||
Production capacity t/d |
3-4 |
6-8 |
9-12 |
15-20 |
24-32 |
30-45 |
40-80 |
|||||||
Pulp concentration% |
8~15% |
|||||||||||||
Cell body diameter mm |
1200 |
1550 |
1800 |
2200 |
2500 |
2800 |
3500 |
|||||||
Impeller diameter mm |
440 |
440 |
680 |
720 |
820 |
860 |
1050 |
|||||||
Impeller rotation speed r/min |
440 |
440 |
400 |
380 |
340 |
320 |
280 |
|||||||
Pulp discharging door diameter mm |
108 |
159 |
219 |
219 |
219 |
250 |
250 |
|||||||
Dilution door diameter mm |
50 |
89 |
89 |
89 |
108 |
108 |
108 |
|||||||
ZGS Energy-saving type |
Model |
Y160L-6 |
Y180L-6 |
Y200L2-6 |
Y225M-6 |
Y280S-6 |
Y280M-6 |
Y315S-6 |
||||||
Power kw |
11 |
15 |
22 |
30 |
45 |
55 |
75 |
|||||||
We are professional manufacturer for various automatic and semi-Automatic paper machineries and parts of paper mchine , best quality. Your best choice.
1.We will provide you all technical consultation and make the draw and proposal for you.
2.We will send technicians to install and test the machine for you.
3.We will supply best after-sale service.
Our machine has exported to many t country and enjoy great reputation, we have exported to Venezuela, Mexico, Vietnam, Philippines, Thailand, Zimbabwe, Nigeria. South Africa. Uzbekistan, Turkey and so on.
The machine’s average live is more the 13 years, some component are produced by ourselves. You do not need to worry about our machinery's quality. You can come to China to investigate.
If you have interesting in our machinery, please contact us.
We are looking forward your inquiry letter.
