3600 Model Kraft Paper Machine

Company Profiles

  Huaxia Paper Making machinery Co., Ltd is a high tech enterprise specialized in designing and manufacturing paper-making equipment, pulping equipment and paper finish equipment.

  Established in 1982, Huaxia started manufacturing paper-making equipment in early period in China with strong technology, reasonable designs and scientific quality management systems. Over the past 20 years, our enterprise develops rapidly and our production capacity and production level become higher. We are rewarded as honest enterprise by the government.

  Our leading paper machinery products: 600 model, 787 model, 1092 model, 1760 model, 1880 model, 2400 model, 2880 model, 3200 model. We provide accessories and aux equipment and also we can manufacture according to customer’s requirement.

  With our superior products, good service, and honesty, we are looking forward to having bright business with customers.

The process flows of toilet paper:

The process flows of kraft paper: waste paper and cardboard →high concentration aquapulper

→ high frequency vibrating screen  → pulp pump → efficient double disc pulp grinder → pulp pump

→ propeller → pressure screen → slag separator → 3600 kraft paper making machine →

calendar → reeling machine→ rewinder machine

Main equipment list:

According to the client's raw material, require finished production some equipments need change or add. So

please let me know your raw material, net-paper width, gram paper weight and capacity, if you are intersting

in this machine.

The main equipment:

1. Pulp-flowing box: It adopts open-type pulp-flowing box, consisting of pyramid tube, staircase diffuser, distributing roller and box body. Staircase diffusion orifice plate pulp distributor is three-stage diffusion, which made of organic glass and upper and lower lip plates made of stainless steel. The upper lip plates can do full and local adjustment is three-stage diffusion.

2. Fourdrinier part: Wire table is 18000mm. Except draw-out seat made of alumina alloy, table rack is all welded by section steel with 1.5mm stainless steel cladding. Wire part is mainly composed of chest roller, forming board, wire-driving plate, water scrapping board, moisture absorbing box, and vacuum water-absorbing box, vacuum roller, wire-driving roller, electrical wire-tighter, pneumatic corrector, constant-tension wire-tighter, incision needle and margin raising device.

3. Press part: It adopts vacuum absorption injection paper, one streak of vacuum pressing and three streaks of pressing.

4. Drying part: It is set 28 pieces of φ1500mm drying cylinders, including one φ3000mm big cylinder of array type, 6+6+8+1+glueing machine+8 driven by enclosed gear box and lubricated by sparse oil.

5. Driving and control part: It adopts AC frequency conversion speed, drive step by step. Hard tooth surface gear box connected by universal coupling is used, and entire digital closed circle control system is used.

6. Press-polishing and paper reeling: It adopts super press polishing machine and level paper reeling machine.

Remark:

Payment terms: 30% deposit paid by T/T, 70% balance paid by T/T before delivery.

Delivery time: 60 days after receive the deposit.

Installation, commissioning, and training: we will send engineers to buy’s factory to be

responsible for installation, commissioning, and training workers, the buyer need to

pay salary for each person and supply them food, hotel, tickets for coming and returning, and visa.

The installation period will be about 90days.

Guarantee period: one year

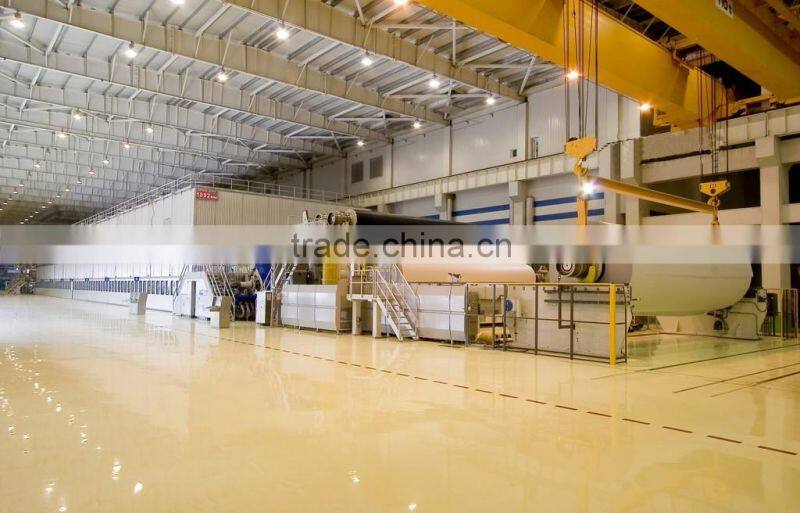

picutres

finishing production pritures
