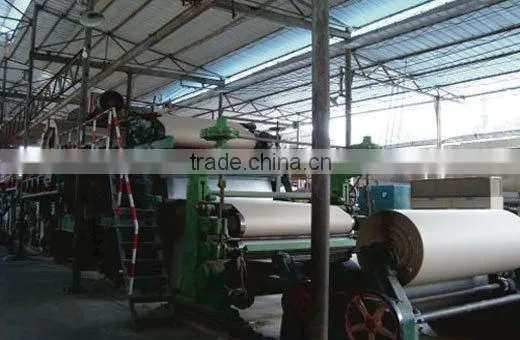

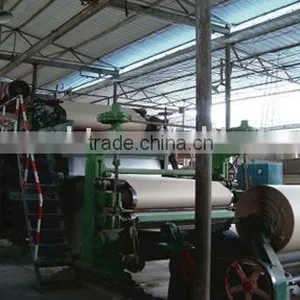

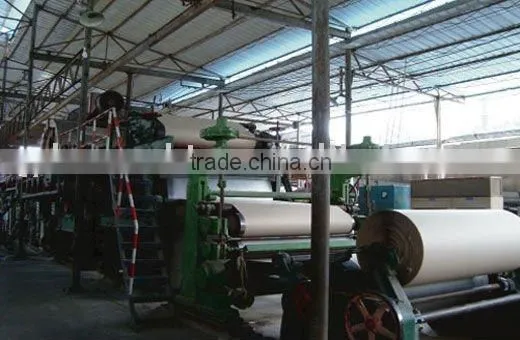

Help Center1880 Model Fluting Paper Machine
Related Products
A. technical parameters:
duction varieties: fluting paper ect.
2.maxi-width: 1880mm
3.grammage: 100-350g/m2
4.rail distance: 2700mm
5.output: 10-20t/d
ing speed: 45-120m/min
7.kind of drive: AC frequency, sectional drive
8.machine design: heavy square box type
9. design standard: national standard export equipment
B. The main equipment:
1. Pulp-flowing box: It adopts open-type pulp-flowing box, consisting of pyramid tube, staircase diffuser, distributing roller and box body. Staircase diffusion orifice plate pulp distributor is three-stage diffusion, which made of organic glass and upper and lower lip plates made of stainless steel. The upper lip plates can do full and local adjustment is three-stage diffusion.
2. Press part: It adopts vacuum absorption injection paper, one streak of vacuum pressing and three streaks of pressing.
3. Drying part: It is set 28 pieces of φ1500mm drying cylinders, including one φ3000mm big cylinder of array type, 6+6+8+1+8 driven by enclosed gear box and lubricated by sparse oil.
4. Driving and control part: It adopts AC frequency conversion speed, drive step by step. Hard tooth surface gear box connected by universal coupling is used, and entire digital closed circle control system is used.
5. Press-polishing and paper reeling: It adopts super press polishing machine and level paper reeling machine.
