Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > 2013 Advanced High Quality 1600mm Wrapping Paper Making Machine

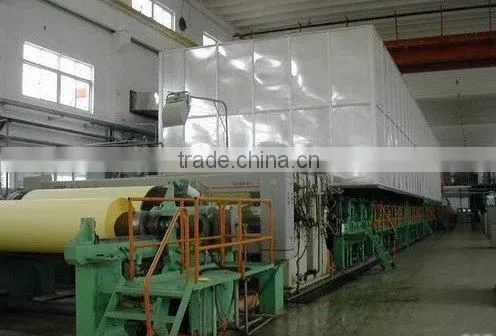

2013 Advanced High Quality 1600mm Wrapping Paper Making Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, 1600mm wraping paper machine
Processing Type:
Other, paper making machine
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Kraft Bag Paper and Kraft Paper Making MachineNegotiableMOQ: 1 Set -
Less Investment 2880 Model Packing Paper Making MachineNegotiableMOQ: 1 Set
-
2640 Model Kraft Paper Making MachineNegotiableMOQ: 1 Set
-
Widely-used Good Reputation 1092 Model Kraft Paper Making MachineNegotiableMOQ: 1 Set
-
Ordinary High Quality 1880 Model Corrugated Paper MachineryNegotiableMOQ: 1 Set
Condition
New
Product Type
Other, 1600mm wraping paper machine
Processing Type
Other, paper making machine
Place of Origin
Henan, China
Brand Name
huaxia
Model Number
1600model
Certification
CE
Warranty
one year
A. Main technical parameters:
- product varieties: cardboard paper, corrugated paper and so on.
- papermaking quantitative:180-350g/m2
- net paper width: 1600mm
- the working speed :40-90m / min
- capacity:28-35t/d
- driving: AC frequency sectional drive
- installed capacity: 149.5kw
- rail distance: 2400mm
- design standard: national standard export equipment
B. The summarize of the key components:
1. cylinder part: including cylinder mould, couch roller, running roller, suction felt box and sparge pipe.
2. press part: preload top and bottom roll, press top and bottom roll, blanket press top and bottom roll, running roller, expander roll, felt suction box sparge pipe, corrector, felt tightener, scraper, rack and working board.
3. drying part: including vat, running roller, spring paper carrying roll, corrector, manual tightener, scraper, rack and working board and so on.
4. drive part: AC frequency sectional drive
5. base part: 230 flange rail, 360 double-groove bottom rail, foundation bolt, wedge.
