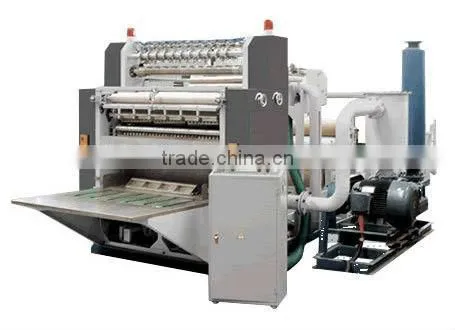

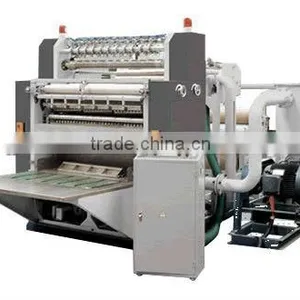

four lines of drawing face tissue Machine
HC-200/4, HC-190/4, HC-180/4 four rows of drawing face tissue machine adopts advanced PLC computer program control, frequency control, automatic counting and dividing the control system, the man-machine interface parameter input display system , high degree of automation, stable and reliable work. Its principle is that base paper can be interactive folded into hinged rectangular stack of paper after embossing or pressure fringes and knife roll slitting and crosscutting. The machine is simple, high production efficiency, slitting, burrs, folded the same time, reducing the production processes, and significant savings in production costs.
Main features:
1. unreeling stand:The two-axis horizontal pneumatic wide belt withdrawal of paper, independent tension adjustment device, adjustment the force of the unreeling paper of different paper product .It is easy to greatly reduce labor intensity.
2. the sheet breaks automatic shutdown function : avoid producing waste in the paperless or breaken paper situation.
3. Embossing or pressure fringes apparatus: to make a wider range of products, in order to adapt to the different quality of the product requirements.
4. The finished folding different width: flexible longitudinal slitting device, slitting width can be adjusted in the width of the range of 100-210mm.
Machine Model |
HC-200/4 |
HC-190/4 |
HC-180/4 |
Product unfolded size |
200X100~210mm |
190x100~210mm |
180X100~210mm |
Finished folded size |
100X100~210mm |
95X100~210mm |
90X100~210mm |
Paper maximum width |
840mm |
||
Base paper maximum diameter |
Φ1100mm(Other size please specify) |
||
Base paper paper core diameter |
Φ76.2mm |
||
Embossing |
Without embossing, steel to steel embossing (Please select) |
||
Pressure fringes |
Independent pneumatic(must be ordered) |
||
Parameter setting |
Man-machine interface |
||
Machine speed |
2000~3200 Sheets / minute |
||
Vacuum system |
Two 7.5KWvortexvacuum pump |
||
