Rain Gutter Cold Roll Forming Machine
Roll Forming Line Introduction
Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table
Work Flow

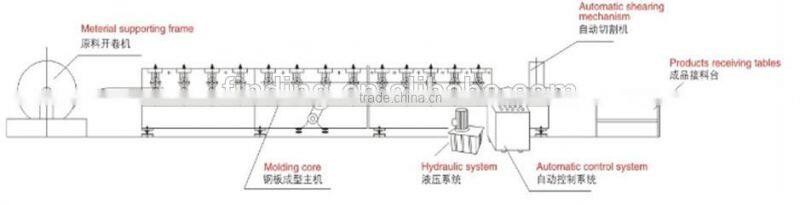

manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table
Machine Components
| Manual Uncoiler |
It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T Inner diameter: 500-508mm |
| Feeding Table |
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
| Hydraulic System |
Power:4kw,Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. |
| Computer Control Cabinet |
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. Mitsubishi PLC |
| Cutting System |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
| Output Table | It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. |
| Main Roll Forming Machine |
Material of rollers:45# steel,roller surfaces polishing, hard plating . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped |

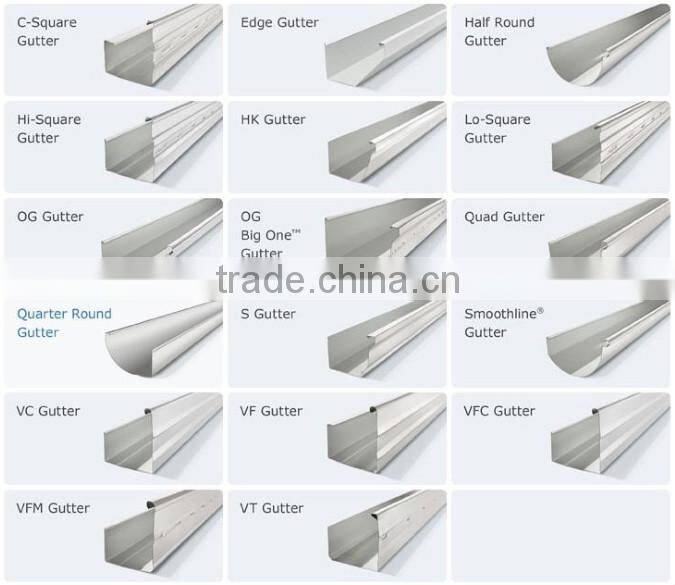

product model
