Specifications
slitting line1. CE certification
2. 20 years' experience
3. One Years warranty, lifetime service

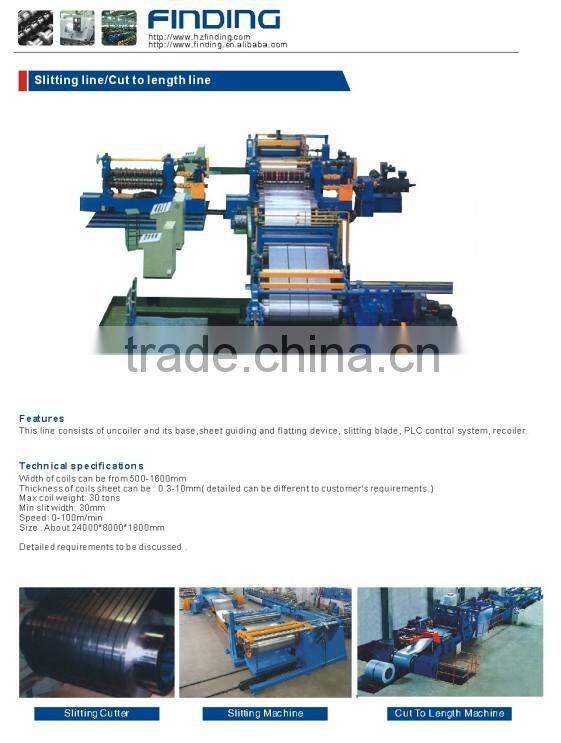

Simple slitting machine line
Components for the machine
un-coiler unit, sheet guiding and flatting device, slitting blade, PLC control system, recoiler.
Main technical parameters
- Material cutting: Cold roll steel, galvanize roll, stainless steel , aluminum
- Width of coils: from 500-1600mm
- Thickness of coils sheet: 0.3-10mm (can be different to customer’s requirements)
- Max coil weight: 30 tons
- Min slit width: 30mm
- Speed: 0-100m/min
- Size: about 24000x8000x1800mm
Product feature
Cut to Length Lines can do uncoiling, leveling, measuring, cross-cutting to length and stacking work. It mainly includes uncoiler, leveler, measuring encoder, shearer, conveyor, stacker, hydraulic system, pneumatic system and electrical system, etc., the line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating.
Cut to length line is controlled by NC servo system. It has PLC controlled the length measurement. The information of length, shearing numbers and speed can be input to the PLC systems. When the need shearing number is reached the line can stop automatically. The line speed can be adjusted, it has an encoder with high precision, and whole line can work automatically and operate easily, smooth sheet can be made.
Equipment photos
Company brief
Following the steel construction development, our company has been engaged in manufacturing Roll Forming Machines more than 20 years, we have the ability to produce custom roll formed shapes, and our products already have a well-deserved reputation among our clients.
There are over 20 series of steel roll forming machines we have developed which can meet all requirements of the steel constructions, and we also devoted ourselves to the research & development of various kinds of other products related to steel structure.
