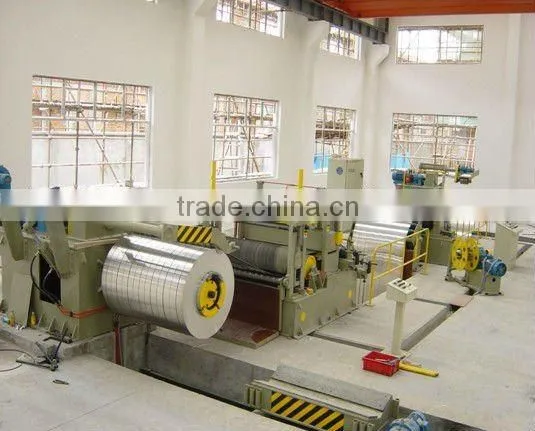

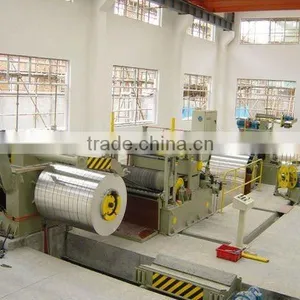

Slitting Machine Line
US$ 150,000 - 250,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Tile Cutting Machine
Tile Type:
Steel
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cutting to Length LineNegotiableMOQ: 1 Set -
Simple Slitting Machine Accessory EquipmentNegotiableMOQ: 1 Set
-
High Speed Slitting Machine LineNegotiableMOQ: 1 Set
-
Embossed Aluminum Sheet, Packaging Machine Automatic Machine, High Quality Embossing Machine PriceNegotiableMOQ: 1 Set
-
Steel Strip Coil Slitting LineUS$ 65,000 - 185,000MOQ: 1 Set
Type
Tile Cutting Machine
Tile Type
Steel
Place of Origin
Zhejiang, China
Brand Name
FINDING
Model Number
FDSL
Specifications
steel sheet slitting line1.Width of coils can be from: 500-1800mm
2.Max coil weight: 30tons
3.Min slit width:30mm
4. CE
steel sheet slitting machine line, slitting line, slitting machine line, metal slitting line, metal slitting machine, high speed slitting machine line
Product's components:
This line includes supportable table, coil car, hydraulic uncoiler, sheet guiding equipment, leveling system, shearing equipment, liner equipment, slitting equipment, slitting equipment, coil arm, computer control system and recoiler equipment.
Technical Parameters:
Technical Parameters:
Material Specification: galvanized steel sheet at stress 235Mpa (33KSI); less than 450 Mpa.
Thickness: 0.3mm~10mm
Coil width: 500~1800mm
Coil inner diameter: 508mm~610mm
Coil out diameter: less than 2200mm
Max coil weight: 15T
Product coil inner diameter: 508mm
Product coil out diameter: less than 1500mm
Product coil weight: 10T
Production speed: 0-120m/min
The slit width tolerance: + -0.05 at thickness 0.5-1.0mm;+ -0.1mm at thickness 1.1-2.0 mm; + -0.15 at thickness 2.1-3.0mm
Slitting straighten tolerance: 0.2mm/m
The slitting burr: less than 0.05mm
Min slit width: 30mm
The slit strip quantity: 20 strips
The waste edge: 3-15mm
The quantity of waste edge: 2 strips
The Max weight of waste edge: less than 150kgs/roll
The main power: 220kw
The weight of the line: about 68T
machine will be designed as per customer's excat requirements
