Door frame garage door manufacturer roll forming machine

Specifications

    Door frame garage door manufacturer roll forming machine

Components for the machine

un-coiler unit, coil sheet guiding device, main roll forming system, cutting device, hydraulic station, PLC control system and run out table.

Main technical parameters

1. Suitable material: color steel sheet or galvanized steel sheet

2. Thickness of raw material: 0.5-0.7mm

3. Yield strength of material: 235Mpa-345Mpa

4. Working speed: about 18-22m/min

5. Power requirement:

    Main motor power: 4kw (depend on final design)

    Hydraulic station power: 2.2kw (depend on final design)

6. Controlling system: Mitsubishi PLC & converter

7. Uncoiler’s loading capacity   Max. Capacity:  5000kgs(can be increased to be 10T)

8. Cutter material: Cr12 mould steel

Product feature

The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.

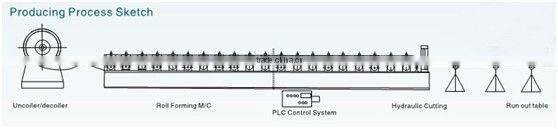

Working Flow

Decoiling the sheet -- Sheet guiding -- Roll forming -- Measure length -- Cutting the sheet -- Sheets to the run out table

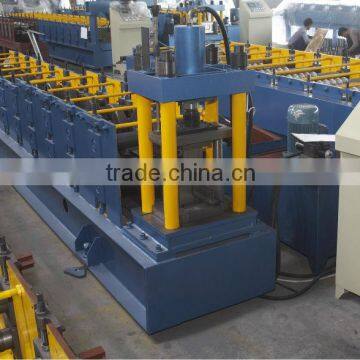

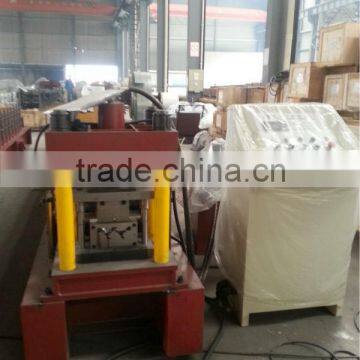

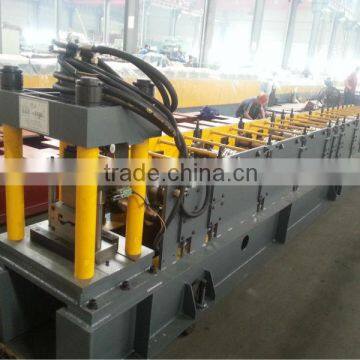

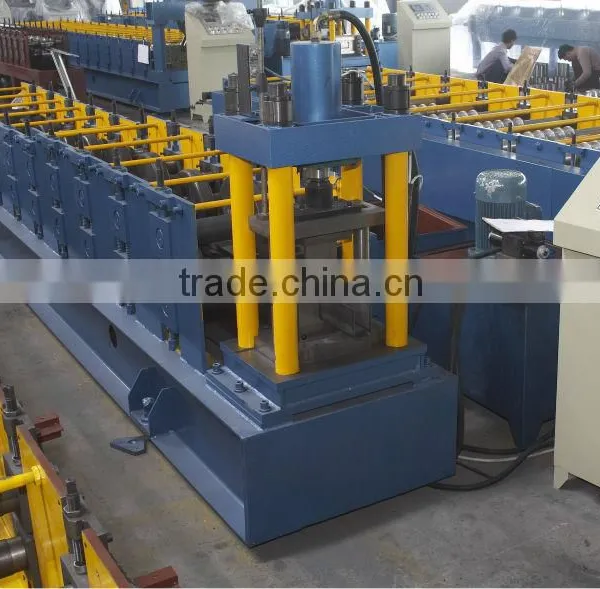

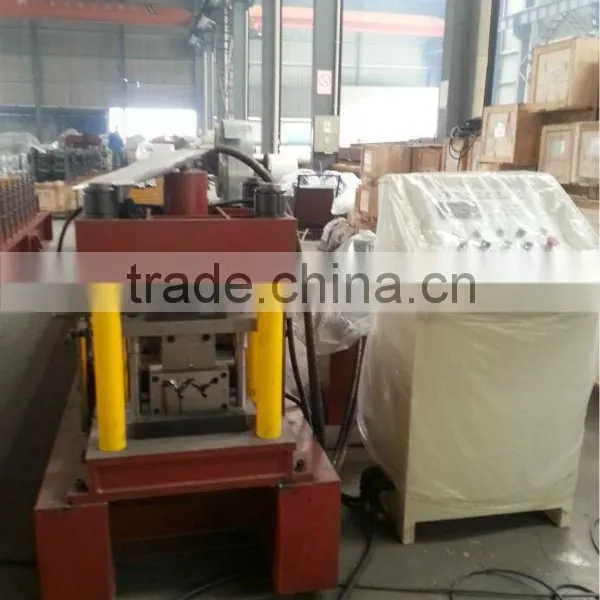

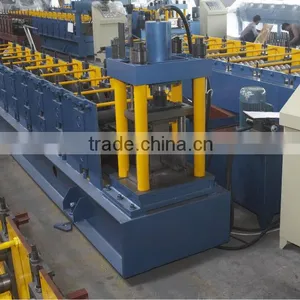

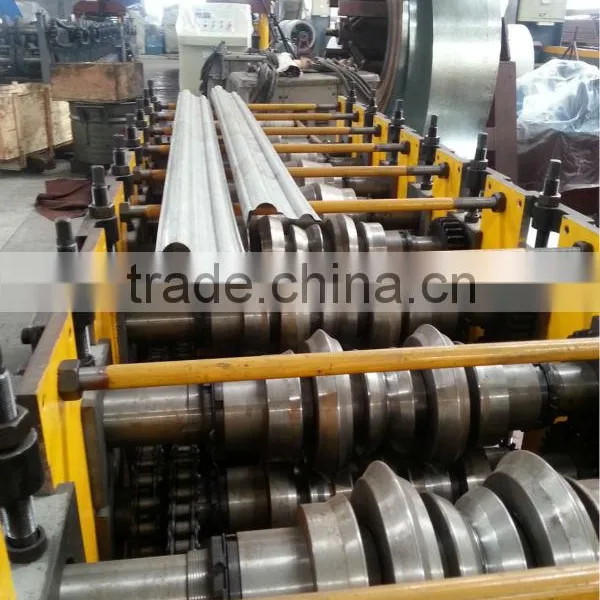

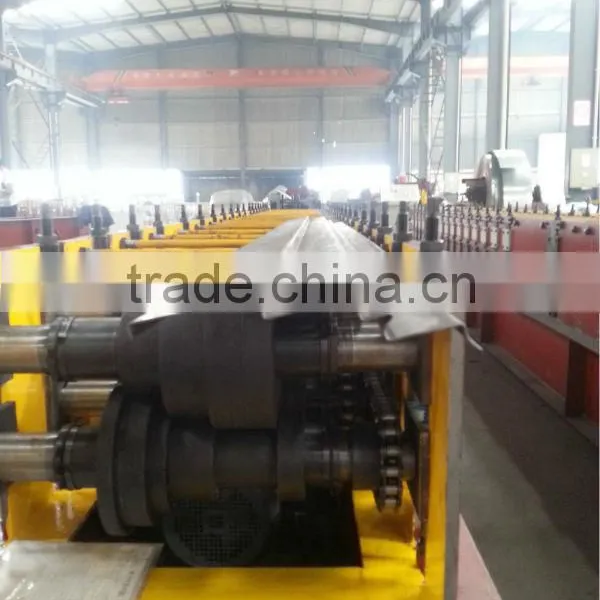

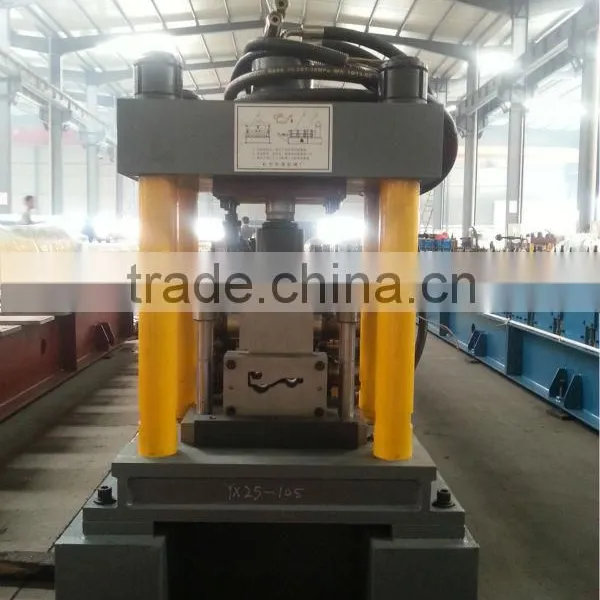

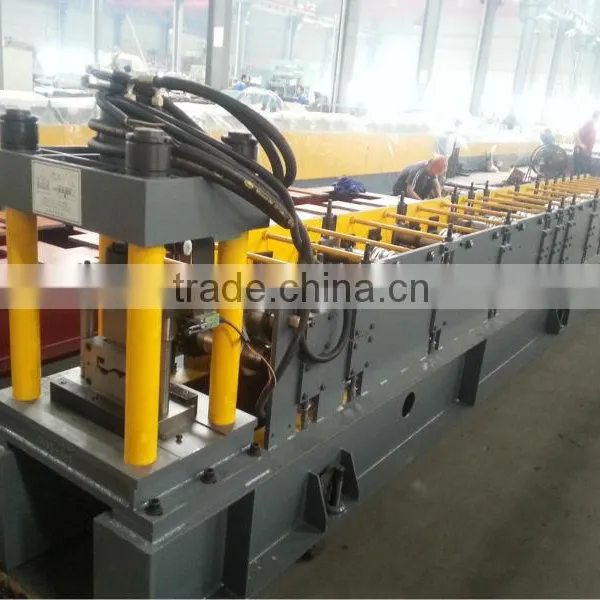

Equipment photos

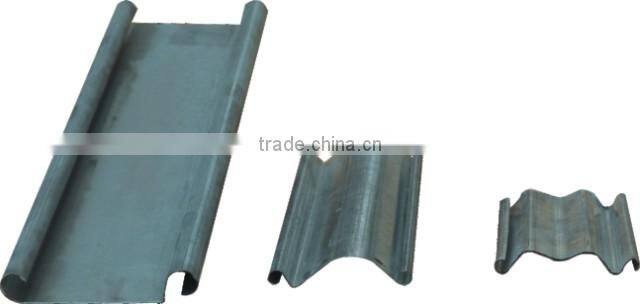

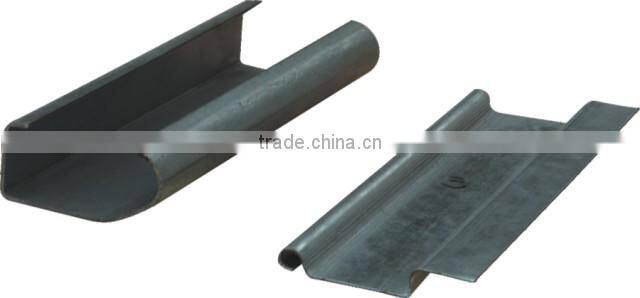

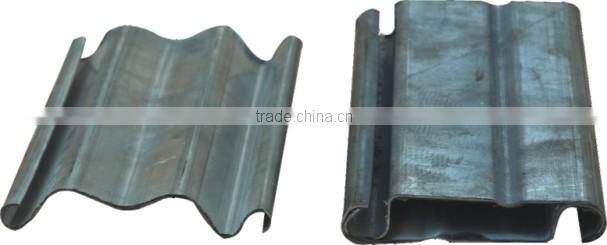

Finished product photos

Company brief

Following the steel construction development, our company has been engaged in manufacturing Roll Forming Machines more than 20 years, we have the ability to produce custom roll formed shapes, and our products already have a well-deserved reputation among our clients.

There are over 20 series of steel roll forming machines we have developed which can meet all requirements of the steel constructions, and we also devoted ourselves to the research & development of various kinds of other products related to steel structure.
