Specifications
Dry wall roll forming machine1. CE certification
2. 20 years' experience
3. One Years warranty, lifetime service

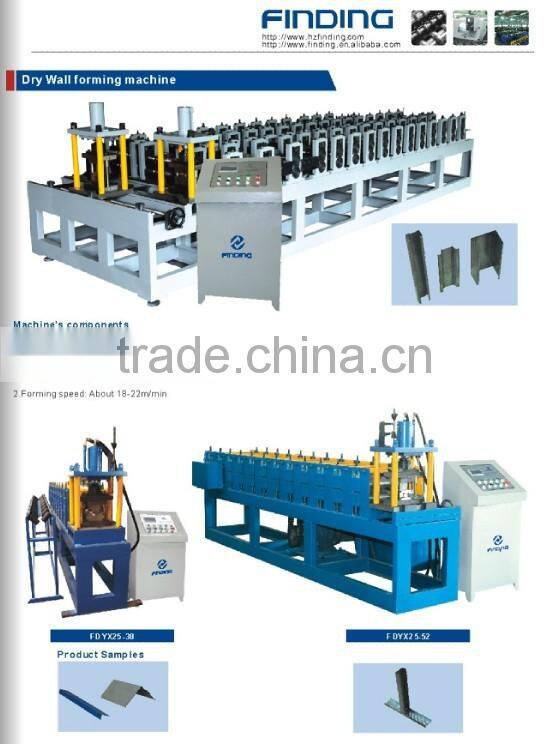

Light keel ceiling machine T shape dry wall forming machine
Components for the machine
un-coiler unit, coil sheet guiding device, main roll forming system, punching system (optional), cutting device, hydraulic station, PLC control system and run out table.
Main technical parameters
1. Suitable material: color steel sheet or galvanized steel sheet
2. Thickness of raw material: 0.3-0.8mm
3. Yield strength of material: 235Mpa-345Mpa
4. Working speed: about 18-22m/min
5. Power requirement:
Main motor power: 5.5kw (depend on final design)
Hydraulic station power: 2.2kw (depend on final design)
6. Controlling system: Mitsubishi PLC & converter
7. Uncoiler’s loading capacity Max. Capacity: 5000kgs(can be increased to be 10T)
8. Machine’s size: about 18m*1.5m*1.4m (depend on final design)
9. Machine’s weight: 4500kgs
Product feature
The product produced by these series light steel keel roll forming machine is used for light steel keel in building. This product will be used for hold ceiling and wall panel. It is with the advantage of lower cost, soon fixture.
Working Flow
Decoiling the sheet -- Sheet guiding -- Roll forming -- Measure length -- Cutting the sheet -- Sheets to the run out table

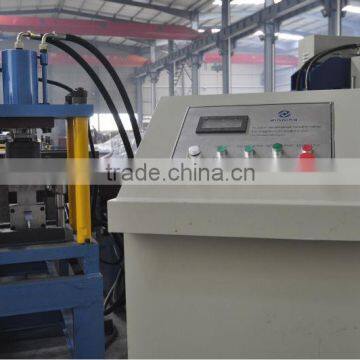

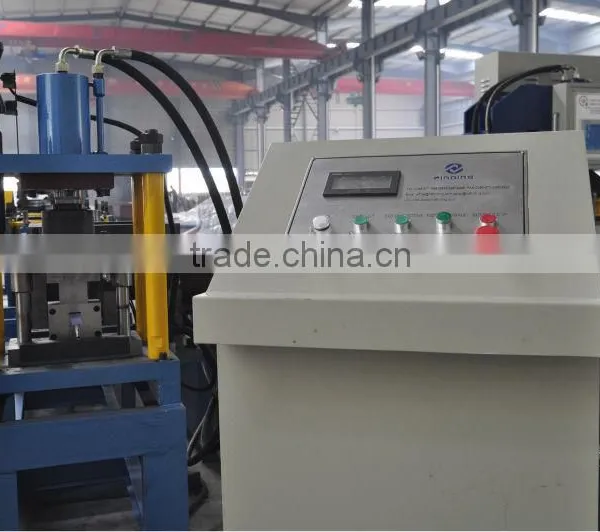

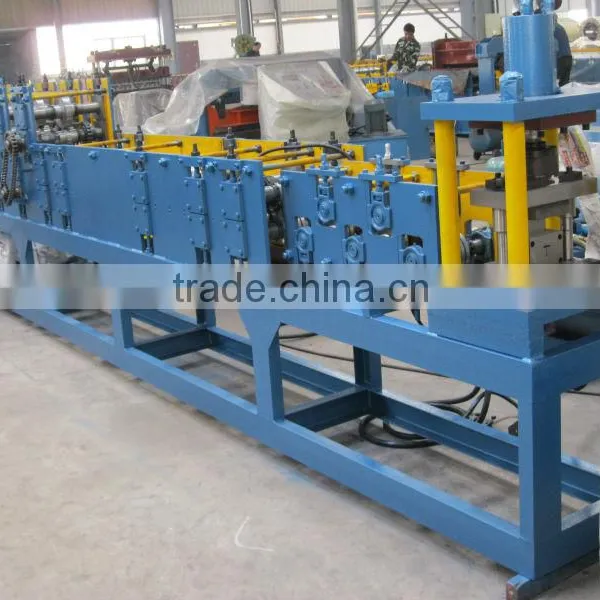

Equipment photos
Finished product photos

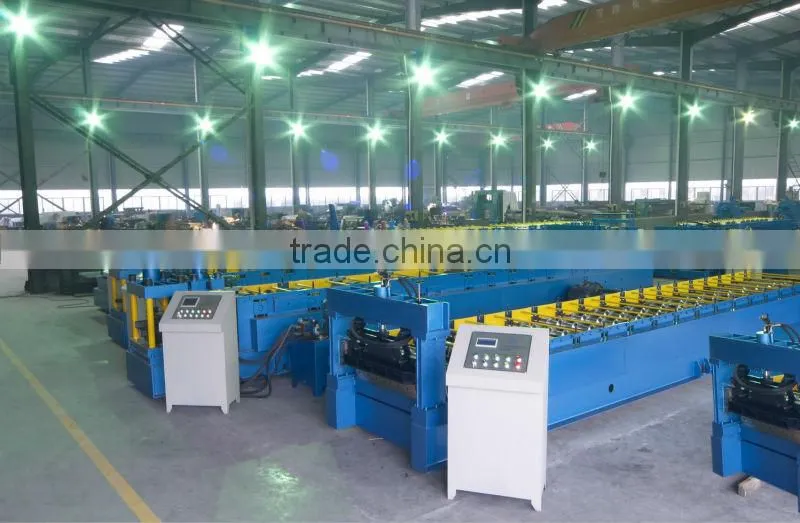

Company brief
Following the steel construction development, our company has been engaged in manufacturing Roll Forming Machines more than 20 years, we have the ability to produce custom roll formed shapes, and our products already have a well-deserved reputation among our clients.
There are over 20 series of steel roll forming machines we have developed which can meet all requirements of the steel constructions, and we also devoted ourselves to the research & development of various kinds of other products related to steel structure.
