Home > Products > Roll Forming Machine > roof &wall tile board panel cold roll forming forming machine
roof &wall tile board panel cold roll forming forming machine
USD $20,000 - $30,000
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- Ningbo / Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Colored Glaze Steel |
Use: | Wall | Production Capacity: | 20 m / min | Place of Origin: | Zhejiang, China |
Brand Name: | Finding or OEM | Model Number: | FDRW | Power(W): | 5.5 kw |
Voltage: | 380 v | Dimension(L*W*H): | 10*1.3.1.5 m | Weight: | 10 tons |
Certification: | CE | Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Good qualityComprehensive sevice
Good price
CE certificate
20 years experience
Machine 's components:
- uncoiler and its base
- coil sheet guiding
- dajusting device
- roll forming system
- punching system
- hydraulic post cutting system
- PLC control system
- run out table
Main technical parameters:
Suitable material | color steel sheet or galavanized steel sheet |
Thickness of raw material | 0.3 ~ 0.8 mm |
Yield strength of material | 235 Mpa~ 345Mpa |
Forming speed | 15 ~ 20 m/min |
Main moto power | 5.5 KW |
Hydraulic station power | 2.2 KW |
Uncoiler loading capacity | Max capacity: 5 tons, (can be increased to be 10 tons) |
Controlling system | Mitsubishi PLC & converter |
Machine's size | about 10 m * 1.3 m* 1.5m |
Our advantages :
| our machine | other company 's machine | Influence of the machine |
Machine's base | High strength H350 / H400 steel. machine through milling macine after welding. | H270 steel mark, after welding use manual polish. | keep base in the same horizontal line, ensure product standard. |
roller material | High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated | normal No. 20 steel with Simple polished and have no coating | Roller will have longer use life and ensure the products have same size, no nick on the surface. |
side wall | use high strength16mm thickness steel panel mark | use 12 mm thickness steel panel mark | ensure machine harder to deform, keep the product accurate and stable |
Active shaft material | High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatment. | normal No. 45 steel with no surface treatment | improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard. |
Electrical elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China | all the elements are made in china | machine become more accurate and more stable |
cutter blade | Cr12 mould steel with quenched treatment | normal high strength steel without quenched treatment | stable the integrated mechanic feature of the cutter blade, harder to deform, longer blade's life, ensure product standard. |

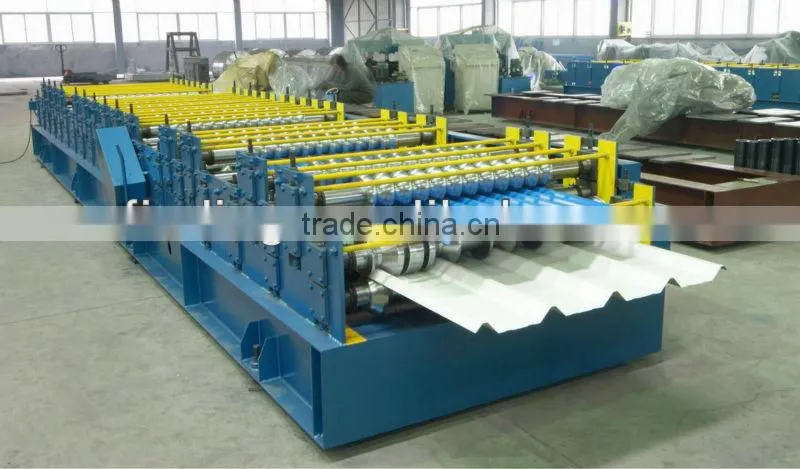

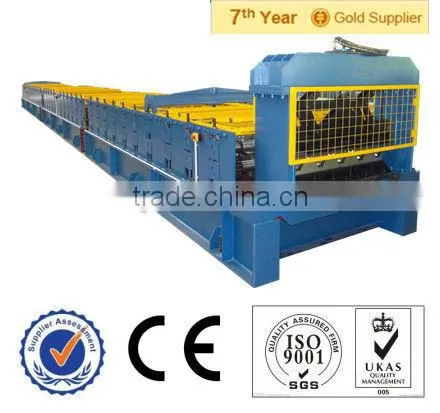

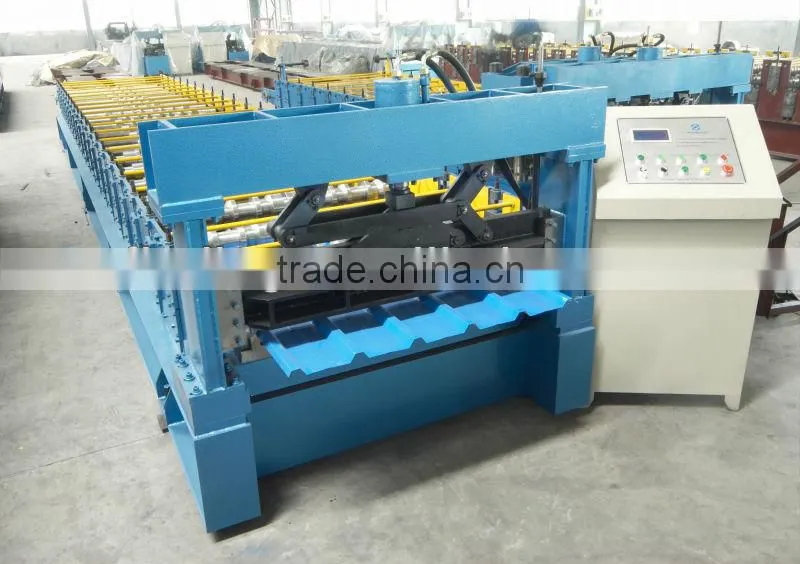

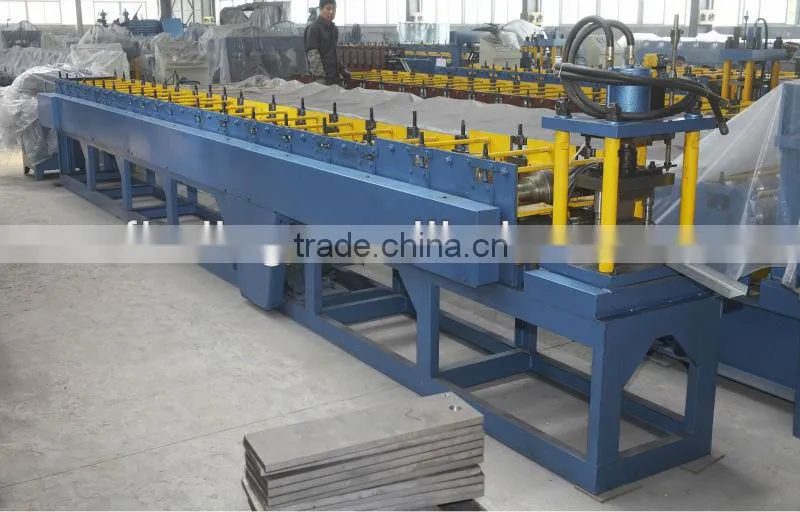

Machine 's photo:

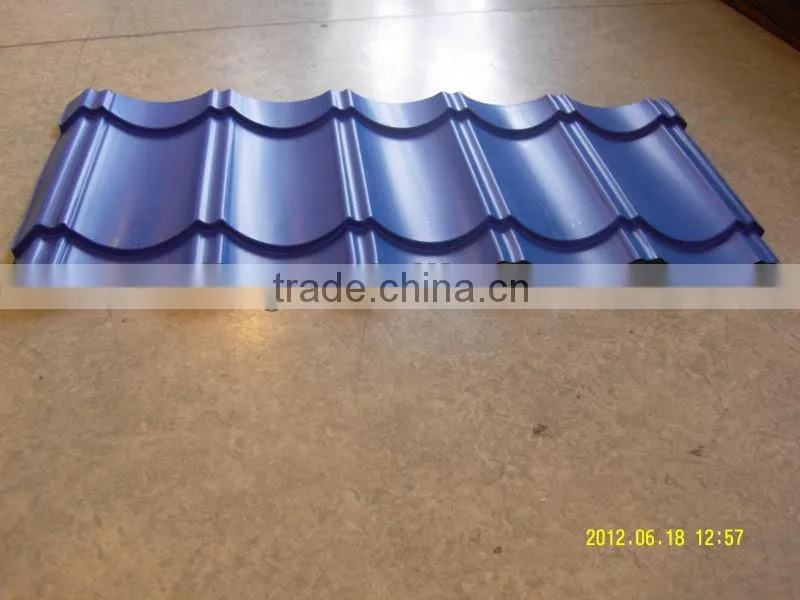

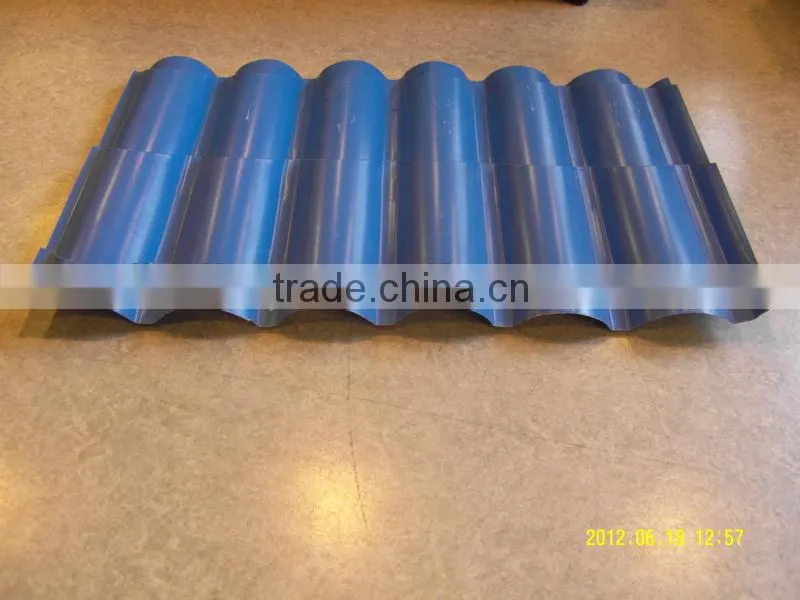

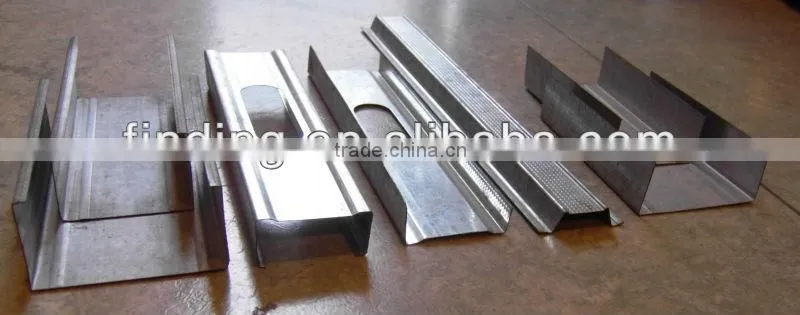

- Product 's sample:
Photo of other components:

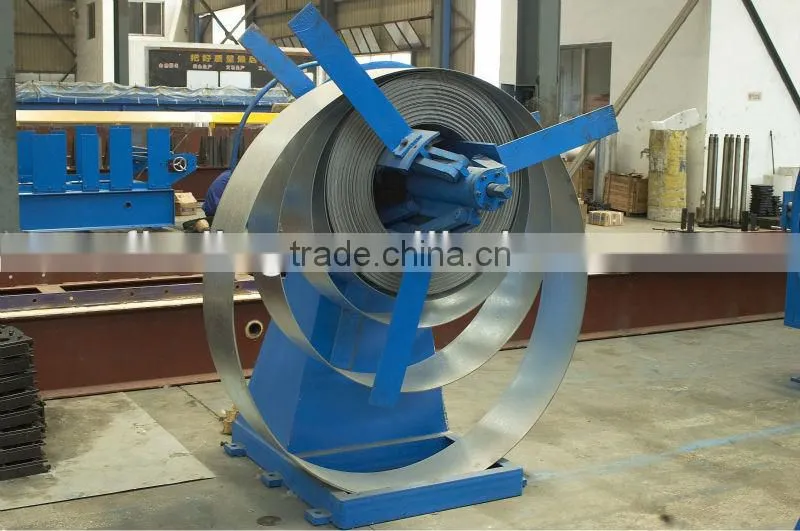

- uncoiler:
- PlC control :

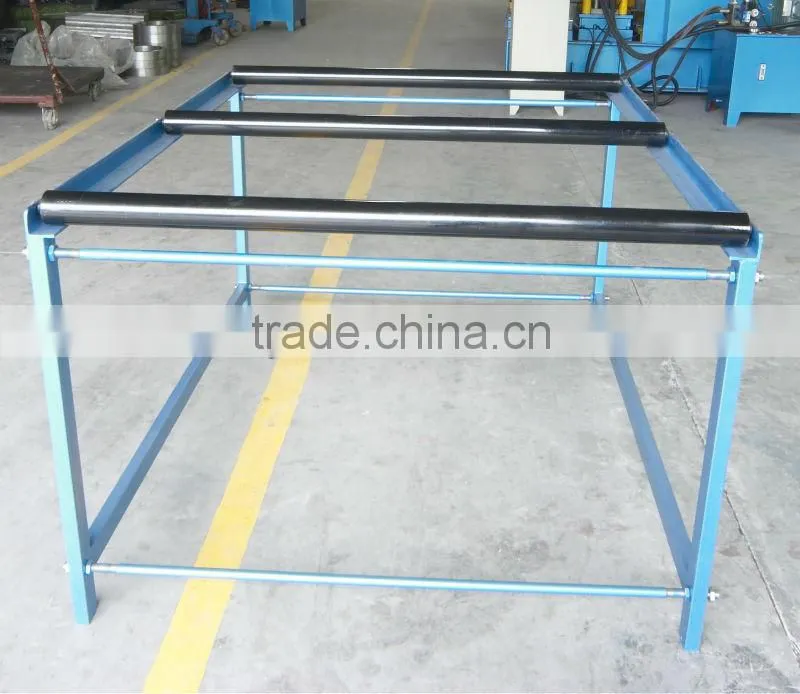

- simple run out table:

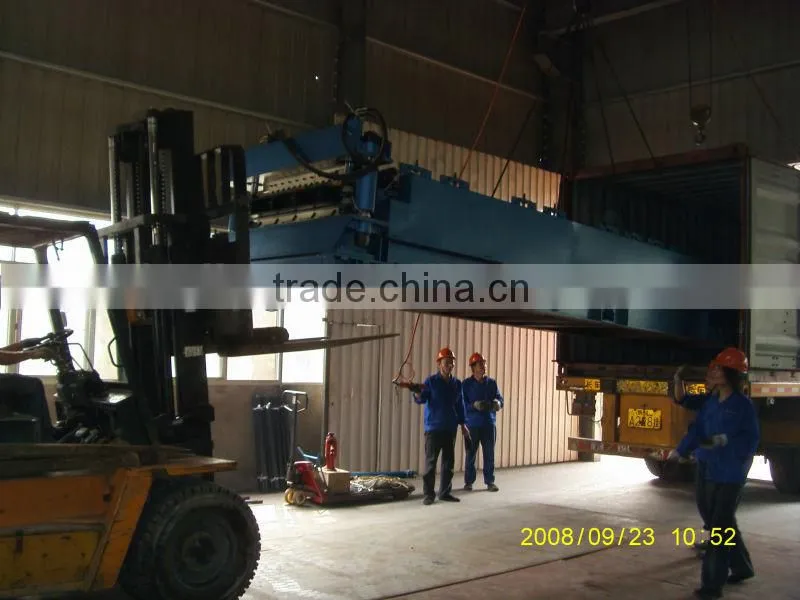

- Container photo:
- our customer:
If you have interesting please do not hesitate to contact me.
