Specifications
1)VGA to HDMI Converter2)Support HDCP, 1080P
3)High speed without transmit loss
analog tv to hdmi conveter
1.0 Introduction

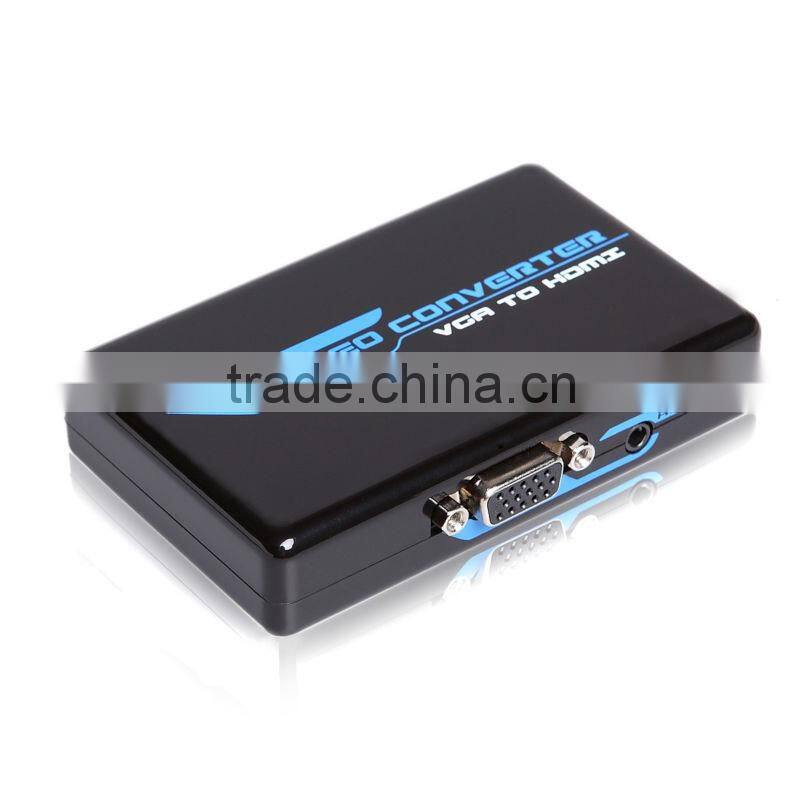

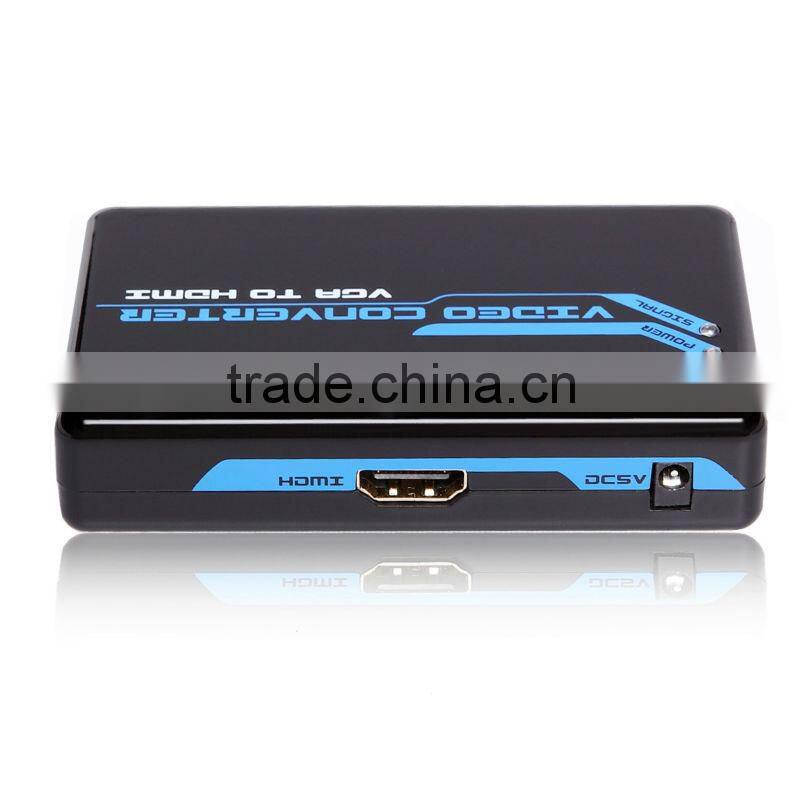

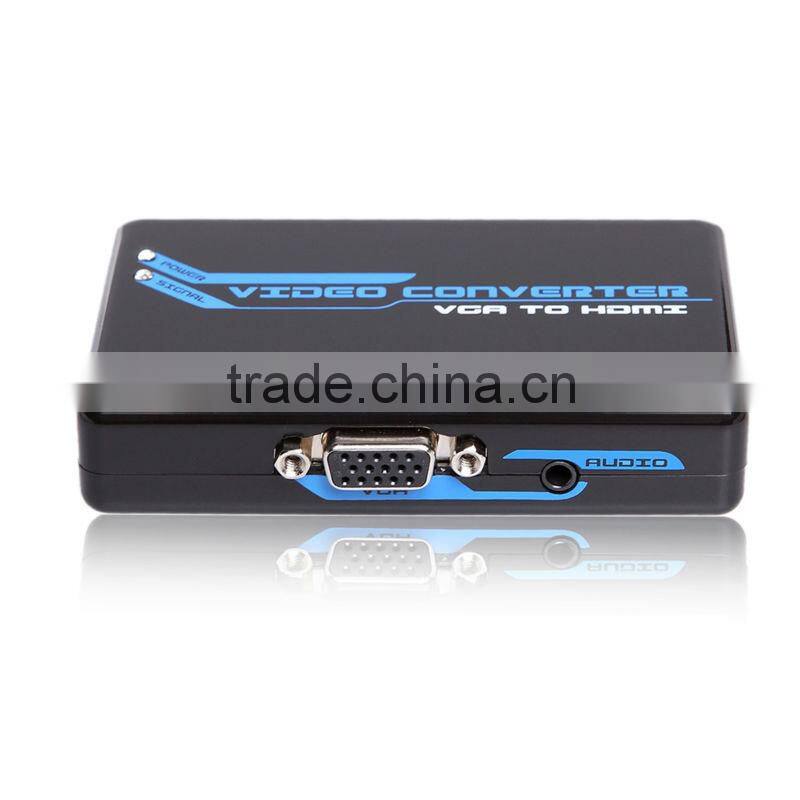

This kind of the Converter is a VGA video converter. It converts VGA input into HDMI to allow
PC users to show their image not only on the PC monitor, but could also on TV, to have a large
display. The conversion is along with the audio.
2.0 FEATURES

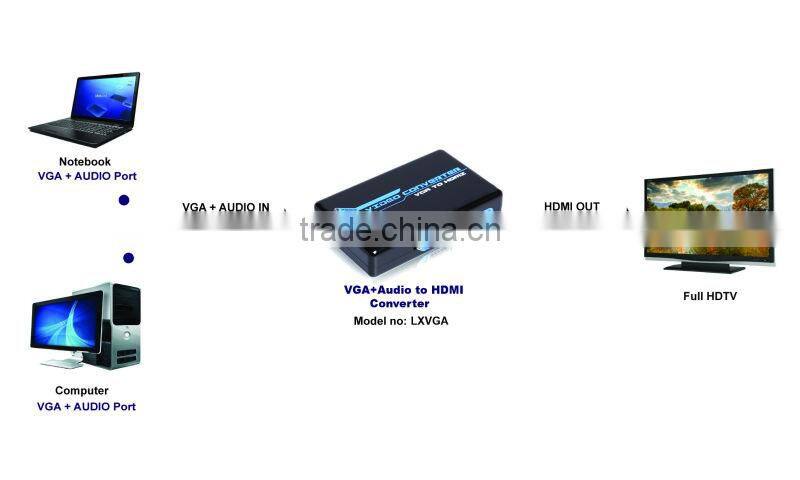

* VGA to HDMI Converter box converts PC VGA and audio to HDMI, allowing connection
of PC to 1080p HDTV.
* Input: VGA & Stereo Audio
* Output: HDMI,
* HDCP compliant;
* PC VGA Resolution:
1920 X 1080@60Hz, 1360 X 768@60Hz, 1280 X1024 @60Hz,
1024 X 768 @60Hz, 1280 X 720 @60Hz, 1280 X 768 @60Hz,
800 X 600 @60Hz, 640 X 480 @60Hz, 720 X 400 @85Hz.
* HDMI Transmission Rate: 5Gbps
* Support 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
* Support 8bit per channel (24bit all channel) deep color.
* Support uncompressed 2 channel audio such as LPCM
3.0 Parameters
Signal Inputs |
VGA Signal |
Input Video Signal |
0.5 -1.0 volts p-p |
Output Video |
HDMI Signal |
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
Video Amplifier Bandwidth |
1.65Gpbs/165MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0°C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply |
5V DC |
Power consumption (Max) |
5W |
Converter Unit Cert. |
FCC,CE, |
Power Supply Cet. |
CE,FCC |
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
English Version |
4.0 PACKAGE CONTENTS
1) Main unit (VGA to HDMI Converter)
2) 5V DC Power Supply
3) User Manual
5.About us
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design,owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production.
Our products follow the standard of HMDI & HDCP and other electronics safety regulation

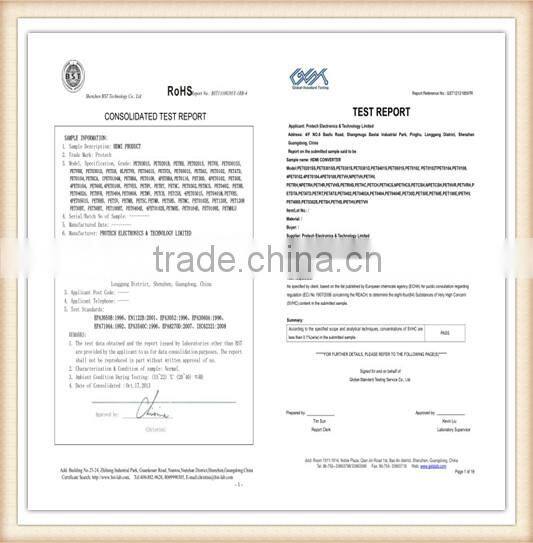

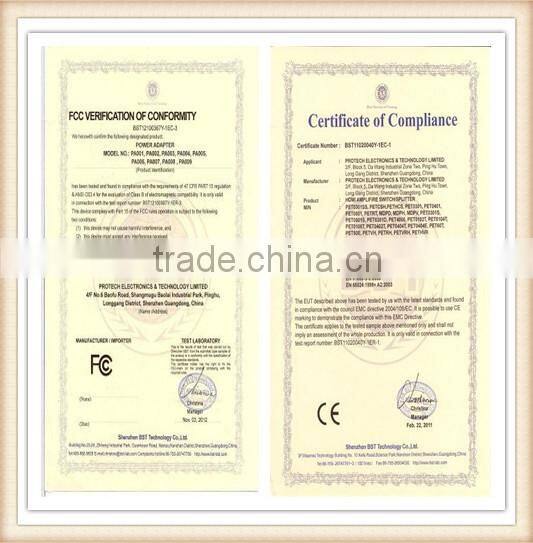

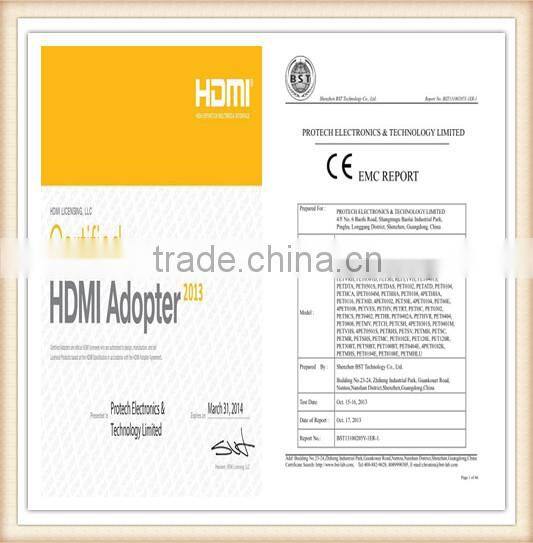

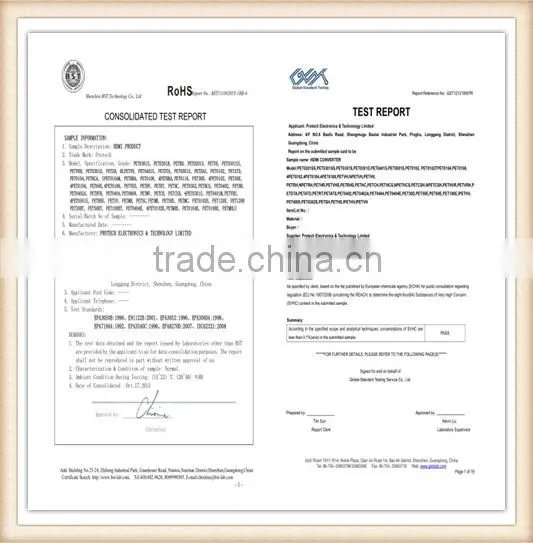

Certifications
FCC, CE, HDMI Adopter, EMC report , RoHS, REACH
6.Production Process and loading
Sales Network
FAQ
* Transportation ways : by sea, by air, by express(DHL, EMS, Fedex, UPS.etc. )
HDMI Splitters(1.4V&1.3V)
Variety Video & Audio Converters
VGA Splitter Extender
Send me mail or call me at Office: +86 755 89541911 ext 161 Tel : +86 13421322491
or let's talk details on Skype : petsales10
Thank you ! janet
