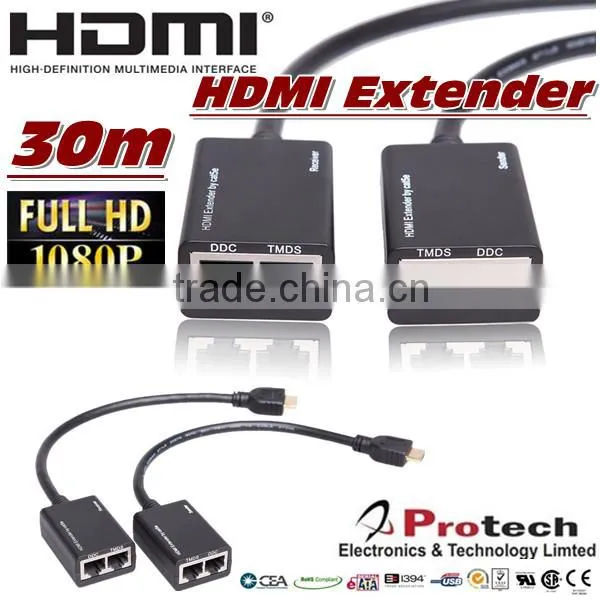

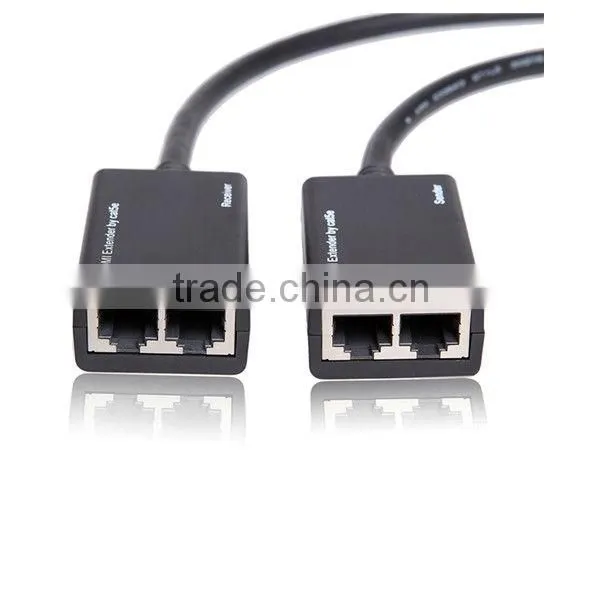

Help Center30m 1080P HDMI Extender Repeater PET30D
Related Products
-
30m 1080P HDMI Cat5e/6 Extender PET30DNegotiableMOQ: 100 Pieces -
HDMI Repeater Extender Over Single Cat5 / Cat6 / UTP Support 3D Full 1080pNegotiableMOQ: 50 Pieces
-
Remote Control Mini Hdmi Switch 4x1 for HDMI DevicesUS$ 2 - 8MOQ: 100 Pieces
-
Factory Price Hdmi 3 Ports Switch Box With IR Remote Support 3DUS$ 3 - 8MOQ: 50 Pieces
-
4 Way Hdmi Switch Box Support 3D 1080p for PS3 Xbox360 Blue Ray DVDUS$ 2 - 8MOQ: 100 Pieces
Specifications
1)HDMI extender 30m for 1080P2)HDMI Adopter, REACH,CE,FCC,RoHS Cert
3)Experienced OEM,ODM Service
hdmi repeater extender extends 30m for 3D 1080P in 3D 1080P out PET30D
Introduction
This kind of HDMI Extender by CAT-5e/6 uses two pieces of CAT-5e/6 cables to extend the HDTV display up to 30 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length,but also CAT-5e/6 has more flexibility and convenience in cable construction.
Features
* CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
* Follow the standard of IEEE-568B.
* Transmission distance can be up to 30 meters for 1080p using CAT-6 Cable.
* Compact size.
* Support highest video resolution 1080p.
* Support 165MHz/1.65Gbps per channel(4.95Gbps all channel) bandwidth.
* Support 8bit per channel (24bit all channel) deep color.
* HDCP pass-through.
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD)
* Support 3D
Parameters
| Input Video Signal | 0.5 -1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Maximum Single Link Range | 1920X1080p |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 1.65Gbps/165MHz |
| CAT-6 cable | 30M for1080p |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Limited Warranty | 1 Year Parts and Labor |
| Operating Temperature | 0°C to +70°C |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Temperature | -10°C to +80°C |
| Storage Humidity | 5% to 95 % RH (no condensation) |
| External Power Supply | No power needed |
| Power consumption (Max) | 5W |
| Converter Unit Cert. | FCC,CE |
| Power Supply Cert. | CE,FCC |
| AC Power Adapter | US standard, UK standard and so on |
| User Manual | English version |
Package contain
1) Main unit NO. 1 Sender
2) Main unit NO. 2 Receiver
3) User Manual

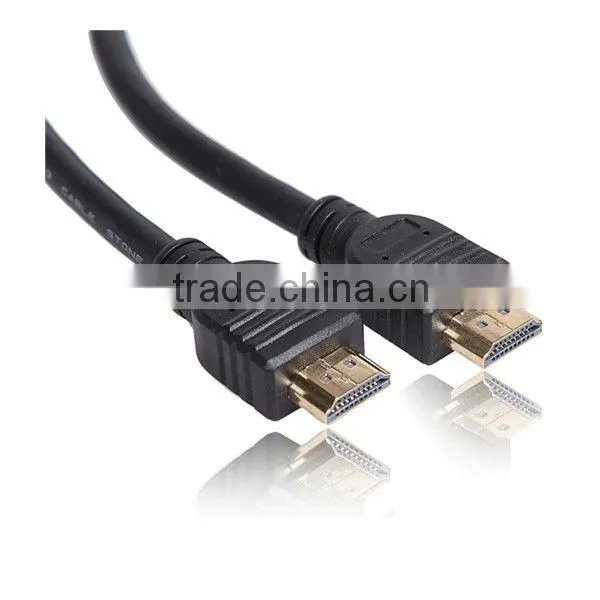

With two fixed HDMI cable (pigtail) this converter not only reduces cost but also save time for consumers.

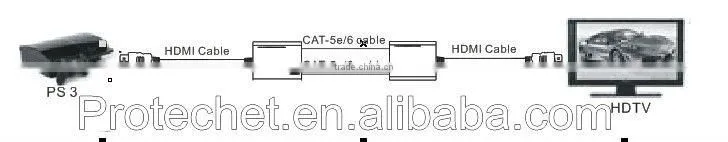

Connect diagram : cat5e/6 30m for 1080p , cat5e/6 60m for 720p
Package : gift box
Bubble package reduce cost to least
HDMI Adopter as member of HDMI Association
Means of Transportation
Send me mail or call me at Office: +86 755 89541911 Tel : +86 13421322491
Thank you ! janet
