Specifications
1. Mini hdmi switch2.1080p support 3D
3.IR remote control
4.Customized availabled
5.CE,FCC,ROHS,HDMI,HDCP

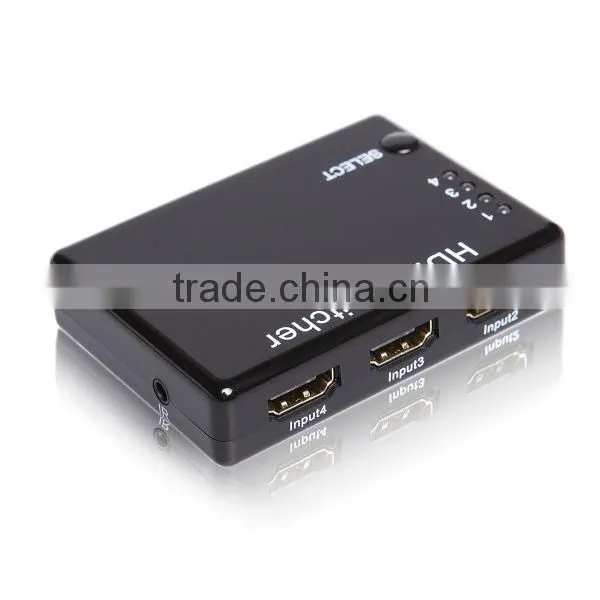

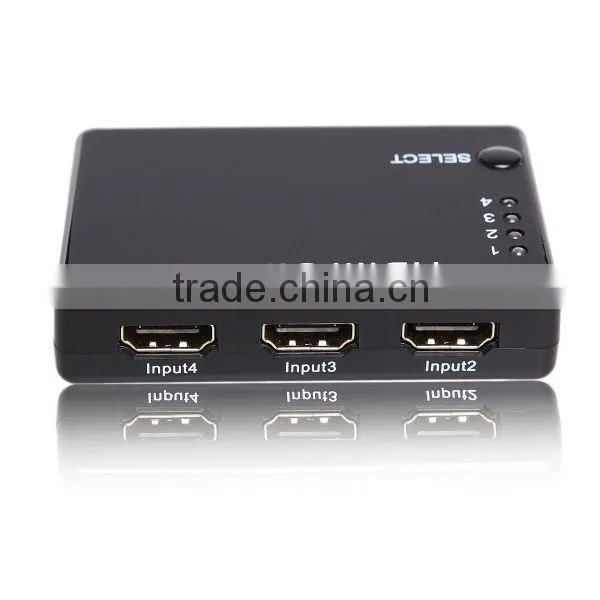

MINI HDMI Amplifier Switcher 4x1 Support 3D
1. Description
This is a kind Mini hdmi switch high performance mini HDMI Amplifier Switcher. This kind of HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function. That is to say, as soon as the power supply of the source equipment is switched, this switcher will respond automatically. In addition, it is equipped with standard IR extender receiver: safe and convenient.
2.Features
* Multifunctional on switching : intelligent or mechanical
* Support HDMI1.3b
* Support highest video resolution 1080p.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
* Support 3D
3.Specifications
| Input DDC Signal | 5 volts p-p (TTL) |
| Output Video | HDMI 1.3b |
| Maximum Single Link Range | 1920X1080p |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 2.5Gbps/250MHz |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Operating Temperature | 0°C to +70°C |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Humidity | 5% to 90 % RH (no condensation |
| External Power Supply | No power needed |
| Power consumption (Max) | 5W / 1A |
| User Manual | English Version |

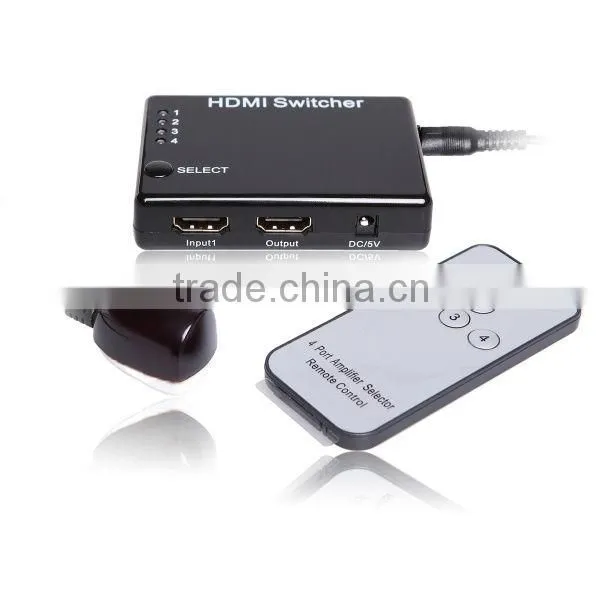

4. Accessories
IR Receiver
Remote control
User menual
5.About us
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design,
owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production
