duble color film blown machine
- 6 Set / Sets per Month
- SHANGHAI
- T/T
Product Details
Machine Type: | Other, filming blowing and printing machine | Bag Type: | Shopping Bag | ||
Material: | Plastic | Computerized: | Yes | Place of Origin: | Jiangsu, China |
Brand Name: | Honghua | Model Number: | JSY-350 | Voltage: | 380V;220V |
Power(W): | 25Kw | Dimension(L*W*H): | 6000*1300*2500 | Weight: | 2200Kg |
Certification: | CE ISO SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1 HDPE LDPE LLDPE2 Save Labor
3 High Capacity
4 Easy Maintaince
5 Bright Color
Main feature and performance:

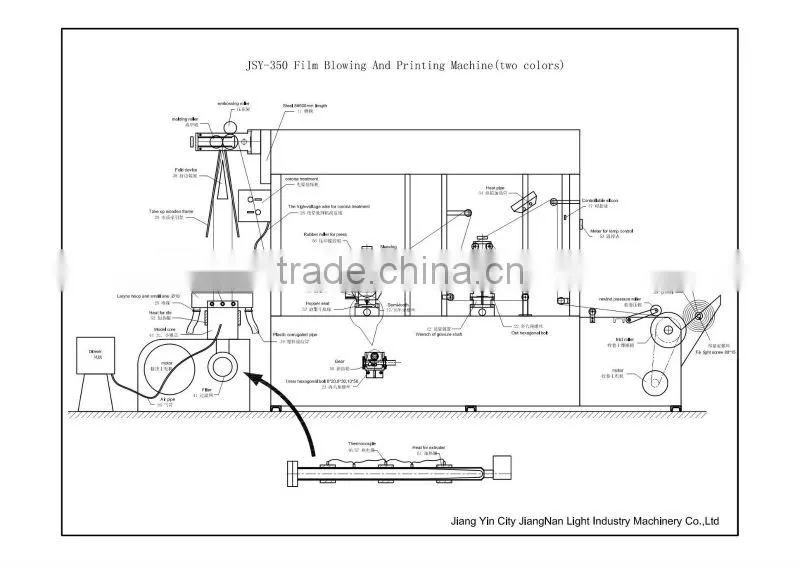

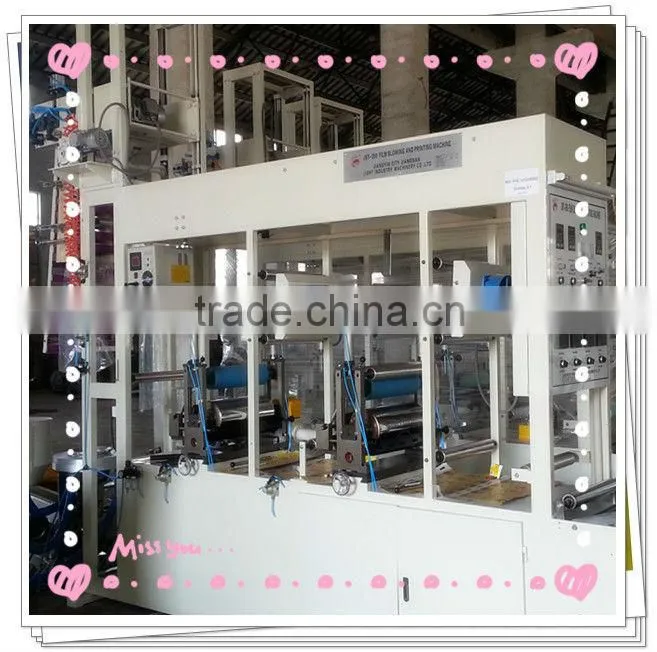

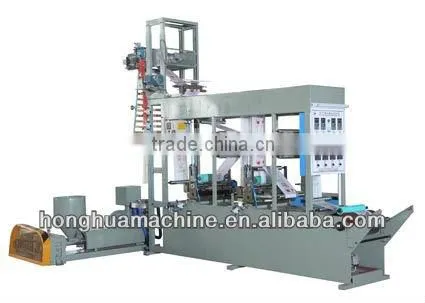

JSY-350film blowing and printing machine is one of machine special for soft plastic package bag,it not only blowing and printing in once time ,but also for both sides printing,the material is LDPE,HDPE,RECYCLE material and so on,
1. Widely application with more function.
2. Advanced structure, easy operation, overprint nicety, easy maintenance
3. Lower material, reliable quality. More advantage:
a. Bright color and don’t easy to move the ink;
b. Blow and print at the same time, overprint nicety;
c. Easy maintenance, reliable and stable quality
d. Lower consumption,fewer workers,less time ,cost and so on.
Technical parameter:
Mode | Units | JSY-350 |
Suitable Material |
| HDPE LDPE LLDPE |
Max Film Width | MM | 350 |
Film Thickness | MM | HDPE:0.01-0.03 LDPE:0.0015-0.08 |
Max Output | KG/H | 35 |
Total Power | KW | 25 |
|
|
|
EXTRUSION & DIE &AIR-RING |
|
|
Screw Diameter | MM | Φ45 |
Screw L/D Ratio | L/D | 28:1 |
Screw & Barrel Material |
| 38 CrMoAL |
Die-Head Diameter | MM | Φ35 Φ70 |
Thermo Control Zone Of Die | Zone | 1 |
Thermo Control Zone Of Barrel | Zone | 3 |
Heating Power | KW | 12 |
Main Motor Power | KW | 7.5 |
Inverter | KW | 7.5 |
|
|
|
PULLING DEVICE |
|
|
Take-up Motor Power | KW | 0.75 |
Inverter | KW | 0.75 |
|
|
|
WINDING DEVICE |
|
|
Rewind Roller Width | MM | 350 |
Max.Winding Diameter | MM | 350 |
Weight | MM | 2200 |
Max. Width of Printing Material | MM | 350 |
Max. Printing Width | MM | 350 |
Length Range of Printed Product | MM | 235-565 |
Printing Speed | M/MIN | 10-40 |
Total Power | KW | 6 |
Weight of Machine | KG | 2200 |
Main parts | ||
Name | Type | Manufacturer |
Main motor | PYPEY2-132M-4 | Beide |
Inverter | CHF100 1R5G-S2 | INVT Shenzhen |
Temperature controller | WD-5411 | Gongbao |
AC Contactor | CJX1-22 | Delixi |
