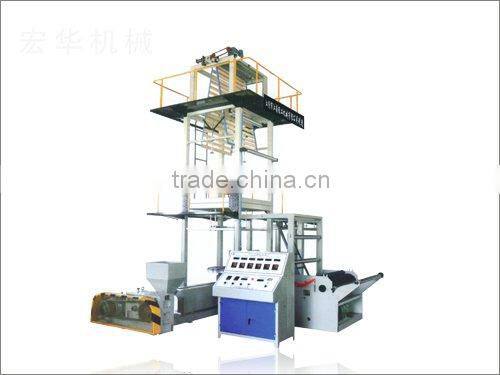

SL-65-1000 Biodegradable Film Blowing Machine

Name: SL-65-1000 Biodegradable Film Blowing Machine
Brand: honghua
SKU: 124443365
Availability: InStock

US$ 6,000 - 25,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Film

Plastic Processed:

Jiangyin City Honghua Machinery And Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Film

Plastic Processed PE

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Jiangsu, China

Brand Name honghua

Model Number sl-65-1000

Specifications

SL-65-1000 biodegradable film blowing machine
1.HDPE/LDPE/LLDPE
2.bio/oxo degradable material
3.easy operation

SL-65-1000 Biodegradable Film Blowing Machine

Main future:

1.Our factory collects ten years' experiences to produce plastic machinery series.

2It is special to blow film ,such as HDPE,LDPE,LLDPE.

3.It is equipped with edge folding device to blow and process the vest bag and parallel bag.

4.The forming fram can rise and fall at random.

5.It is compact structure,easy operaction,less area.

Main technical parameter:

Model	SL-45-600	SL -55-800	SL -65-1000
Layer	Single
Material	HDPE/LDPE,/LLDPE recycle material
Screw diameter	45mm	55mm	60mm
L/D	28:1
Barrel & Screw	38CrMoAl,hardening and tempering, deal with Nitride
Heater	casting aluminum heater
Die head	45 steel forge piece ,two sets
Air ring	2 sets
Blower	1 set
Gear box	High strength hard teeth retarder with high obturation
Embossing roll	1 set
Rewind	Friction type
Compressor	1 set
Take up system	Down and up freely controlled by motor
Extruder motor	7.5KW	11KW	18.5KW
Total power	25KW	35KW	50KW
Film width	500mm	700mm	900mm
Single-face Thickness	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Output	10-40kg/h	15-50kg/h	25-60kg/h
Weight	2000kg	3000kg	3500kg
Dimension (L×W×H)mm	4500x2000x3800	4800x2800x4300	5000x3000x4800

Key part brand list of degradable film blowing machine

No	Part	Brand/material
1	Screw	38CrMoAl,hardening and tempering with Nitride Alloy metal
2	mould	Two sets/machine ,45 forge steel ,inside with hard Chromium
3.	Heater	Steel, stainless steel, casting aluminum, porcelain enamel
4.	Temp meter	Ormron (Japan)
5	Contactor	Schneider(France)
6	Motor	China brand/ABB
7	Inverter	China brand /Schneider
8	Air cylinder	Taiwan

Additional parts for choose
