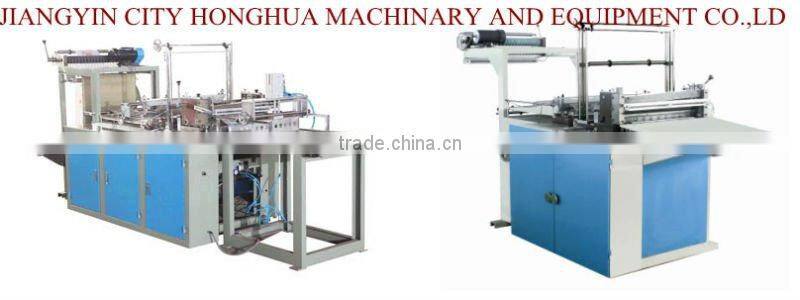

Help CenterPP Plastic Film Shopping Bags Making Machine
Related Products
-
PE Plastic Film Shopping Bags Making MachineUS$ 8,500 - 10,000MOQ: 1 Set -
T-shirt Bags and Vest Bags Shopping Bags MachineUS$ 13,000 - 25,000MOQ: 1 Set
-
Transparent or Colorful Plastic Bags Making MachineUS$ 8,500 - 12,500MOQ: 1 Set
-
Plastic Pallets Bag Making MachineUS$ 8,500 - 12,500MOQ: 1 Set
-
Plastic Shopping Bag Making Machine,pe Film Blown MachineUS$ 8,500 - 12,500MOQ: 1 Set
Specifications
1.making plastic bags by electrinic tracker.ping bags making width 100-1000mm
3.making shopping bags by self-counting.
we produce the machine cater to your requirement.
Main features and performance:
1.This machine completes the seal, cut off, punch, count, linking at the same time.
2.The machine adopts photoelectric tracer and stepping motor is used for material dragging, pneumatic control is used for punching.
3.Making bags with high accuracy and low mechanical running noise.
this machine adops photoelectrinic tacking and PLC control the synchrony of the process.
The main features as following:
1. Bag variety: white bag, color bag, colored picture bag, parallel bag, vest bag.
2. The seal searing-iron adopts automatically constant temperature control, set the suitable temperature according to the film thickness and its characteristic to ensure the fastness of bags;
3. The color mark tracer adopts the advanced micro-computer control and stepper motor control, control the length accurately;
4. Main motor adopts frequency conversion motor to improve the speed. Material unwinding adopts the DC serve motor and photoelectric control to make the material unwinding automatic;
5.Making bags automatically from film coiling raw material, automatic material unwinding, seal, cut-off, counting to stacking.
Main technical parameter:
Model |
Units |
JBD-600(1000) |
1.Length of bag |
MM |
50~1999 |
2.Line speed of bag making |
MM |
10~40 |
3. Film width |
MM |
50~550(1000) |
4. Film thickness |
MM |
0.01~0.2 |
5. Power |
KW |
3.5(4.5) |
6.Weight |
Kg |
1000(1500) |
7. Overall size(L×W×H) |
MM |
2600×1020(1420)×1700mm. |
we also supply the machine for punching vest bags, flat bags.
YOUR SUCCESS IS OUR BUSINESS ,
BEST REGARDS!
JIANGYIN CITY HONGHUA MACHINERY AND EQUIPMENT CO.,LTD
