Good quality 1080P 30M/60M/120M/150M HDMI Extender Cat6 Manufacturer
Item : Mini hdmi extender, hdmi extender 30m for 1080p , 60m for 1080i, hdmi extender by cat5e/6 , 30m hdmi extender, 30m hdmi extender
Introduction
This kind of HDMI Extender by CAT-5e/6 uses two pieces of CAT-5e/6 cables to extend the HDTV display up to 30 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length,but also CAT-5e/6 has more flexibility and convenience in cable construction.
Features
* CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
* Follow the standard of IEEE-568B.
* Transmission distance can be up to 30 meters for 1080p using CAT-6 Cable.
* Compact size.
* Support highest video resolution 1080p.
* Support 165MHz/1.65Gbps per channel(4.95Gbps all channel) bandwidth.
* Support 8bit per channel (24bit all channel) deep color.
* HDCP pass-through.
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD)
* Support 3D
Parameters
| Input Video Signal | 0.5 -1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Maximum Single Link Range | 1920X1080p |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 1.65Gbps/165MHz |
| CAT-6 cable | 30M for1080p |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Limited Warranty | 1 Year Parts and Labor |
| Operating Temperature | 0°C to +70°C |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Temperature | -10°C to +80°C |
| Storage Humidity | 5% to 95 % RH (no condensation) |
| External Power Supply | No power needed |
| Power consumption (Max) | 5W |
| Converter Unit Cert. | FCC,CE |
| Power Supply Cert. | CE,FCC |
| AC Power Adapter | US standard, UK standard and so on |
| User Manual | English version |
Package contain

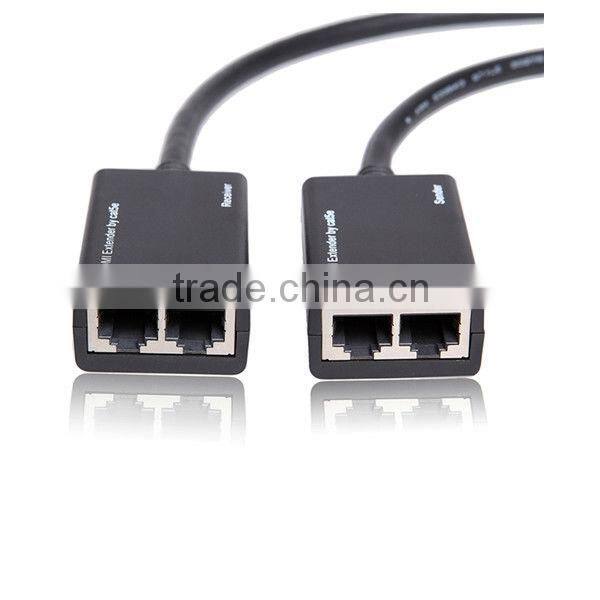

1) Main unit NO. 1 Sender
2) Main unit NO. 2 Receiver
3) User Manual

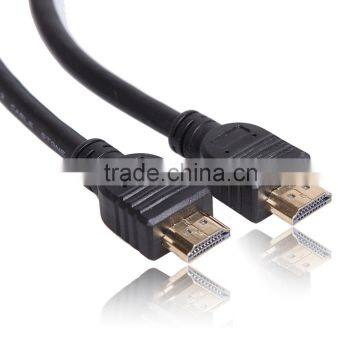

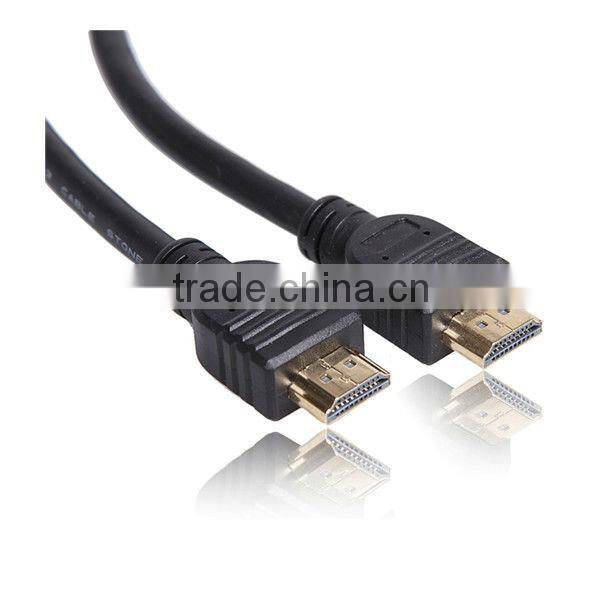

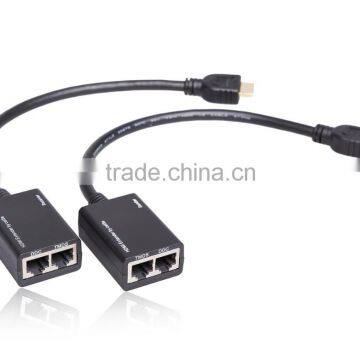

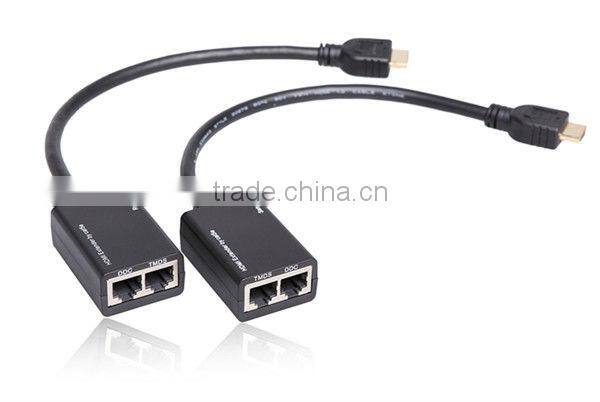

With two fixed HDMI cable (pigtail) this converter not only reduces cost but also save time for consumers.

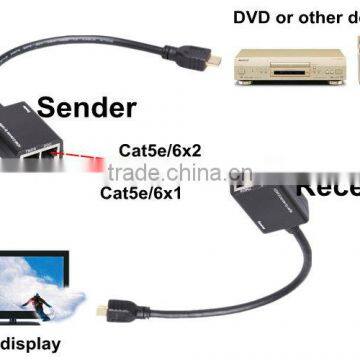

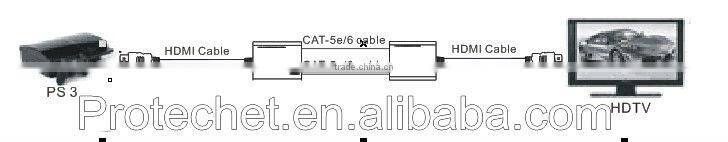

Connect diagram : cat5e/6 30m for 1080p , cat5e/6 60m for 720p

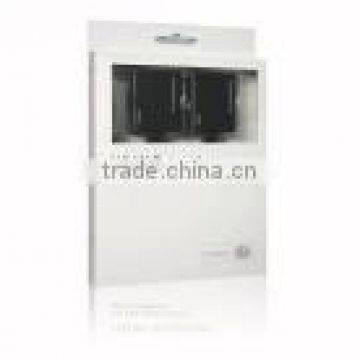

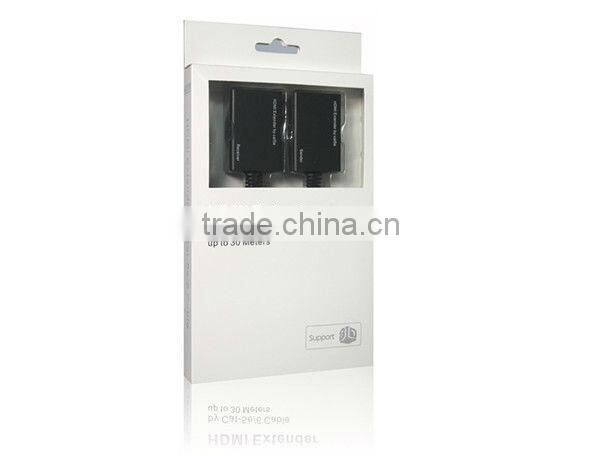

Package : Neutral gift box,color box or custom design.
Foam Package reduce cost to least
Factory Pictures
Means of Transportation
Protech Electronics &Technology Limited, branded as Protech, founded in 2008, located at No.6 Baofu road, Baolai Industry Park, Pinghu Town, Longgang District, Shenzhen, is a market leading manufacturer of HDMI products. Over the years, Protech has gained experience and knowledge in electronic business, market development and the HDMI industry. We have always found pride in our solid quality control, exceptional products, immediate availability and continual product development, a keen sense of what distributors and their customers need to build and grow.
Protech always persists with high quality, it is operated strictly according to the standard operating procedures and rules with the rich and applicable laboratory equipment, high quality so that to makes every client satisfactory. You can find that we have a comprehensive inspection system on the products upon visiting our factory: full inspection on raw material, full inspection on PCB, full inspection on semi-finished products, full inspection on finished products, full inspection and random inspection before packing, random inspection before shipment. This is how we assure the quality of our goods.
Protech is committed to the green products and has the comprehensive RoHS,CE,FCC system. We are also one of the HDMI Adopter manufacturers .
* Office and Factory Outlook
* Production Process
* OEM & ODM
* Certificates
* Exhibition We Attend
Q1: Are you a manufacturer or trading company?
A1: yes, we are manufacturer. We located in Shenzhen, China. And the FOB Shenzhen port is Yantian/Shekou.
Q2: Can I customized my product in your factory?
A2: Sure, we offer OEM and ODM service.
Q3: Do your product comes with a warranty?
A3: yes, 1 year parts and labor.
Q4: Can you give me a discount?
A4: Yes, the discount comes with different quantity. If the order quantity exceed 50pcs, we will give you a discount, if exceed 100pcs, another discount, if exceed 300pcs, 500pcs, 1000pcs, 2000pcs..., the more quantity your order, the lower price you will get.
Q5: What information should I provide if i want to get a quotation?
A5:
For our product with totally our design |
Item name, order quantity, shipping term(EXW/FOB etc) |
For OEM items |
Item description, detailed spec, color, package content, order quantity, shipping terms, photo |
Q6: How many days will the sample be available? And what about the mass production?
A6: sample will be sent out within 3 days after sample cost is settled and confirmed. For mass production, ready in 1-3 days with stock, 1-3 weeks for those without stock.
Q7: what is your inspection procedure?
A7: 1st inspection: when the raw material is sourced, we will have a 100% inspection.
2nd inspection: during production, we will inspect goods randomly
3rd inspection: after production is finished. Our QC department will choose 10-50% completed goods for inspection. The inspection percent depends on the order quantity!
Q8: how do you ship the goods?
A8: by sea, by air, by courier(DHL/UPS/FedEx/TNT etc)
