HDMI SDI Extender HD / 3G / SD SDI Extender over 100m coaxial cable SDI/BNC to HDMI to SDI extender converter 1080p
1.0 Introduction
The HDMI Extender lets you extend HDMI audio/video signal by up to 100 meters (328 feet) over single coaxial cable. The extender kit includes both the local transmitter and remote receiver units, ideal for point-to-point digital signage applications that require high quality HDMI video. The extender allows you to run the connection over existing coaxial cable, with little to no modification required, making it a perfect solution for a broad range of applications.
2.0 Feature
* Compliant with HDMI 1.3, HDCP 1.1 standard.
* Support 2.5Gbps/225MHz per channel, ( 6.75Gbps all channels) bandwidth
* Supports digital video formats up to 36 bits (12bits/color) deep color
* Support sampling rate 48 KHz LPCM Digital audio.
* Equalize and recover incoming TMDS data in native resolution before re-transmitting it, regardless of the incoming signal quality.
3.0 Specification
Signal input |
HDMI Signal |
Input Video Signal |
0.5-1.0volts/p-p |
Output video |
HDMI Signal |
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080p |
Supported Cable Length ( via RG6 cable) |
328ft/100m @1080p |
Vertical Frequency Range |
50/60Hz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1Year Parts and Labor |
Operating Temperature |
0℃ to 40℃ |
Operating Humidity |
15% to 85% RH (no condensation) |
Storage Temperature |
-10℃ to +60℃ |
Storage Humidity |
20% to 90% RH (no condensation) |
Power Supply |
5V DC |
Power Consumption(Max) |
5W |
Extender Unit Certification |
FCC,CE, RoHS |
Power Supply Certification |
CE,FCC, RoHS |
Power Adapter Standard |
US, UK, EU, AUS standard |
User Manual |
English Version |
Note:
1. Cable quality affects product performance.
2. The specification is subject to change without prior notice.
4.0 Package Content

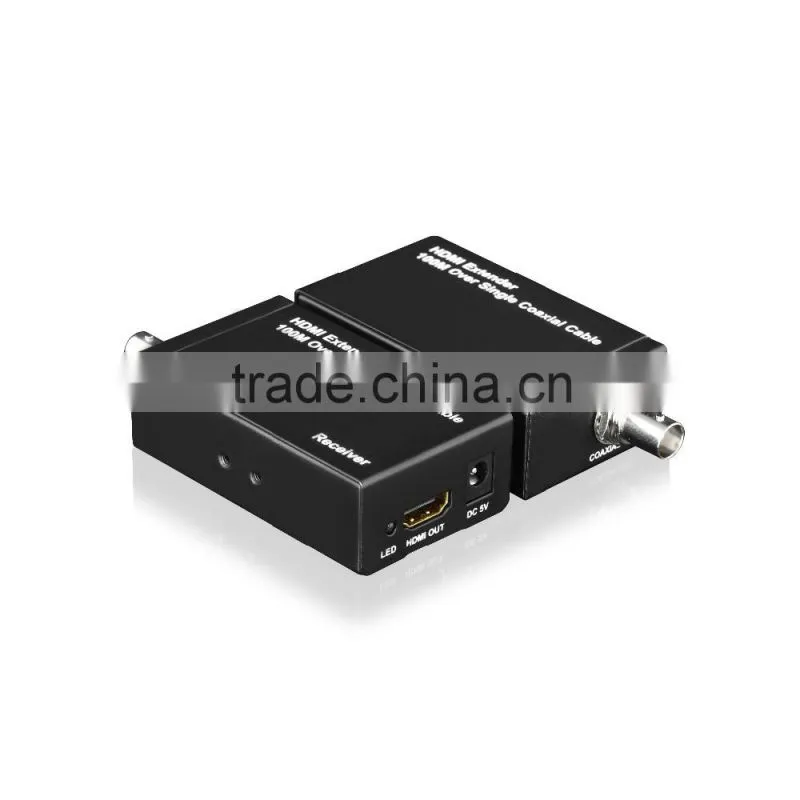

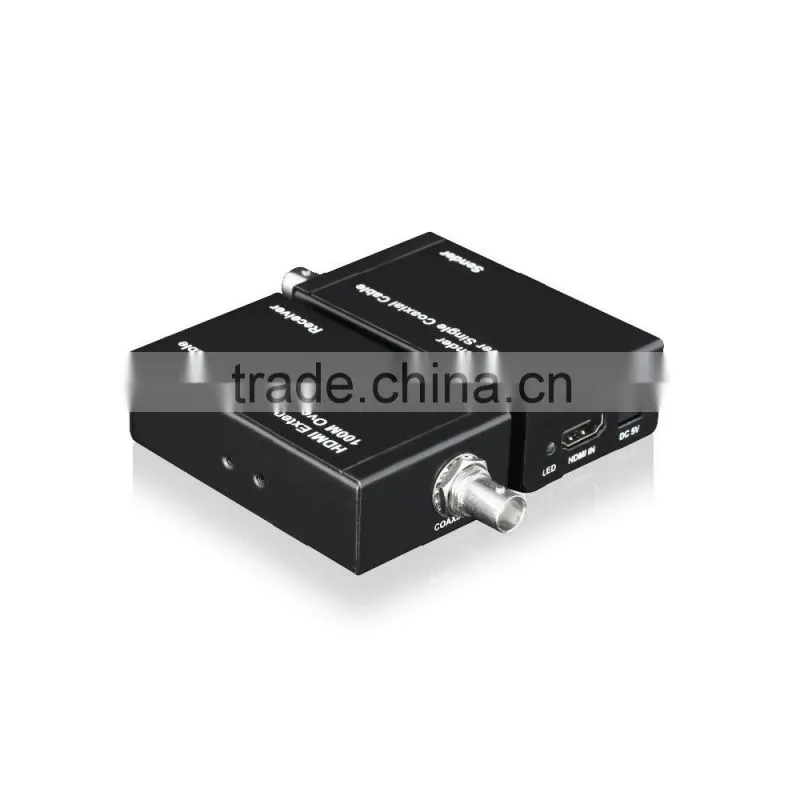

1) HDMI Transmitter x 1
2) HDMI Receiver x 1
3) 5V/1A DC Power Adapter x 2
4) User Manual x1
5) "L" shape nog x 4
Protech Electronics &Technology Limited, branded as Protech, founded in 2008, located at No.6 Baofu road, Baolai Industry Park, Pinghu Town, Longgang District, Shenzhen, is a market leading manufacturer of HDMI products. Over the years, Protech has gained experience and knowledge in electronic business, market development and the HDMI industry. We have always found pride in our solid quality control, exceptional products, immediate availability and continual product development, a keen sense of what distributors and their customers need to build and grow.
Protech always persists with high quality, it is operated strictly according to the standard operating procedures and rules with the rich and applicable laboratory equipment, high quality so that to makes every client satisfactory. You can find that we have a comprehensive inspection system on the products upon visiting our factory: full inspection on raw material, full inspection on PCB, full inspection on semi-finished products, full inspection on finished products, full inspection and random inspection before packing, random inspection before shipment. This is how we assure the quality of our goods.
Protech is committed to the green products and has the comprehensive RoHS,CE,FCC system. We are also one of the HDMI Adopter manufacturers .
* Office and Factory Outlook
* Production Process
* OEM & ODM
* Certificates
* Exhibition We Attend
Which type of power adaptors do you want ?
EU, US, AU, CN Standard are available for your choice.
Q1: Are you a manufacturer or trading company?
A1: yes, we are manufacturer. We located in Shenzhen, China. And the FOB Shenzhen port is Yantian/Shekou.
Q2: Can I customized my product in your factory?
A2: Sure, we offer OEM and ODM service.
Q3: Do your product comes with a warranty?
A3: yes, 1 year parts and labor.
Q4: Can you give me a discount?
A4: Yes, the discount comes with different quantity. If the order quantity exceed 50pcs, we will give you a discount, if exceed 100pcs, another discount, if exceed 300pcs, 500pcs, 1000pcs, 2000pcs..., the more quantity your order, the lower price you will get.
Q5: What information should I provide if i want to get a quotation?
A5:
For our product with totally our design |
Item name, order quantity, shipping term(EXW/FOB etc) |
For OEM items |
Item description, detailed spec, color, package content, order quantity, shipping terms, photo |
Q6: How many days will the sample be available? And what about the mass production?
A6: sample will be sent out within 3 days after sample cost is settled and confirmed. For mass production, ready in 1-3 days with stock, 1-3 weeks for those without stock.
Q7: what is your inspection procedure?
A7: 1st inspection: when the raw material is sourced, we will have a 100% inspection.
2nd inspection: during production, we will inspect goods randomly
3rd inspection: after production is finished. Our QC department will choose 10-50% completed goods for inspection. The inspection percent depends on the order quantity!
Q8: how do you ship the goods?
A8: by sea, by air, by courier(DHL/UPS/FedEx/TNT etc)
