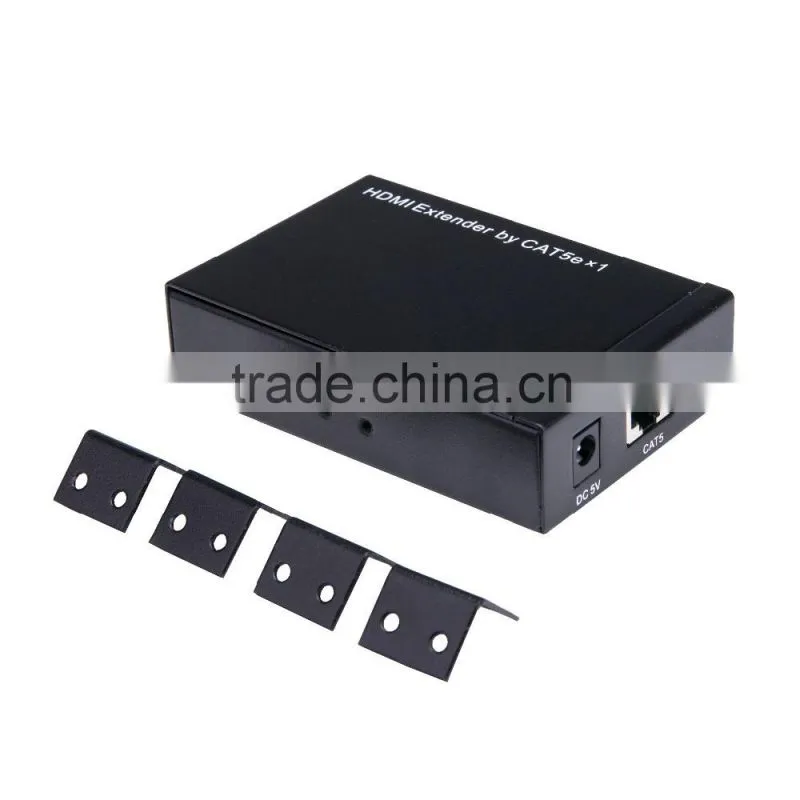

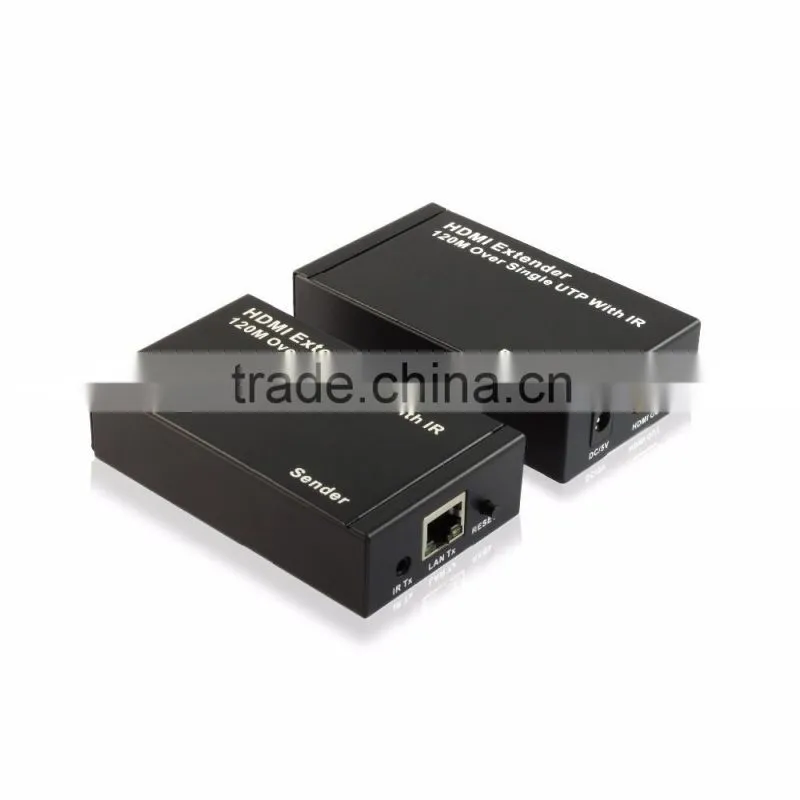

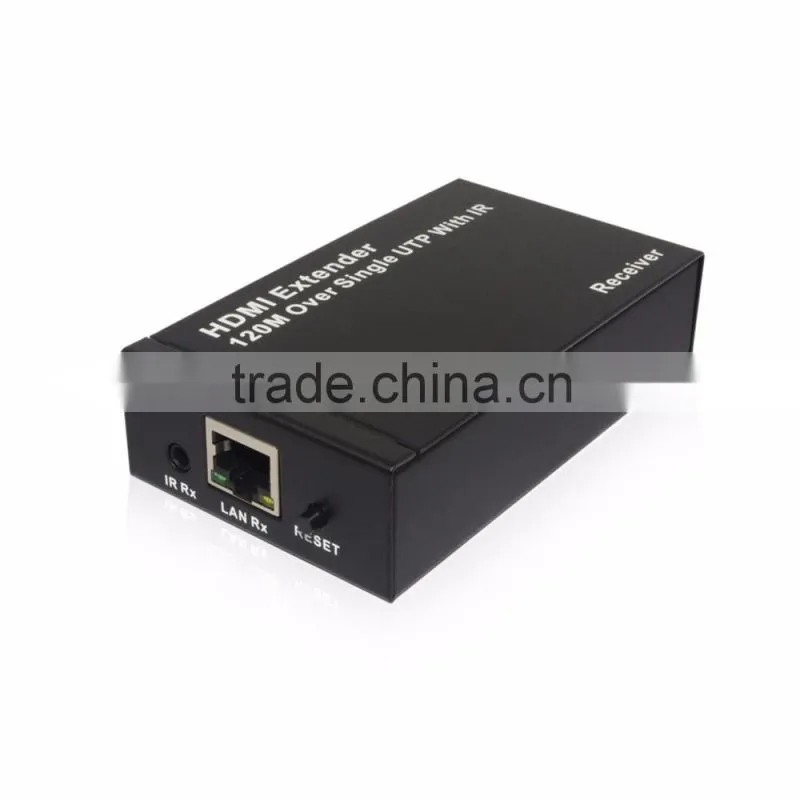

wholesale hdmi extender over ip sx-ex22 hdmi extender support max 120m with IR remote 1080p
1.0 Introduction
The HDMTM video Extender lets you extend HDMITM signal or DVI Signal (using HDMITM-DVI adapter, not included) by up to 120m (395 ft) for full HD video and 200m(660 ft) for HD video, over single Cat6 cable. An ideal solution for sharing a display or projector over an LAN network so that even the video source lacking digital video output can still connect, It also works to extend IR signals from remote controls of the video source, perfect for controlling your video source from your video destination.
2.0 Features
* Features 3 extension mode: simple mode, allocation mode and infinite mode.
* Following TCP/IP standard
* Supports resolution up to 480p/720p/1080i/1080p
* Supports max video bandwidth to 1.65Gbps/165MHz per channel (4.95Gbps all channels).
* CAT5e/6 cable follows the standard of IEEE-568B
* Supports 3D
* Features IR return which enables you to control the video source from your video destination.
3.0 Specifications
Signal Input |
HDMI Signal |
Input Video Signal |
0.5-1.0volts/p-p |
Output Video |
HDMI Signal |
Transmission Distance (via Cat6 cable) |
120m@1080p |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
Max up to 1.65Gbps/165MHz |
Interlaced (50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0℃ to +50℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply |
5V DC @2A |
Power Consumption (Max) |
8W |
Extender Unit Cert. |
FCC, CE, RoHS |
Power Supply Cert |
CE,FCC, RoHS |
Power Adapter |
US,UK,EU,AUS Standard etc |
User Manual |
English Version |
4.0 Package & Shipping Contents
1)Main Unit - Sender x1
2)Main Unit - Receiver x1
3)User Manual x1
4)IR Extender-Sender x1
5)IR Extender-Receiver x1
6)5V DC Power Adapter x2
7)Mounting Ear x 4
5.0 Company Imformation
About us :
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design, owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection, such as HDMI cable, switcher, splitter, matrix converter and extender.
In addition, Protech provides the prime quality & reasonable price for all our customers, and supports clients with high technology product development, experienced OEM, ODM production and highly effective global logistics. "To serve customers with good quality & price of the world competition" is our winning policy.
Office & Factory Outlook:
Flow of Production :
OEM & ODM:
Certification:
Exhibition:
6.0 Conatct US
