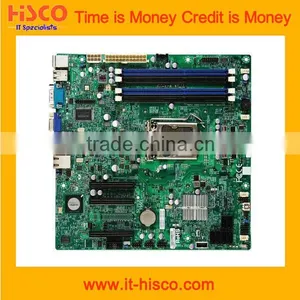

MBD-X9SCL-F-B LGA1155 Intel C202 Chipset MicroATX Motherboard For 6E9488 Supermicro

Name: MBD-X9SCL-F-B LGA1155 Intel C202 Chipset MicroATX Motherboard For 6E9488 Supermicro
Brand: for supermicro
SKU: 124419833

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Server

Chipset Manufacturer:

Intel

Shenzhen Hisco Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Server

Chipset Manufacturer Intel

Socket Type Other, LGA1155

Form Factor ATX

Memory Type DDR3

Graphics Card Type Integrated

Hard Drive Interface SCSI, Other, SCSI, VGA

Brand Name for supermicro

Model Number MBD-X9SCL-F-B

Place of Origin China

Specifications

1.MBD-X9SCL-F-B
2.Good price from China General Agency
3.Full new and original
4.It is in stock
5.Global Coverage

Specifications


Processor/Cache

CPU	Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *** * Socket H2 (LGA 1155)


System Memory

Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C202 PCH chipset
SATA	6x SATA2 (3Gb/s) w/ RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® 82579LM and 82574L, 2x Gigabit LAN ports Virtual Machine Device Queues High efficient I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA	BMC integrated Matrox G200
Super I/O	Nuvoton NCT6776F


Input / Output

Serial ATA	6 SATA 2.0 ports 6 SATA hard drives supported
LAN	2x Gigabit Ethernet LAN ports: Intel® 82579LM and Intel® 82574L 1x RJ45 Dedicated IPMI LAN port
USB	9x USB 2.0 ports total (2x rear + 6x via header + 1x type A)
VGA	1x VGA port
Serial Port / Header	2x Fast UART 16550 serial port (one header and one rear port)
DOM	1x DOM (Disk on Module) power connector
TPM	1x TPM 1.2 20-pin Header

Chassis ( Optimized for X9SCL-F )

1U Chassis	CSE-113MTQ-330CB CSE-113MTQ-R400CB CSE-512F-350B CSE-512F-441B CSE-811TQ-R441B CSE-813MTQ-350C CSE-813MTQ-441CB CSE-813MTQ-R400CB
Important Chassis Notes	To support the new generation Intel® Xeon® processor-based motherboards, a Revision K chassis is recommended for most models. Please talk to your sales representative or follow the link for details.


Expansion Slots

PCI-Express	2 (x8) PCI-E 3.0 in x8 slots*** 1 (x4) PCI-E 2.0 in x8 slots


System BIOS

BIOS Type	32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI (SMBIOS) 2.7 ACPI 4.0 PCI 2.3 USB Keyboard support


Management

Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on
